Erico
ERICO BC32MSM BC-MSM CONDUIT TO BEAM CLAMP SIDE MOUNT 2INCH EMT 2INCH RIGID/PIPE 0.5INCH MAX (12.7 MM MAX) FLANGE
SKU: #408564
Part: #BC32MSM
UPC: 782856198321
Erico
ERICO BC32MSM BC-MSM CONDUIT TO BEAM CLAMP SIDE MOUNT 2INCH EMT 2INCH RIGID/PIPE 0.5INCH MAX (12.7 MM MAX) FLANGE
SKU: #408564
Part: #BC32MSM
UPC: 782856198321
Description

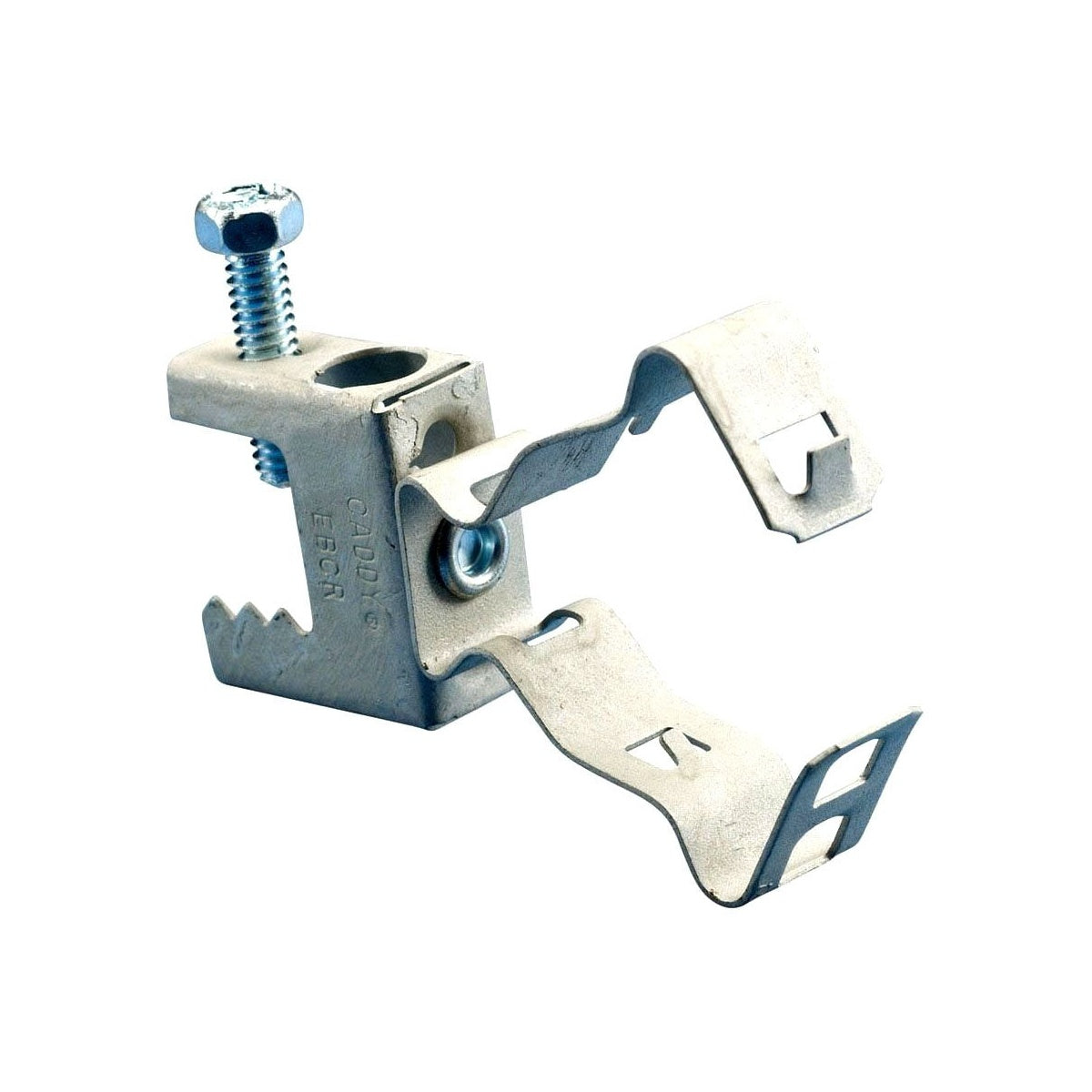

ERICO BC32MSM BC-MSM Conduit to Beam Clamp Side Mount 2 Inch EMT 2 Inch Rigid/Pipe Clamp
The ERICO BC32MSM BC-MSM conduit to beam clamp is designed for secure side-mount installation of 2 inch EMT and 2 inch rigid pipe conduit to beam flanges with a maximum flange thickness of 0.5 inch (12.7 mm). This clamp facilitates easy attachment without the need for offset bending of conduit and includes a conduit clip that rotates 360 degrees, making it suitable for electrical distributors and switchgear suppliers requiring reliable conduit fastening solutions.
Specifications
- Conduit Size Compatibility: 2 inch EMT, 2 inch rigid pipe
- Maximum Flange Thickness: 0.5 inch (12.7 mm)
- Material: Spring Steel
- Finish: nVent CADDY Armour
- Static Load Rating: 25 lb
- Product Weight: 0.0500 lb
- Manufacturer: Erico
- Manufacturer Part Number: BC32MSM
- UPC: 782856198321
Features
- Easy installation to beam flanges
- Eliminates offset bending of conduit
- Conduit clip rotates 360 degrees for flexible positioning
- Durable spring steel construction with protective nVent CADDY Armour finish
- Designed for side mount application on beams with up to 0.5 inch flange thickness
