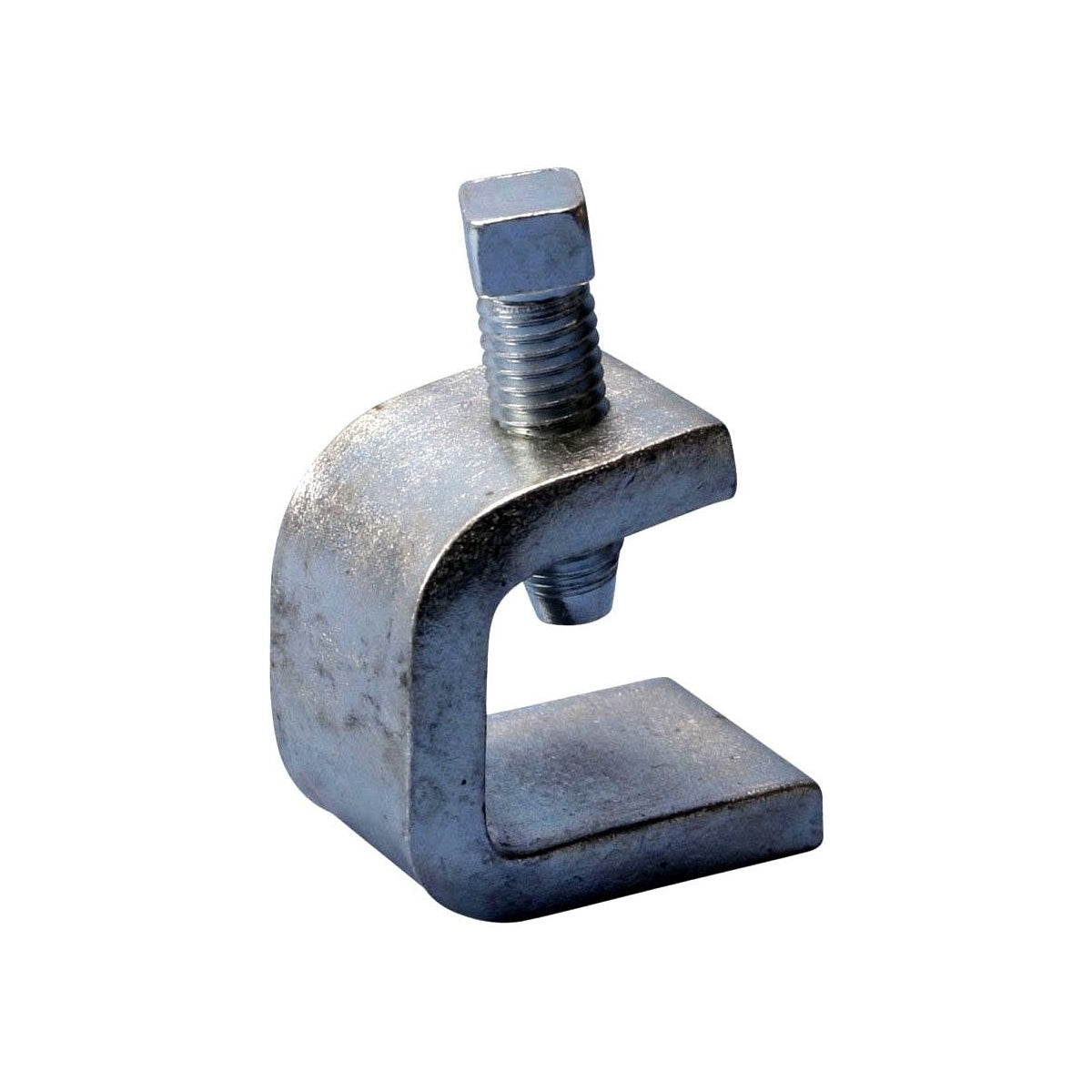

ERICO BC180037EG Internal Strut Beam Clamp with Bolt Steel 3/8 Inch Screw

The ERICO BC180037EG internal strut beam clamp is designed for securely clamping the back of a strut channel to a beam. This component is suitable for electrical distributors and lighting solutions requiring reliable mechanical fastening within wire and cable management or switchgear assemblies. The clamp includes a hex bolt for fastening and is intended for installation in pairs to ensure stability and load capacity.

Specifications

• Material: Steel
• Finish: Electrogalvanized
• Flange Thickness (max): 1 inch
• Width: 1 1/4 inches
• Screw Diameter: 3/8 inch
• Static Load Capacity: 660 lb (based on one pair)

Features

• U-shaped clip for clamping the back of strut channel to a beam
• Hex bolt included for secure fastening
• Requires installation in pairs for optimal performance
