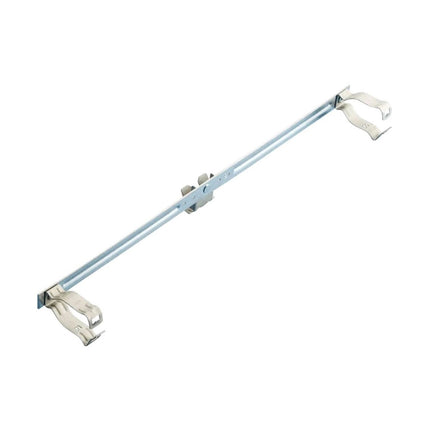

ERICO 812MB1824 B18-EM Box/Conduit Hanger with Flange Clip 1/2 Inch 3/4 Inch EMT

The ERICO 812MB1824 B18-EM Box/Conduit Hanger with Flange Clip is designed to provide reliable support for electrical boxes and conduit from beam flanges. This product is suitable for electrical distributors and switchgear suppliers seeking efficient mounting solutions that eliminate the need for offset bending conduit. It supports 1/2 inch and 3/4 inch EMT conduit with flange clip sizes ranging from 1/8 inch to 1/4 inch (3.2 to 6.4 mm), making it compatible with various wire and cable installations.

Specifications

• Manufacturer Part #: 812MB1824
• Conduit Size: 1/2", 3/4" EMT
• Flange Clip Size: 1/8"–1/4" (3.2–6.4 mm)
• Material: Spring Steel
• Finish: nVent CADDY Armour
• Product Weight: 0.1900 lbs
• UPC: 782856520030

Features

• Provides one assembly support for electrical box and/or conduit from beam flanges
• Eliminates the need for offset bending conduit
• Reduces drop wires by 66% in rod/wire applications
• NEC® and CEC compliant for electrical safety standards
