Description

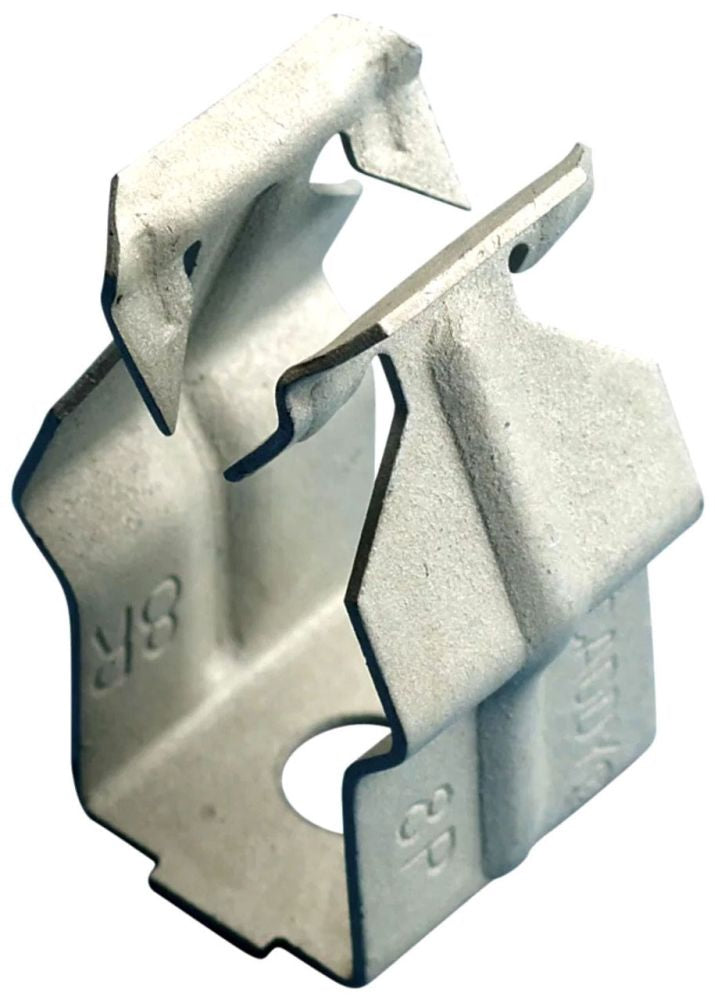

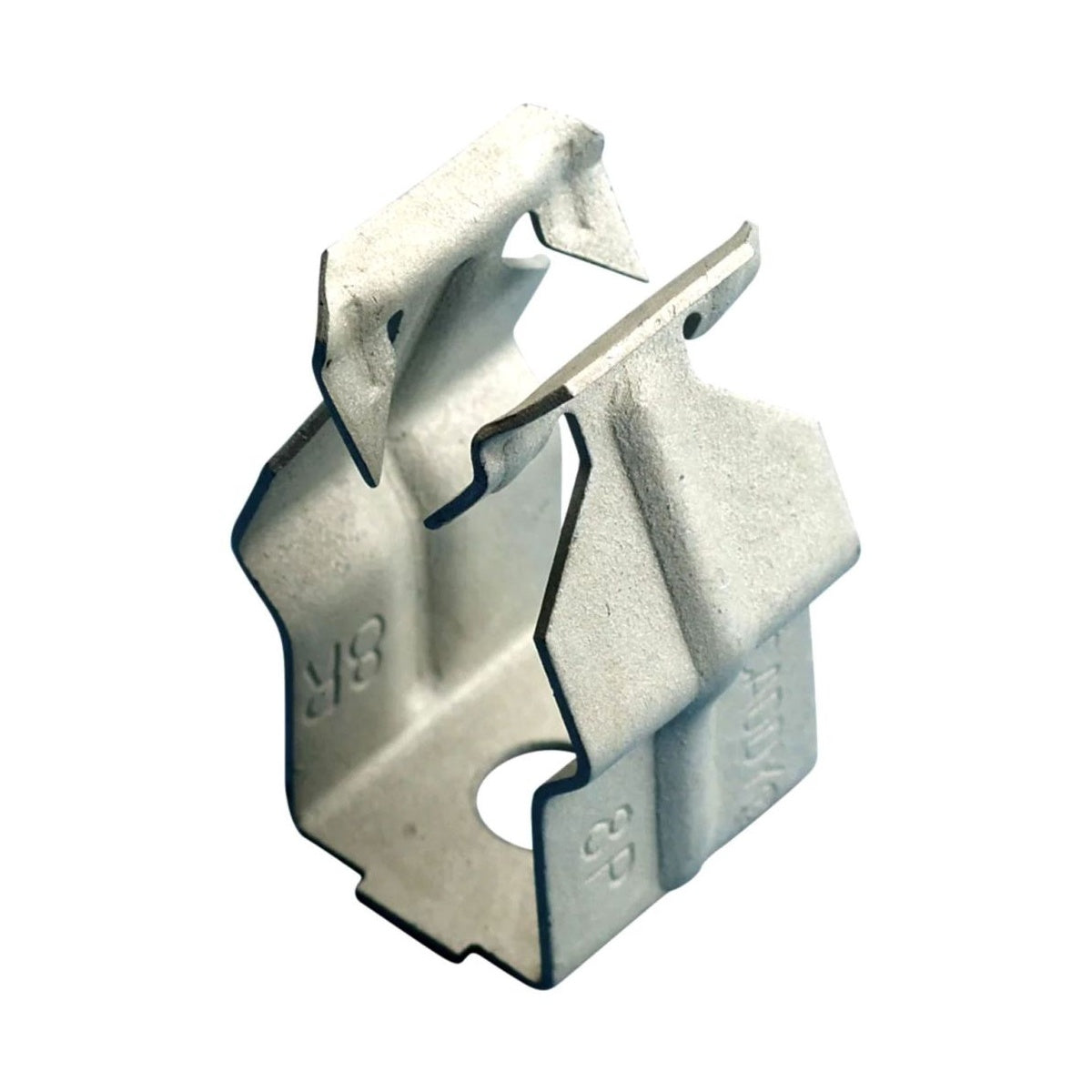

ERICO 16P4I Push In Conduit Clamp 1 Inch EMT
The ERICO 16P4I push-in conduit clamp is designed for secure and efficient installation of 1-inch EMT conduit. It facilitates push-in conduit mounting, eliminating the need for offset bending and supporting both vertical and horizontal applications. This product is suitable for electrical distributors and switchgear suppliers requiring reliable conduit fastening solutions in wire and cable management systems.
Specifications
- Conduit Size: 1 inch EMT
- Conduit Outer Diameter Range: 1.181 inch minimum to 1.378 inch maximum
- Nominal Conduit Diameter: 1 inch (30 mm min, 35 mm max, 25.4 mm nominal)
- Mounting Hole Diameter: 1/4 inch (6.4 mm), threaded
- Material: Spring Steel
- Finish: nVent CADDY Armour
- Load Ratings: F1 - 25 lb, F2 - 15 lb
- Product Weight: 0.0200 lb
- UPC: 782856703662
Features
- Push-in installation simplifies conduit attachment without offset bending
- Compatible with vertical and horizontal conduit runs
- Threaded mounting hole for secure attachment
- Durable spring steel construction with corrosion-resistant finish
- Supports reliable wire and cable management in electrical installations
