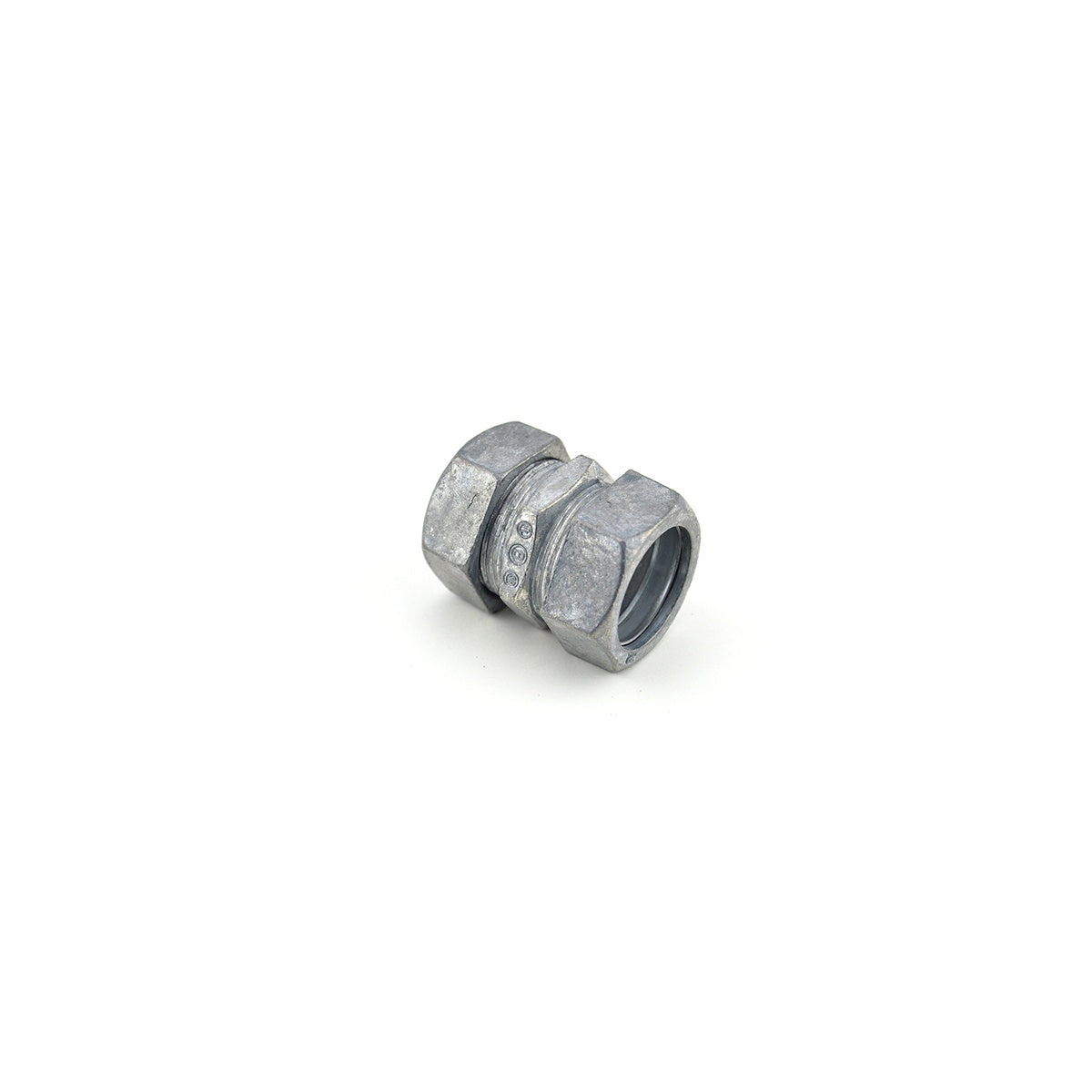

EMT Screw-on Compression Coupling 3/4", Zinc, Concrete Tight

The Bridgeport EMT Screw-on Compression Coupling 3/4" is designed to join two lengths of Steel or Aluminum Electrical Metallic Tubing (EMT). This zinc die-cast fitting provides a concrete-tight seal to prevent the ingress of concrete aggregate into the raceway, making it suitable for use in concrete environments. It is a reliable component for electrical distributors and lighting solutions providers requiring durable wire and cable conduit connections and is compatible with applications involving switchgear installations.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 261-DC
• Material: Zinc Die Cast
• Finish: Ball Burnished
• Size: 3/4"
• Length: 1.62 in
• Width: 1.44 in
• Product Weight: 0.1596 lb
• Application: Used to join two lengths of Steel EMT; concrete-tight 2" thru 4" suitable for steel and aluminum EMT
• Standards: Meets NEMA FB-1 and UL 514B
• Country of Origin: United States
• Made in USA: Yes

Features

• Concrete-tight seal prevents concrete aggregate entry into conduit
• Die-cast zinc body provides corrosion resistance for long-term durability
• Screw-on compression design ensures secure and reliable conduit connections
• Compatible with both steel and aluminum EMT conduit

Downloads & Links

• Spec Sheet
