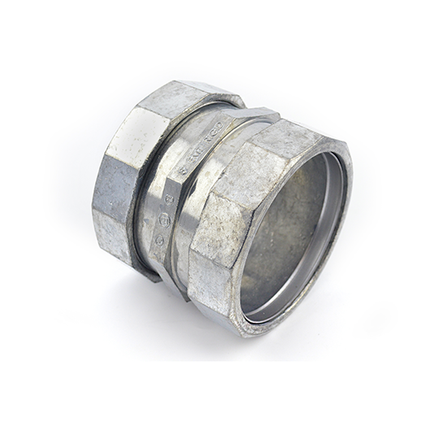

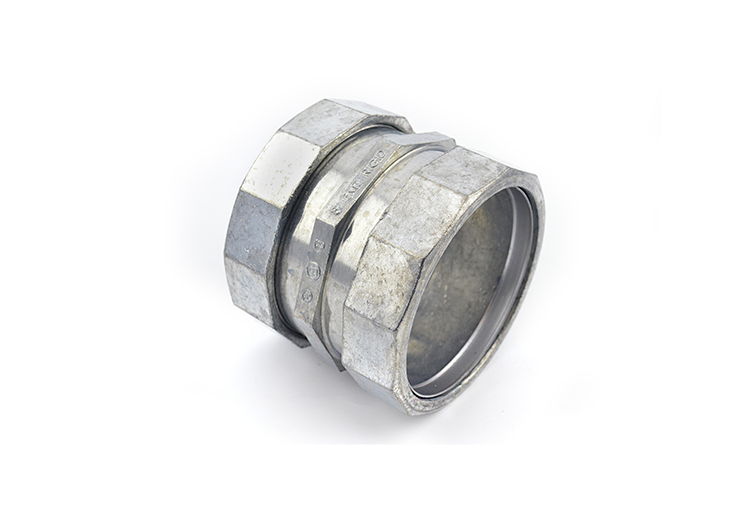

EMT Or Rigid Screw-on Compression Coupling 3", Zinc - Compression Coupling for EMT and Rigid Conduit

The Bridgeport 267-DC 3" EMT Or Rigid Zinc Screw-on Compression Coupling is designed to join two lengths of EMT or rigid conduit securely. Suitable for electrical distributors and switchgear suppliers, this fitting provides a concrete-tight seal to prevent concrete aggregate intrusion, ensuring reliable conduit connections in lighting solutions, wire and cable installations, and industrial electrical applications. It is compatible with steel and aluminum EMT as well as steel and aluminum rigid conduit.

Specifications

• Application: Used to join two lengths of Steel EMT. Concrete-tight 2" thru 4" suitable for steel and aluminum EMT. 2-1/2" through 4" also listed for use with Steel and Aluminum Rigid Conduit.
• Material: Zinc Die Cast
• Finish: Ball Burnished
• Length: 4.25 in
• Width: 4 in
• Product Weight: 2.20825 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 267-DC
• Certifications: Meets NEMA Standard FB-1 and UL Standard UL-514B
• Country of Origin: United States
• Made in USA: Yes

Features

• Die-cast zinc body provides corrosion resistance for long-term durability.
• Screw-on compression design ensures secure, stable connections between conduit lengths.
• Concrete-tight seal prevents ingress of concrete aggregate into the raceway.
• Compatible with both steel and aluminum EMT and rigid conduit.
• UL Listed and CSA Listed for concrete-tight and raintight use in Canada.

Downloads & Links

• Spec Sheet
