EMT Insulating Bushing, Press Fit, Trade Size 3/4" - Cable Protection

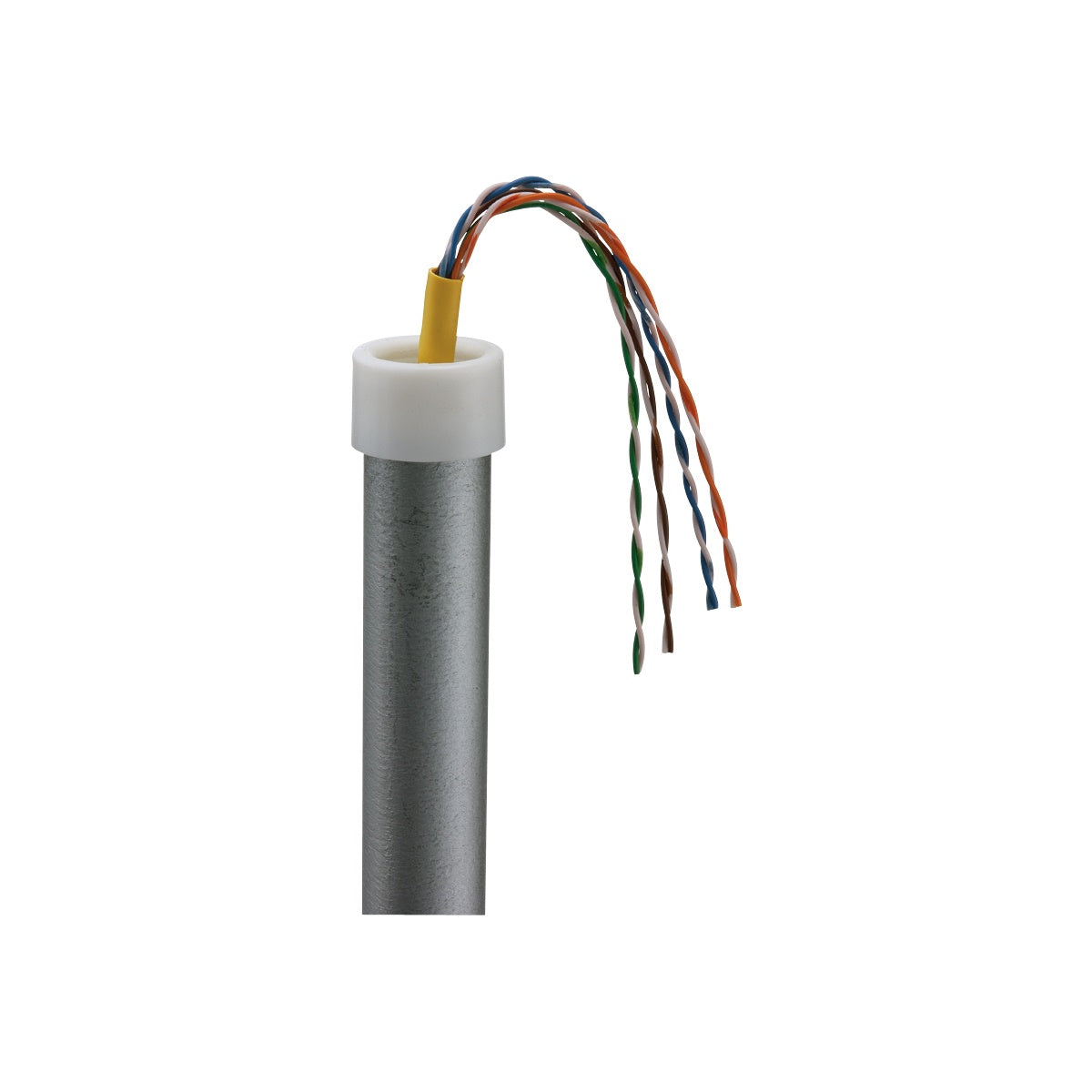

The EMT Insulating Bushing by Arlington Industries is a non-metallic, press-fit fitting designed to protect cables from abrasion when installed in EMT conduit. Suitable for electrical distributors and lighting solutions providers, this bushing ensures secure cable protection during installation and use, including applications with power, data, cable TV, audio/video, phone/modem, and alarm/security systems. It meets 2008 NEC requirements for conduit protection and environmental air handling spaces, making it a reliable component for wire and cable management and switchgear supply.

Specifications

• Manufacturer: Arlington Industries
• Manufacturer Part #: EMT75
• Trade Size: 3/4"
• Material: Plastic
• Color: White
• Product Weight: 0.66 lbs
• UPC: 018997122056
• Meets 2008 NEC requirements for 300-15(c) protection
• Listed for use in environmental air handling spaces per 2008 NEC 300-22(c)

Features

• Non-metallic insulating bushing protects cable from abrasion
• Press fits firmly onto EMT conduit for secure hold during cable pulling
• Compatible with EMT conduit sizes from 1/2" to 4"
• Can substitute for costly fittings when used solely for cable protection
• Fast and easy installation with extra-firm hold when tapped onto conduit

Downloads & Links

• Specification Sheet
• EMT75 Line Drawing
• Catalog Page
