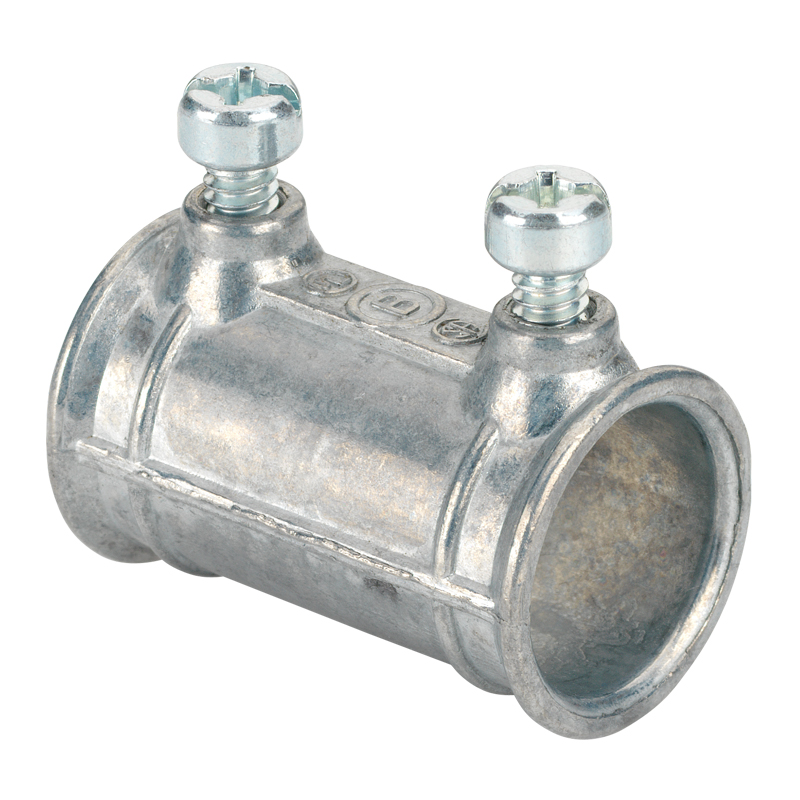

EMT Coupling 1", Zinc, Concrete Tight with Tri-Drive Screws – Electrical Conduit Fitting

The Bridgeport 242-DC 1" EMT Zinc Coupling is designed to join two lengths of electrical metallic tubing (EMT) securely. This zinc die-cast coupling provides corrosion resistance and a durable connection suitable for electrical distributors and switchgear suppliers. When taped, it creates a concrete-tight seal, preventing concrete aggregate intrusion into the raceway. Compatible with both aluminum and steel EMT, it is ideal for use in lighting solutions, wire and cable installations, and other electrical conduit applications.

Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished
• Size: 1 inch
• Length: 2.06 in
• Width: 1.44 in
• Product Weight: 0.1280 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 242-DC
• Country of Origin: United States
• Made in USA: Yes
• Standards: Meets NEMA FB-1 and UL 514B

Features

• Concrete-tight seal when taped, suitable for use in concrete-embedded applications
• Equipped with tri-drive slot/Phillips/Robertson head screws for secure fastening
• Compatible with aluminum and steel EMT conduit
• Corrosion-resistant zinc die-cast body for long-term durability
• Used to join two lengths of EMT conduit from 1/2" through 1 1/4" concrete-tight and 1 1/2" through 4" when taped

Downloads & Links

• Spec Sheet
