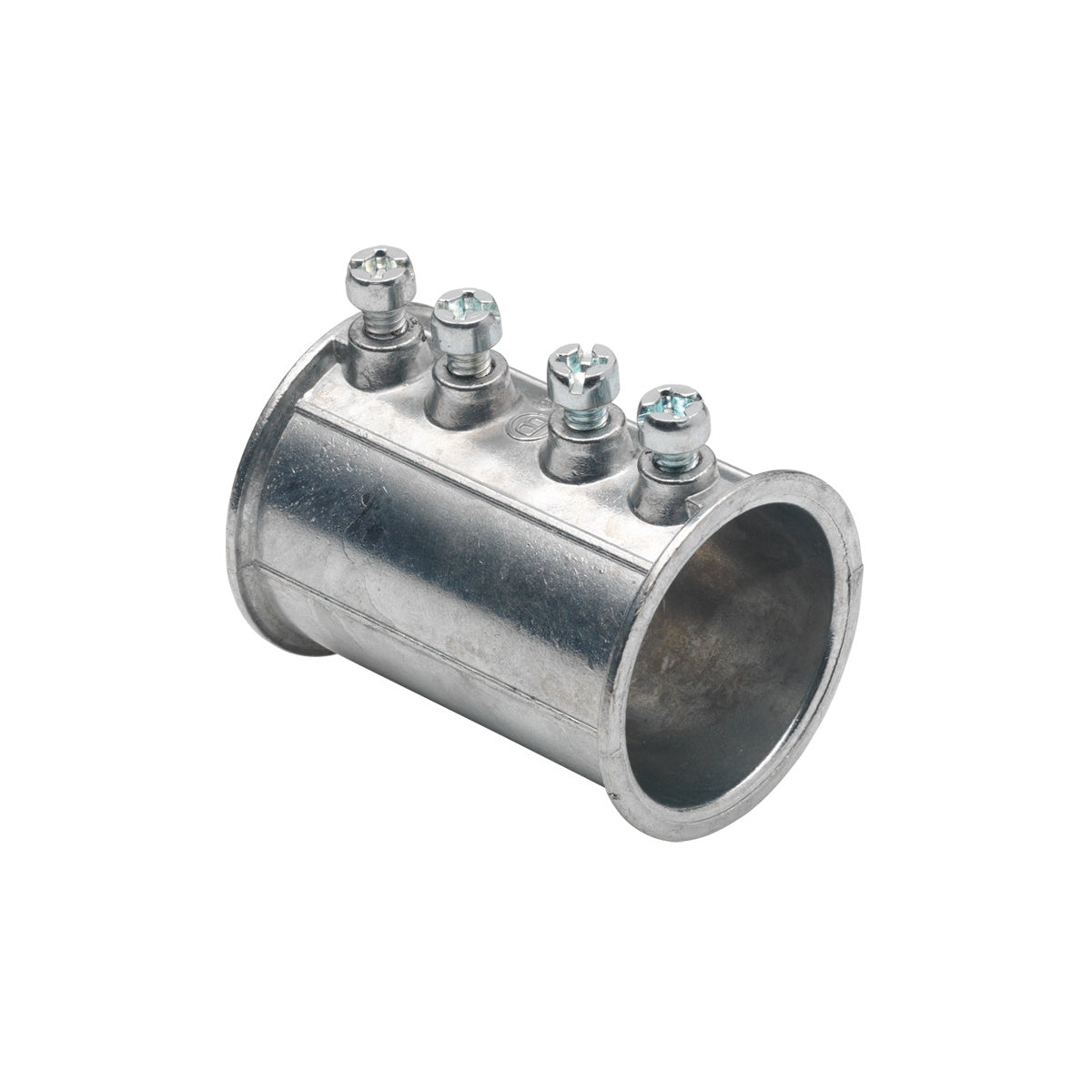

EMT Coupling 1-1/4", Zinc, Concrete Tight with Tri-Drive Screws – Electrical Conduit Fitting

The Bridgeport 243-DC EMT Coupling is designed to join two lengths of Electrical Metallic Tubing (EMT) conduit, providing a secure and concrete-tight connection. Suitable for use with both aluminum and steel EMT, this zinc die-cast coupling ensures corrosion resistance and long-term durability. It is commonly used by electrical distributors and switchgear suppliers as part of lighting solutions and wire and cable installations in commercial and industrial settings.

Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished
• Size: 1-1/4"
• Length: 2.5 in
• Width: 1.88 in
• Weight: 0.2775 lbs
• Concrete-Tight Seal: 1/2" through 1 1/4" concrete-tight, 1 1/2" through 4" concrete-tight when taped
• Head Screws: Tri-Drive slot/Phillips/Robertson
• Compliance: Meets NEMA Standard FB-1 and UL Standard UL-514B
• Country of Origin: United States
• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 243-DC

Features

• Die-cast zinc body offers corrosion resistance for long service life
• Tri-drive screws ensure a secure connection between conduit lengths
• Concrete-tight design prevents ingress of concrete aggregate into raceway when taped
• Compatible with both aluminum and steel EMT conduit
• Made in the USA, ensuring quality manufacturing standards

Downloads & Links

• Spec Sheet
