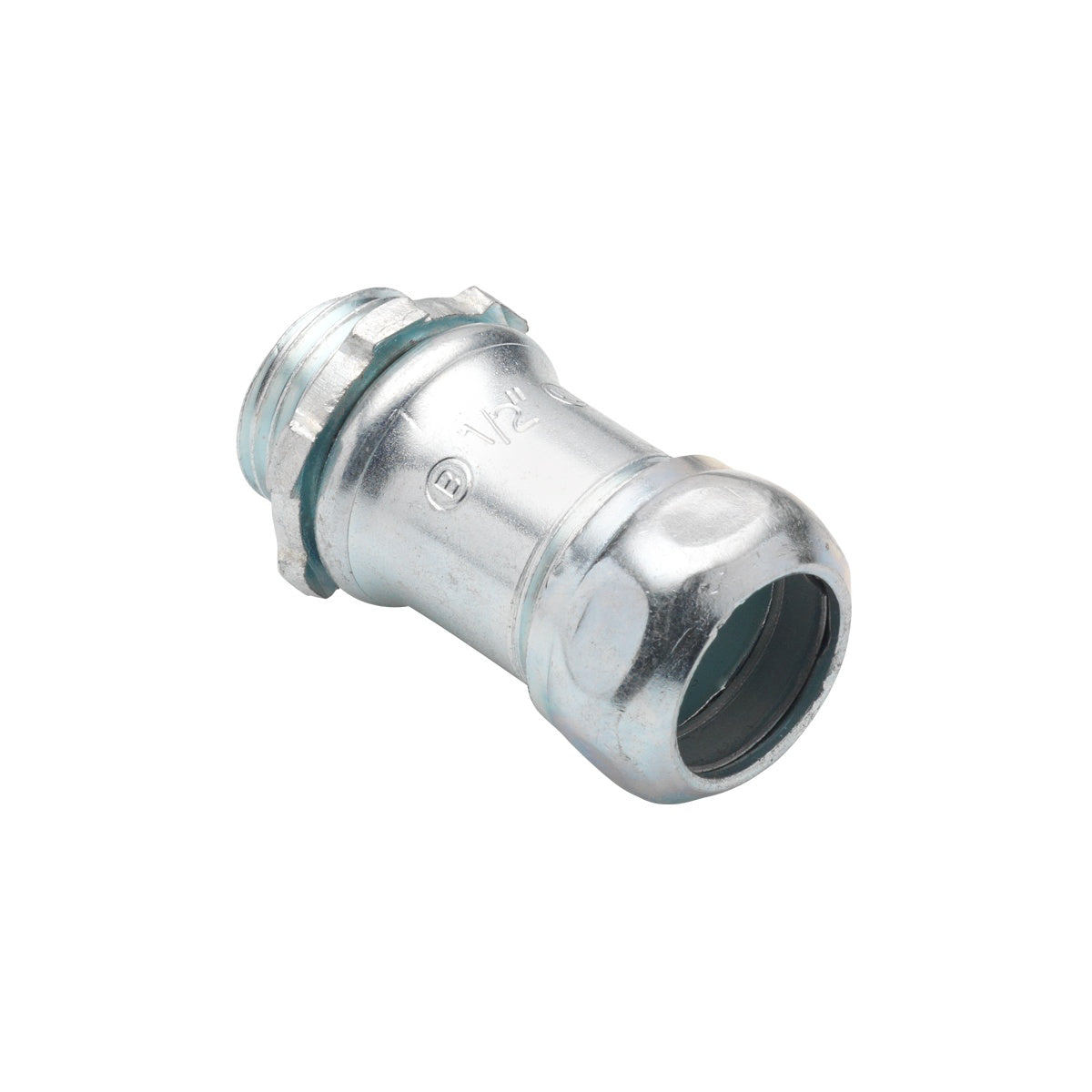

EMT Compression Connector 4", Zinc Plated Steel – Electrical Metallic Tubing Connector

The EMT Compression Connector 4" by Bridgeport Fittings is designed for joining electrical metallic tubing (EMT) to boxes or enclosures, providing a concrete-tight seal. This connector is suitable for use by electrical distributors and switchgear suppliers requiring durable and reliable fittings for wire and cable installations. Its zinc electroplated steel construction ensures corrosion resistance and long-lasting performance in harsh environments. The connector features a compression ring for quick installation and a locknut to secure the connection to box knockouts.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 259
• Material: Steel
• Finish: Zinc Electroplated
• Length: 5.125 in
• Width: 4.71875 in
• Insulation: None
• Country of Origin: India
• Product Weight: 3.1165 lbs
• Order Minimum: 1
• UL Listed File No.: E24001

Features

• Compression type connector for secure EMT to box or enclosure connection
• Concrete-tight seal suitable for harsh environments
• Rugged zinc electroplated steel construction for corrosion resistance
• Quick installation using compression ring and locknut
• Meets UL 514B bonding and grounding requirements

Downloads & Links

• Spec Sheet
