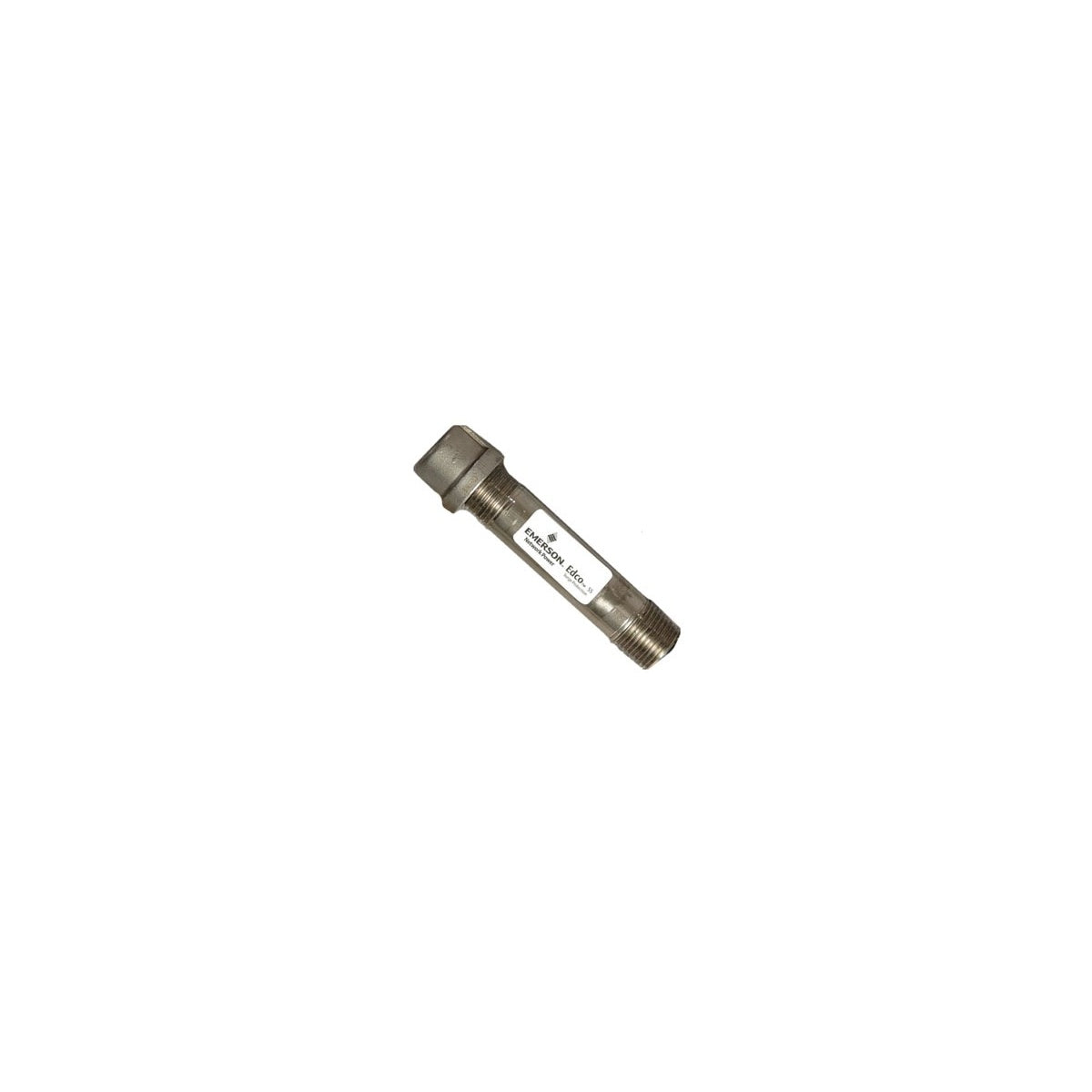

EMERSON/AIR COMFORT SS64-036-2 Transmitter Surge Suppressor

The EMERSON/AIR COMFORT SS64-036-2 transmitter is a surge suppressor designed for protecting low-voltage signal lines in industrial and wastewater applications. This device utilizes a two-pair (four-wire) module with three-stage hybrid technology, combining gas tubes and silicon avalanche components to address over-voltage transients effectively. Encapsulated in a stainless steel pipe nipple, it is suitable for use in severe environments, making it a reliable component for electrical distributors and switchgear suppliers managing signal line protection.

Specifications

• Application: Two-pair (four-wire) surge suppressor with three-stage hybrid technology
• Amperage Rating: 0.15 AMPS
• Frequency Rating: 0 to 20 MHz
• Connection: Terminal block with compression lugs
• Mounting: Encapsulated in stainless steel pipe nipple
• Product Weight: 0.4 lbs
• Manufacturer: Emerson/Air Comfort
• Manufacturer Part #: SS64-036-2

Features

• Transient protection for low-voltage signal lines
• Sneak and fault current protection via solid-state resettable fuses (PTCs)
• Differential and common mode protection
• Automatic recovery after transient events
• Encapsulation in stainless steel pipe nipple for harsh environment durability
• Protection designed for one signal pair (two wires)

Downloads & Links

• Spec Sheet
