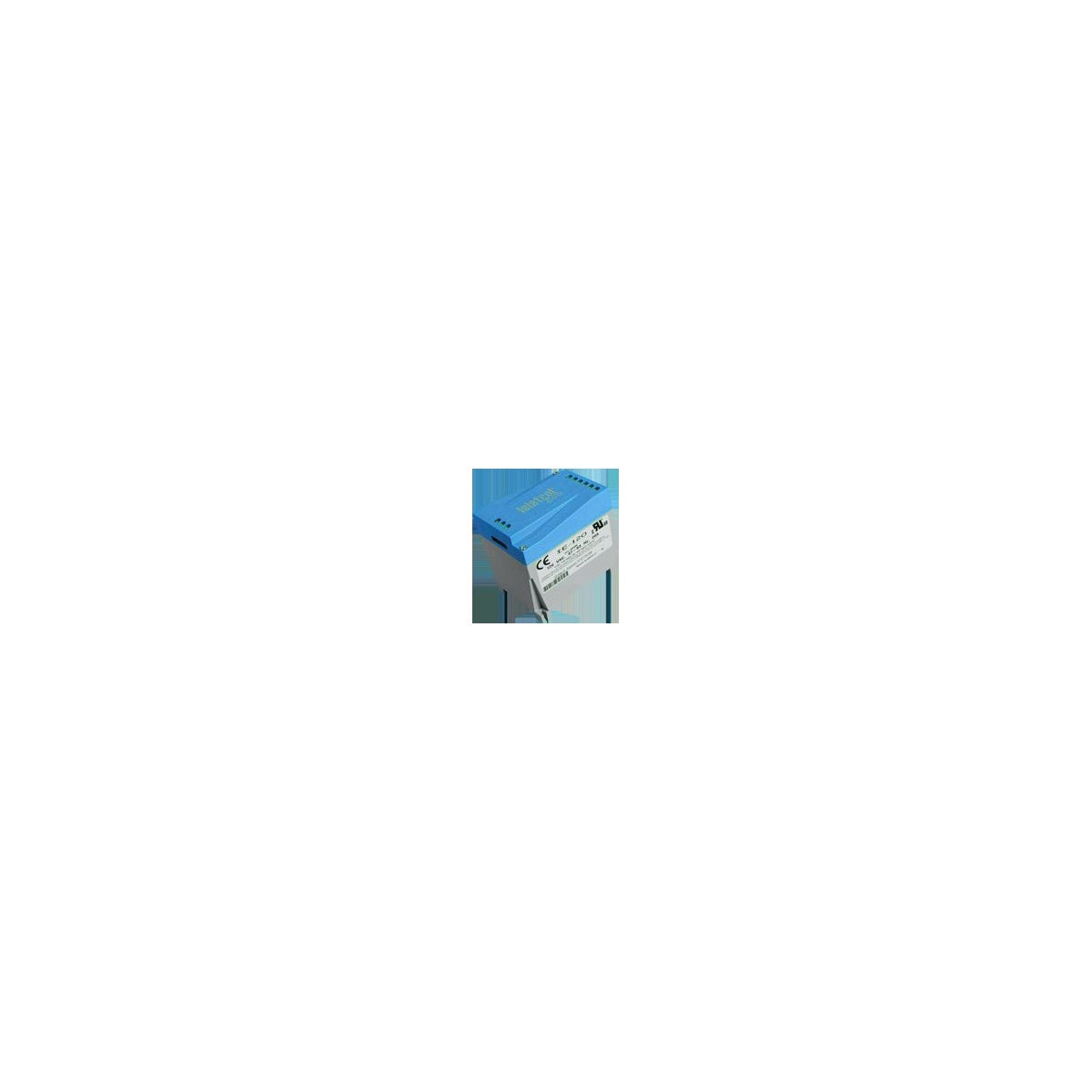

EMERSON/AIR COMFORT IE-205 ACTIVE TRK FILTER 1PH 5A 240V DIN - Active Tracking Filter

The Emerson/Air Comfort IE-205 is a single-phase, 5 Amp, 240 Volt Active Tracking Filter designed for critical industrial loads drawing up to 20 Amps of continuous current. It is ideal for protecting microprocessor-based equipment such as industrial PLCs, OEM applications, and motion control systems. This product provides high-frequency noise filtering and surge suppression, suitable for electrical distributors and switchgear suppliers requiring reliable protection for sensitive wire and cable installations.

Specifications

• Application: Critical industrial loads drawing up to 20 Amps of continuous current, microprocessor-based products, including industrial PLCs, OEM applications, and motion control systems.
• Amperage Rating: 3 AMPS
• Frequency Rating: 47-63 Hz
• Connection: IEC 998 approved terminals
• Mounting: DIN/Flange
• Product Weight: 0.95 lbs
• Class: Category A Ringwave (6kV, 200 A, 100 kHz)
• Environmental Conditions: Humidity 0 to 95%
• Manufacturer: Emerson/Air Comfort
• Manufacturer Part Number: IE-205

Features

• Multi-staged design combining a unique hybrid clamping network with active tracking technology
• Surge current capacity of 45,000 Amps
• Transient protection in all modes: line to neutral, line to ground, and neutral to ground
• LED status indication and form C contact for remote monitoring
• DIN mountable enclosure for easy integration
• Compliant with ANSI/UL 1449 Third Edition Type 4, 1283; CUL recognized; CE certified
• 10 year warranty
