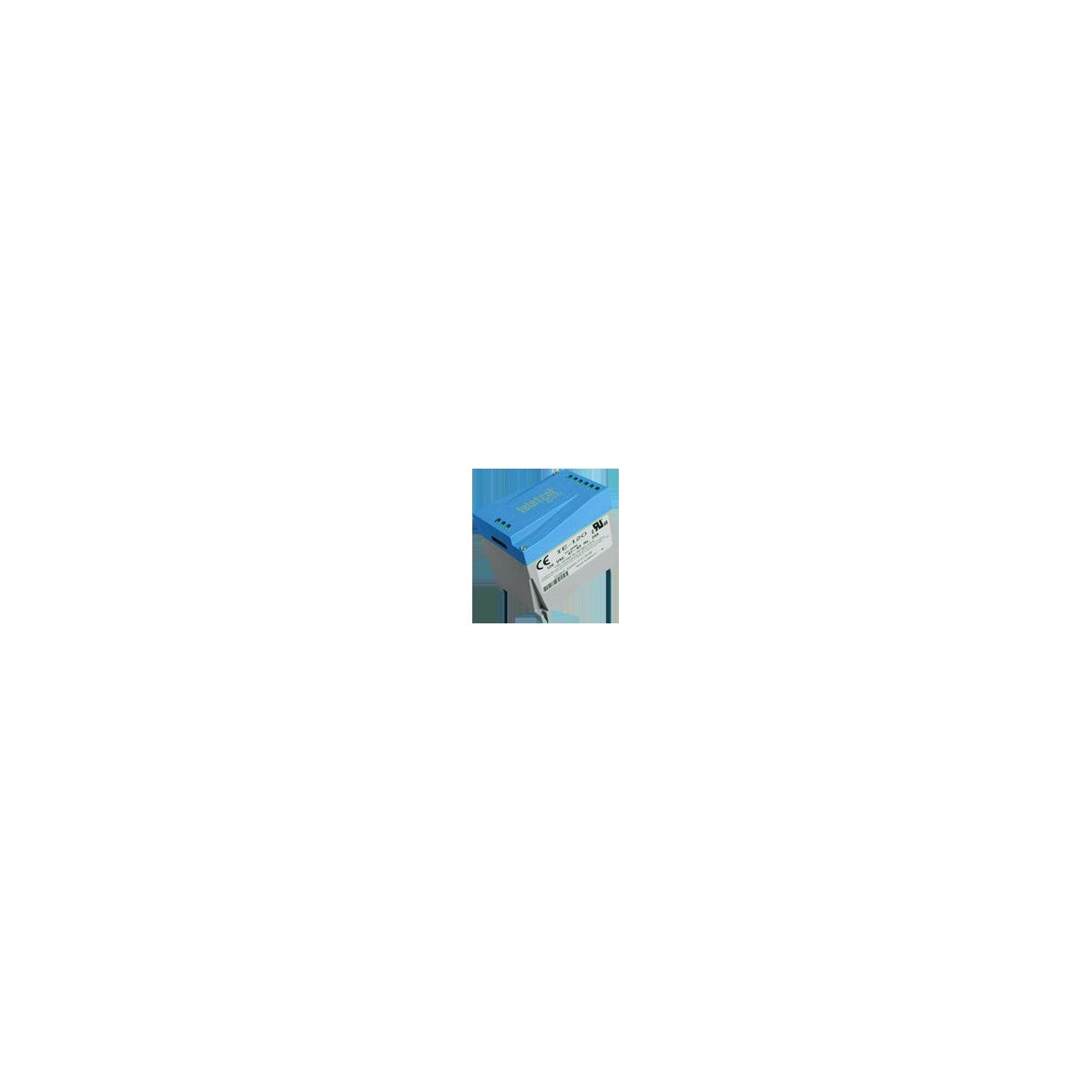

EMERSON/AIR COMFORT IE-203 ACTIVE TRK FILTER 1PH 3A 240V DIN - Active Tracking Filter

The EMERSON/AIR COMFORT IE-203 Active Tracking Filter is a high-frequency noise filter and surge suppressor designed for critical industrial loads drawing up to 20 Amps of continuous current. It is optimized for microprocessor-based products, including industrial PLCs, OEM applications, and motion control systems. This product is suitable for electrical distributors and switchgear suppliers requiring reliable surge protection and noise filtering in industrial environments.

Specifications

• Application: Critical industrial loads drawing up to 20 Amps of continuous current, microprocessor-based products, including industrial PLCs, OEM applications, and motion control systems.
• Amperage Rating: 20 AMPS
• Frequency Rating: 47-63 HZ
• Connection: IEC 998 approved terminals
• Mounting: DIN/Flange
• Class: Category A Ringwave (6kv, 200 A, 100 kHz)
• Environmental Conditions: Humidity 0 to 95%
• Product Weight: 0.95 lbs
• Manufacturer Name: Emerson/Air Comfort
• Manufacturer Part #: IE-203

Features

• Multi-staged design combining a unique hybrid clamping network with active tracking technology
• Surge current capacity of 45,000 Amps providing transient protection in all modes: line to neutral, line to ground, and neutral to ground
• LED status indication and Form C contact for remote indication of protection status
• DIN mountable enclosure for flexible installation
• Complies with ANSI/UL 1449 Third Edition Type 4, 1283; CUL recognized; CE certified
• Operating temperature range from -40¬∞C to +45¬∞C with linear derating to 60% at +70¬∞C
• 10-year limited warranty
