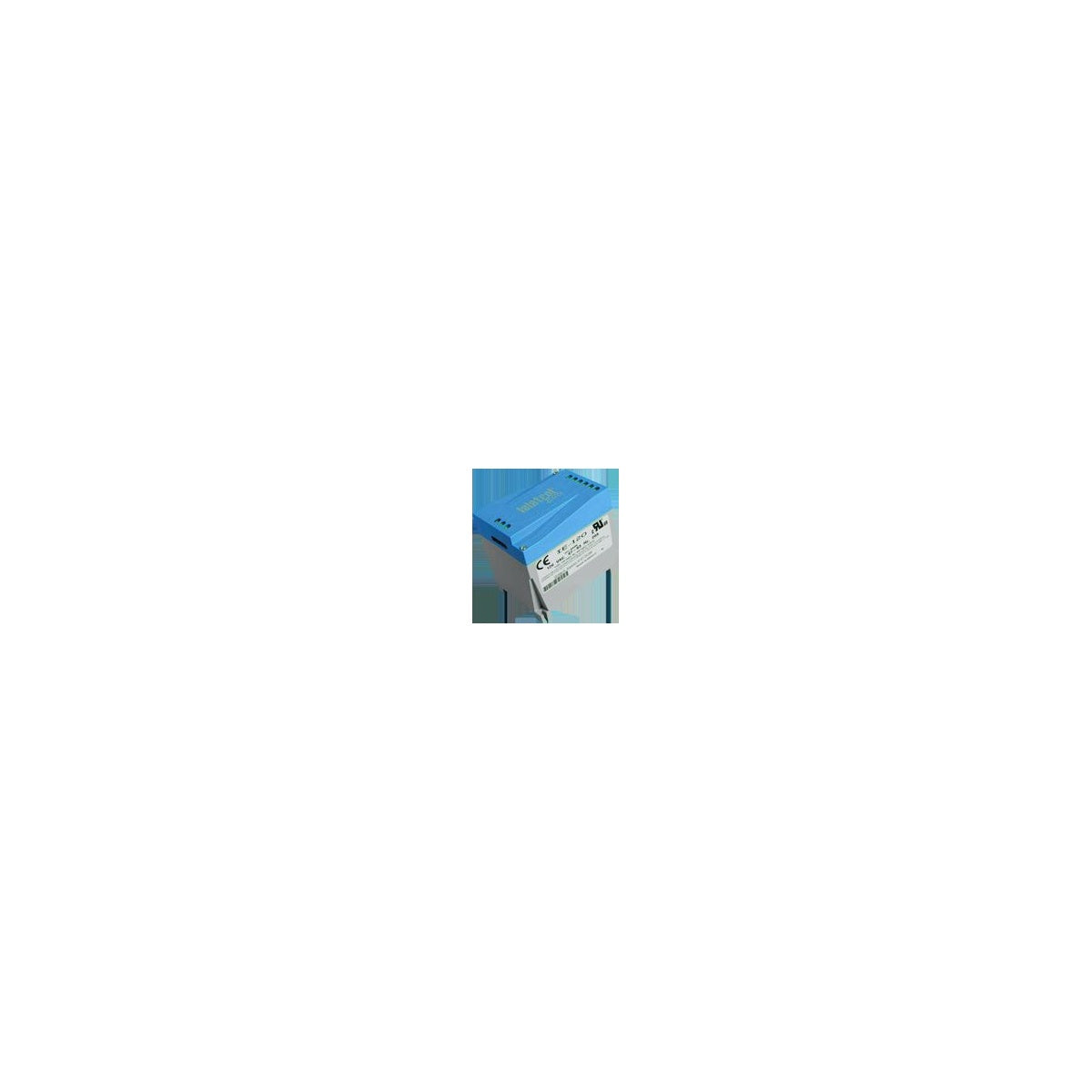

EMERSON/AIR COMFORT IE-103 Active Tracking Filter 1PH 3A 120V DIN - Surge Protection

The EMERSON/AIR COMFORT IE-103 is a high-frequency noise filter and surge suppressor designed for industrial or office equipment and computers operating in harsh environments. This active tracking filter is suitable for critical industrial loads drawing up to 7.5 Amps continuous current at 120V single phase. It is ideal for applications requiring reliable transient protection and noise reduction, including microprocessor-based products, PLCs, OEM applications, and motion control systems. This product is suitable for electrical distributors and switchgear suppliers seeking effective surge protection and filtering solutions.

Specifications

• Application: Industrial or office equipment, computers placed in harsh environments
• Amperage Rating: 7.5 AMPS
• Frequency Rating: 47-63 HZ
• Material: High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated
• Mounting: Flange Dimensions: 6.75 x 3.50 x 7.75 x 0.19 IN
• Connection: Barrier strip at input and output with wire leads at input and output
• Environmental Conditions: Humidity 0 to 95%
• Weight: 0.9 lbs
• Class: Category B Ringwave (6kv, 500 A, 100 kHz)
• Manufacturer: Emerson/Air Comfort
• Manufacturer Part #: IE-103

Features

• Multi-staged design combining a unique hybrid clamping network with active tracking technology
• Surge current capacity of 45,000 Amps protecting line to neutral, line to ground, and neutral to ground
• Transient protection in all modes for robust surge suppression
• DIN mountable enclosure for easy installation
• LED status indication and form C contact for remote monitoring
• Operates in ambient temperatures from -40¬∞C to +45¬∞C with linear derating to 60% at +70¬∞C
• Complies with ANSI/UL 1449 Third Edition Type 4, 1283, CUL recognized, and CE certified
• 10 year limited warranty against defects in material and workmanship
