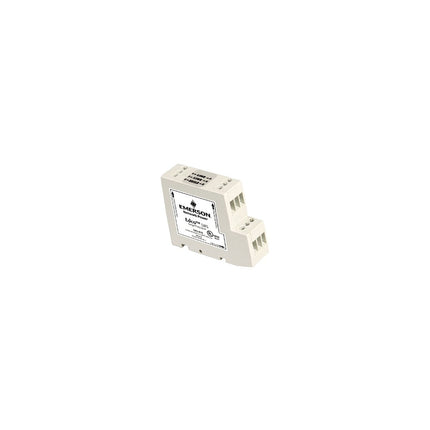

EMERSON/AIR COMFORT DRS-036 SPD MOD DIN RAIL 1PR 36VDC Surge Protection Device

The Emerson/Air Comfort DRS-036 is a DIN rail mountable surge suppression module designed for industrial machine control, process automation, conveying equipment, material handling, and packaging equipment. It provides low-voltage data surge protection with three-stage hybrid technology, making it suitable for electrical distributors and switchgear suppliers seeking reliable protection for wire and cable systems in industrial environments.

Specifications

• Application: Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment
• Amperage Rating: 3 x 0.9 or 2 x 1.3 AMP
• Frequency Rating: 50/60 Hz
• Material: Metal Housing
• Mounting: DIN Rail
• Connection: Screw Terminals
• Width: 3.34 in
• Product Weight: 0.1650 lbs
• Environmental Conditions: 90% RH Humidity Range
• Manufacturer Part #: DRS-036

Features

• Three-stage hybrid protection combining gas tubes and silicon avalanche components
• Sneak/fault current protection with resettable fuses (PTCs) for self-restoring surge suppression
• Low profile packaging suitable for compact DIN rail installations
• Easy installation on standard 35 mm DIN rail
• Fast response time of less than 1 nanosecond
• UL 497B listed for safety and compliance

Downloads & Links

• Spec Sheet
• Spec Sheet
