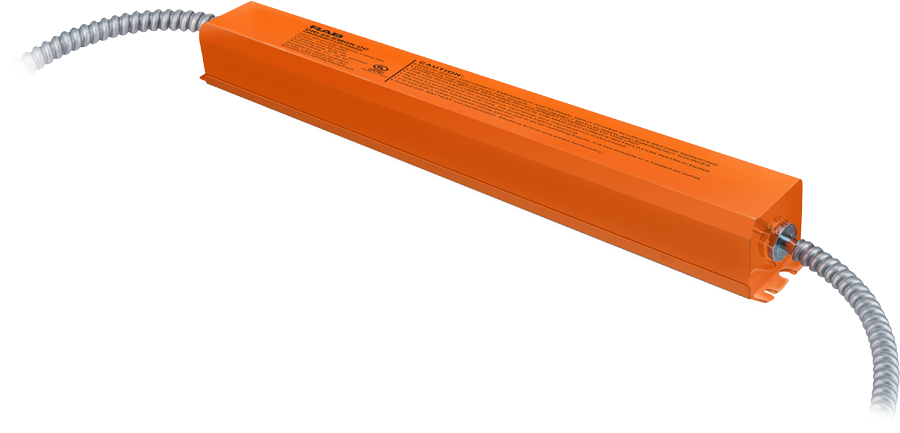

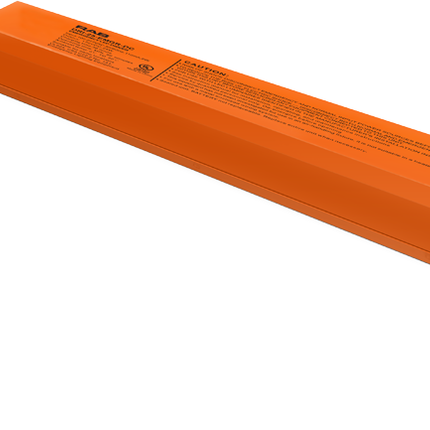

EMERGENCY DRIVER 100-277V 25W for Lighting Solutions

The EMERGENCY DRIVER 100-277V 25W by RAB is designed for LED lighting emergency backup, specifically for downlights. It serves as a reliable emergency power source, automatically switching to emergency mode during AC power failures to maintain illumination for a minimum of 90 minutes. Suitable for indoor or damp locations, this emergency driver supports electrical distributors and switchgear suppliers in providing compliant emergency lighting solutions.

Specifications

• Input Voltage: 100 volts
• Power: 25W
• Dimensions (L x W x H): 22.24 x 5.31 x 2.28 inches
• Weight: 3.3 lbs
• Construction Type: Sturdy Galvanized Steel
• Manufacturer: RAB
• Manufacturer Part #: DRI-25-EMGR-DC

Features

• Automatic switch to emergency mode during power failure, maintaining load illumination for at least 90 minutes
• Compatible with LED lamps and fixtures rated 100-277VAC
• Integral sealed lithium-ion battery, non-replaceable; unit replacement required when necessary
• Low-battery voltage disconnect resets automatically when AC power is restored
• Suitable for indoor or damp locations with ambient temperatures from 0ºC to 50ºC
• Mounting options include T-BAR bracket or straps for flexible installation
• Charging indicator light for easy status monitoring
• Compliance with UL924 emergency lighting standards

Downloads & Links

• Instructions
