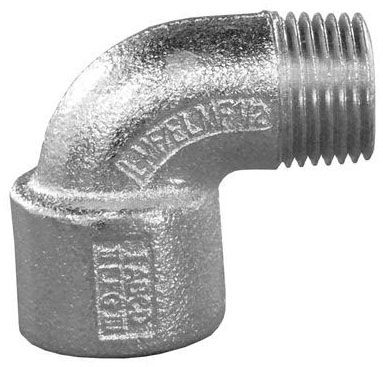

ELMFL9050, Explosionproof Conduit Elbow – Electrical Conduit Fitting

The ELMFL9050 Explosionproof Conduit Elbow is designed for use in hazardous locations requiring durable and reliable conduit fittings. This 90-degree long type conduit elbow is suitable for threaded IMC and rigid metal conduit systems, providing secure and explosionproof connections. It is ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers serving environments classified under NEC/CEC standards.

Specifications

• Trade Size: 1/2 Inch
• Bend Angle: 90 Degree
• Connection Type: Tapered Threaded Male/Female
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Approval: UL 886/1203, CSA C22.2
• Constructional Feature: Explosionproof/Dust Ignitionproof
• Enclosure Rating: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Applicable Standards: NEC/CEC
• Product Weight: 0.2700 lbs

Features

• Explosionproof and dust-ignitionproof design ensures safety in hazardous locations
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered NPT threads provide tight, rigid joints and ground continuity
• Zinc electroplated finish for corrosion resistance
• UL Listed and CSA Certified for compliance with NEC/CEC hazardous location requirements
