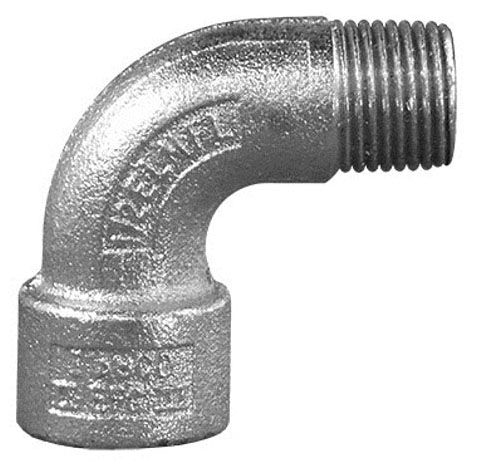

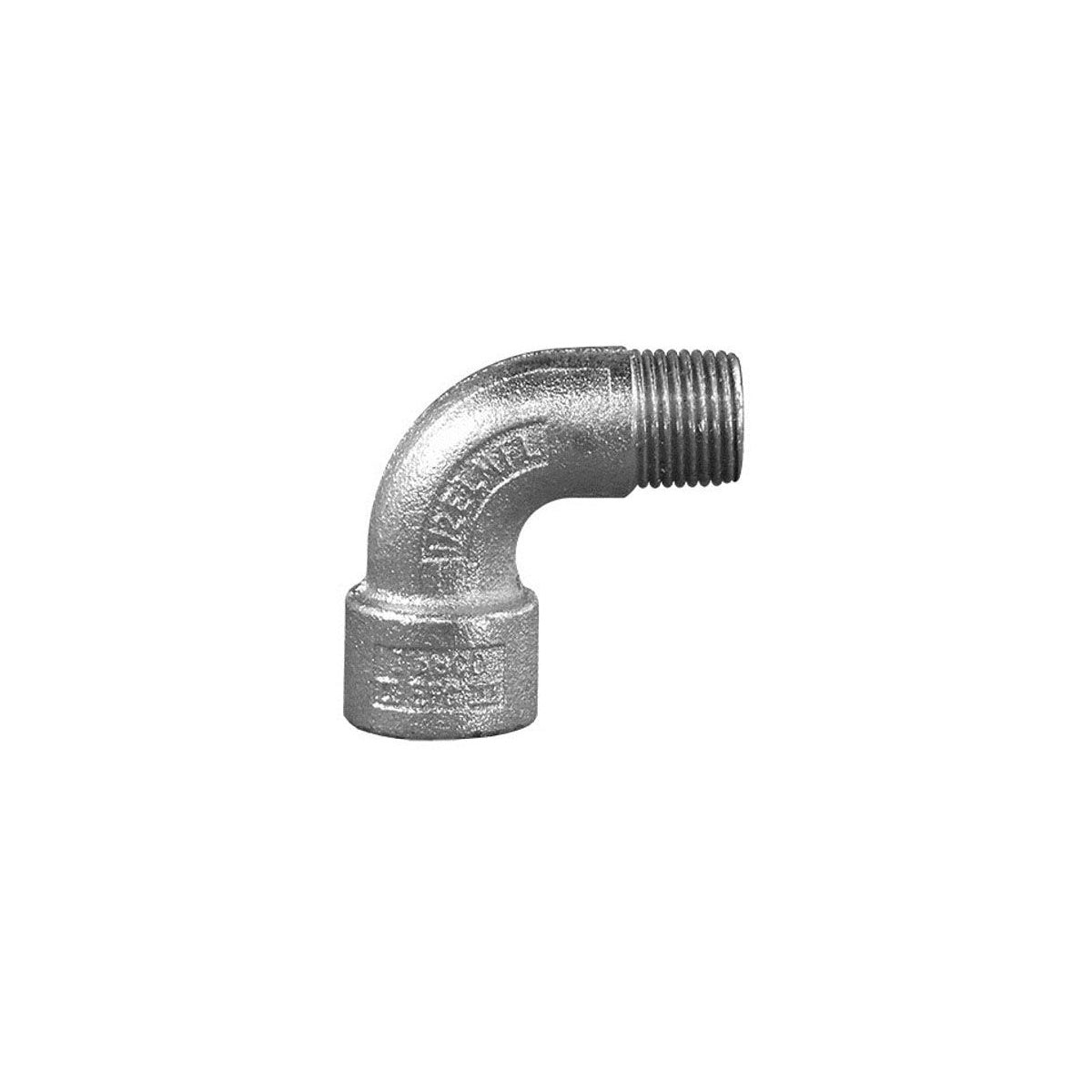

ELMFL90100 Explosionproof Conduit Elbow

The Appleton‚Ñ¢ ELMFL90100 Explosionproof Conduit Elbow is designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). It provides a 90-degree bend for conduit runs in hazardous locations, ensuring explosionproof and dust-ignitionproof protection. This fitting is suitable for electrical distributors and switchgear suppliers requiring reliable conduit solutions in industrial and hazardous environments. The integral bushing protects conductor insulation, maintaining system integrity and safety.

Specifications

• Material: Iron
• Finish: Zinc Electroplated
• Weight: 0.8050 lbs
• Manufacturer: Appleton
• Manufacturer Part #: ELMFL90100
• Type: 90¬∞ Male Elbow
• Thread: Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity

Features

• Explosionproof and dust-ignitionproof design
• Integral smooth, rounded bushing protects conductor insulation
• Compatible with threaded rigid metal conduit and IMC
• UL Listed and CSA Certified for hazardous locations (Class I, Division 1 and 2; Groups A, B, C, D; Class II, Groups E, F, G; Class III)
