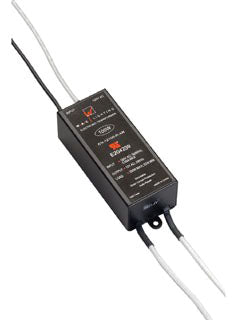

Electronic Transformer 120V Input 12V Output 100 Watt

This UL & cUL listed electronic transformer by WAC Lighting is designed for wiring multiple low voltage lighting fixtures. It provides a safe and reliable power solution with 120V input and 12V output, suitable for lighting applications requiring up to 100 watts. The transformer is ideal for electrical distributors and lighting solutions providers needing a compact, dimmable transformer that supports LED products with a low minimum load of 1W. Secondary wiring does not require conduit sheathed cable or clamp wiring, simplifying installation in residential or commercial environments.

Specifications

• Input Voltage: 120V
• Output Voltage: 12V
• Maximum Load: 100W
• Minimum Load: 1W
• Material: Aluminum
• Finish: Black
• Product Weight: 0.2100 lbs
• Dimmable: Yes, compatible with electronic low voltage dimmers

Features

• Class 2 enclosed electronic transformer with intrinsic safety, limiting current to 5 amps per compartment
• Low minimum load requirement allows use with LED lighting products
• Secondary wiring does not require conduit sheathed cable or clamp wiring techniques
• UL & cUL listed for safety and compliance
• Soft start delay to preserve bulb life (compatible with tungsten filament lamps)
• Electronic short circuit and overload protection with auto reset
