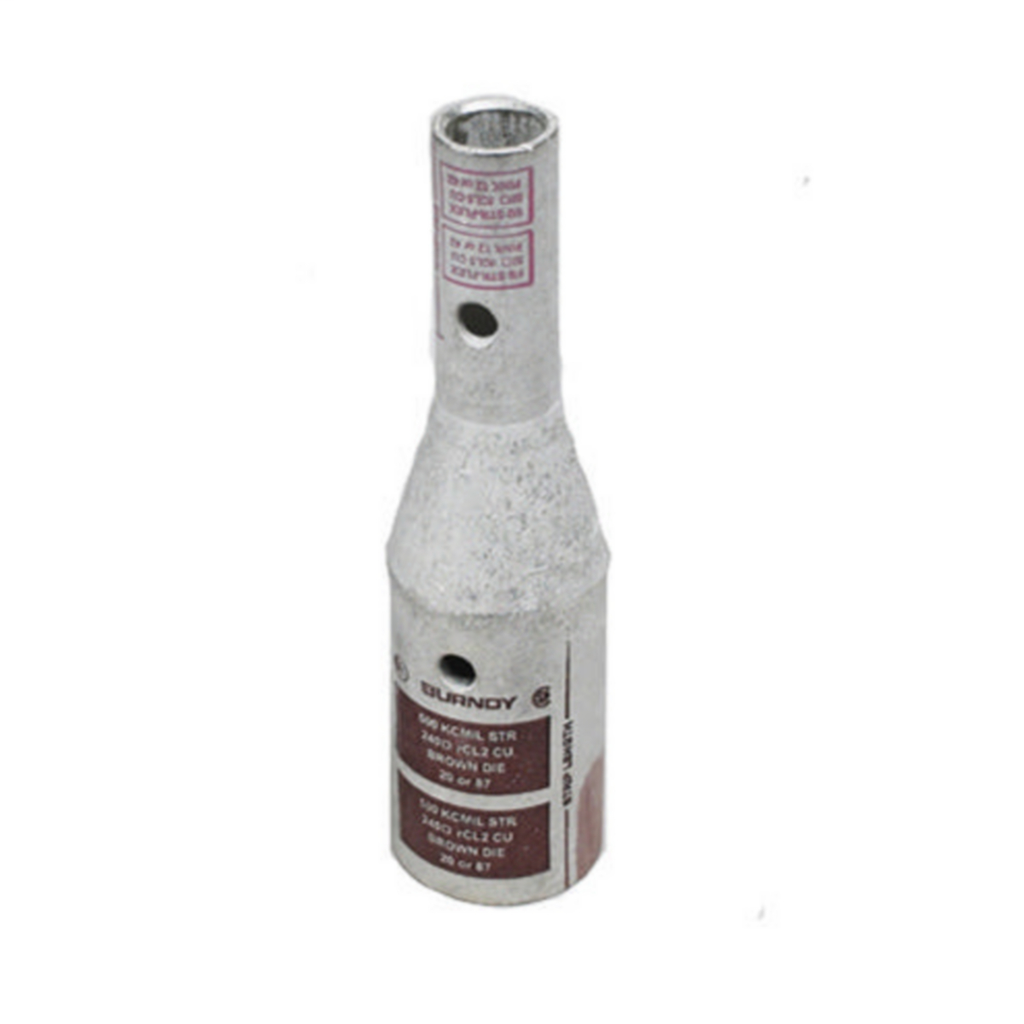

Electro-tin plated copper compression reducer/splice for 500 Kcmil wire

This electro-tin plated copper compression reducer/splice is designed for reliable electrical connections in wire and cable applications. It features a through hole on each side for cable inspection, ensuring proper installation. Ideal for electrical distributors and switchgear suppliers, this component supports a maximum voltage of 35,000 volts and is suitable for 500 thousand circular mils conductor size. The product is color-coded pink for easy identification and is constructed of durable copper material, making it a dependable solution in lighting solutions and electrical distribution systems.

Specifications

• Material: Copper
• Conductor Size: 500 thousand circular mils
• Max. Voltage: 35000 volts
• Connection Type: Splice;Reducer
• Color Coding: Pink
• Product Weight: 0.7300 lbs
• Manufacturer Part #: YS38FXLTCKITC
• Manufacturer Name: Burndy

Features

• Electro-tin plated copper construction for corrosion resistance and conductivity
• Through hole on each side for cable inspection to verify proper installation
• Color-coded pink for quick size and type identification
• Includes heat shrink tubing and multilingual installation instructions in the kit (as per Burndy standard kits)
• Standard barrels listed under UL 486A for safety and compliance
