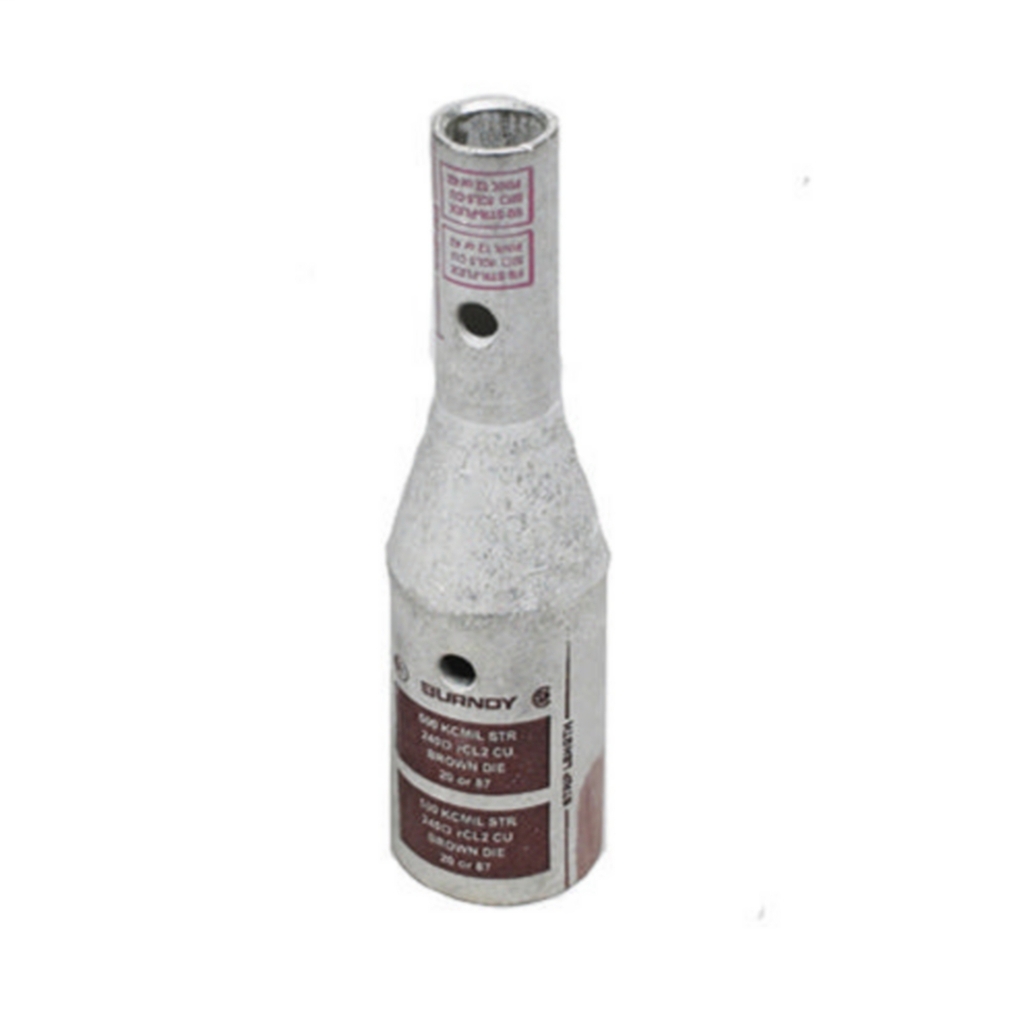

Electro-tin plated copper compression reducer/splice for wire splice applications

This electro-tin plated copper compression reducer/splice is designed for use with 350 Kcmil wire, providing a reliable and durable connection solution. It features a through hole on each side for cable inspection, ensuring proper installation and quality control. Suitable for electrical distributors and wire and cable applications, this product supports secure splicing and reducing of conductors in power distribution systems.

Specifications

• Material: Copper
• Finish: Tin-Plated
• Connection: Compression
• Connection Type: Splice; Reducer
• Conductor Size: 350 thousand circular mils
• Max. Voltage: 35000 volts
• Color Coding: Blue
• Product Weight: 0.4500
• Application: Wire Splice
• Manufacturer Part #: YS34FXLTCKITC
• UPC: 781810344040
• CSA Certified: No

Features

• Electro-tin plated for enhanced corrosion resistance
• Copper construction for optimal conductivity
• Through holes on each side allow cable inspection
• Compression connection ensures secure mechanical and electrical contact
• Color-coded blue for easy identification

Downloads & Links

• YS34FXLTCKITC_MODEL-PDF
• 10101349
• Prop65
