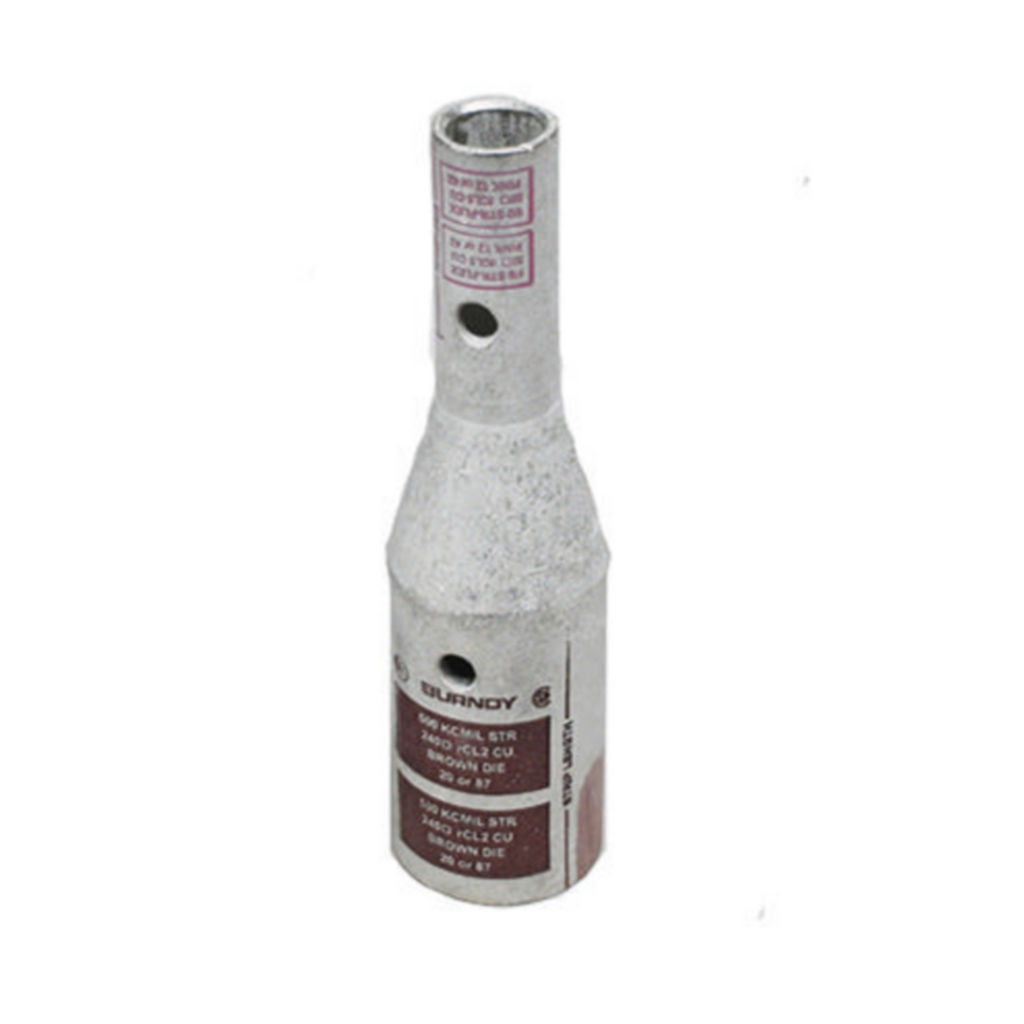

Electro-tin plated copper compression reducer/splice for Wire Splice

This electro-tin plated copper compression reducer/splice is designed for wire splice applications, specifically for 2 AWG wire. Manufactured by Burndy, it provides reliable compression connection with a through hole on each side for cable inspection. Suitable for electrical distributors and wire and cable suppliers, it supports high voltage applications up to 35,000 volts, ensuring secure and efficient electrical connections.

Specifications

• Material: Copper
• Finish: Tin-Plated
• Connection: Compression
• Connection Type: Splice; Reducer
• Conductor Size: 2 American Wire Gauge
• Max. Voltage: 35000 volts
• Color Coding: Brown
• Product Weight: 0.0600 lbs

Features

• Electro-tin plated copper for corrosion resistance and conductivity
• Compression connection type for secure mechanical and electrical bond
• Through hole on each side allows cable inspection
• Color-coded for easy identification
• Designed for 2 AWG wire splice and reduction

Downloads & Links

• YS2CFXLTCKITC_MODEL-PDF
• YS2CFXLTCKITC_MODEL-STEP
• 10101349
• Prop65
