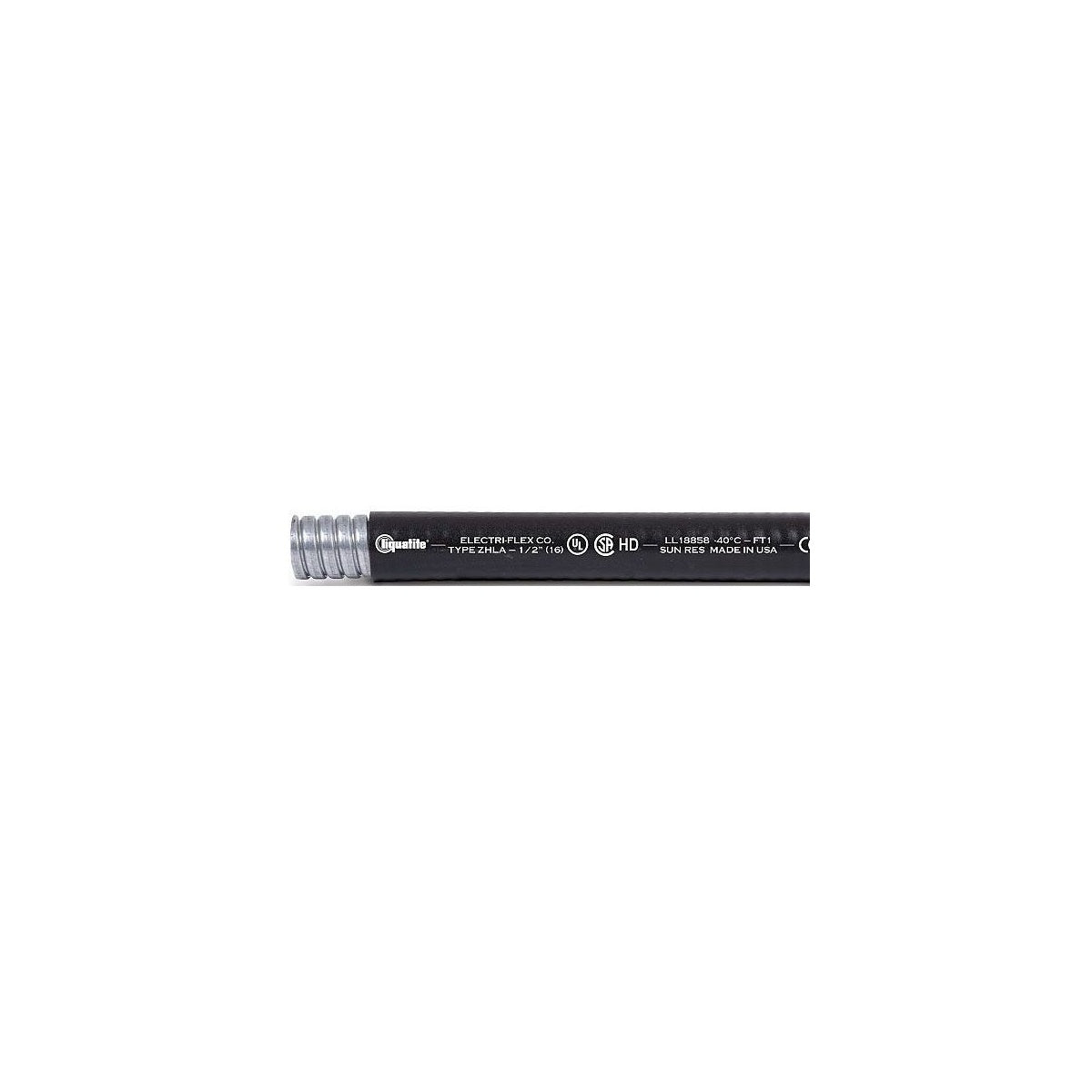

ELECTRIFLEX 88142 ZHLA 14 BLACK 50FT.CTN. Liquidtight Flexible Steel Conduit

The ELECTRIFLEX 88142 ZHLA 14 is a liquidtight flexible steel conduit designed for electrical distributors and switchgear suppliers requiring durable, halogen-free wiring solutions. It features a hot-dipped galvanized steel inner core with a zero-halogen polyurethane jacket, offering flame retardancy, low smoke and toxicity, and resistance to ozone, hydrocarbons, chemicals, oils, and sunlight. This conduit is suitable for applications in construction, data centers, healthcare, mining, power plants, rail/transit, renewable energy, and utilities, providing a reliable raceway for wire and cable protection in confined or public areas such as subways and tunnels.

Specifications

• Manufacturer: ELECTRIFLEX
• Manufacturer Part #: 88142
• Product Weight: 102 lbs per 100 ft
• Standard Length: 50 ft carton
• Trade Size: 1 1/4 inch (14)
• Inner Core: Hot Dipped Galvanized Steel, 1-1/4" Squarelock Profile with continuous bonding strip
• Jacket Material: Zero-Halogen Polyurethane
• Temperature Rating: UL -40°C to 80°C (Air), 60°C (Wet), 70°C (Oil); CSA -40°C to 60°C (Dry), 60°C (Oil)
• Certifications: UL Listed File #E29278, CSA Certified File #LL18858, WEEE and RoHS Compliant, CE, NSF Certified Component
• Compliance: Meets Bombardier SMP 800-C for Toxic Gas Generation, ASTM E162 for Flame Spread, ASTM E662 for Smoke Generation
• Application Standards: NEC Article 350, ANSI/NFPA-79, suitable for direct burial and poured concrete installation

Features

• Halogen-free, low smoke, and low flame spread for safety in confined public spaces
• Flame retardant and resistant to chemicals, oils, ozone, and sunlight (UV resistant)
• High impact and crush strength with flexible, sealed metal core construction
• Suitable for grounding conductor use in circuits rated up to 20A (3/8" & 1/2") and 60A (3/4" - 1-1/4") per NEC
• Approved for hazardous locations including Class I Div. 2, Class II Div. 1 & 2, and Class III Div. 1 & 2
• Meets multiple NEC installation requirements including service entrance wiring, feeders, branch circuits, and more
• Proudly made in the USA with quality assurance through integrated manufacturing and testing
