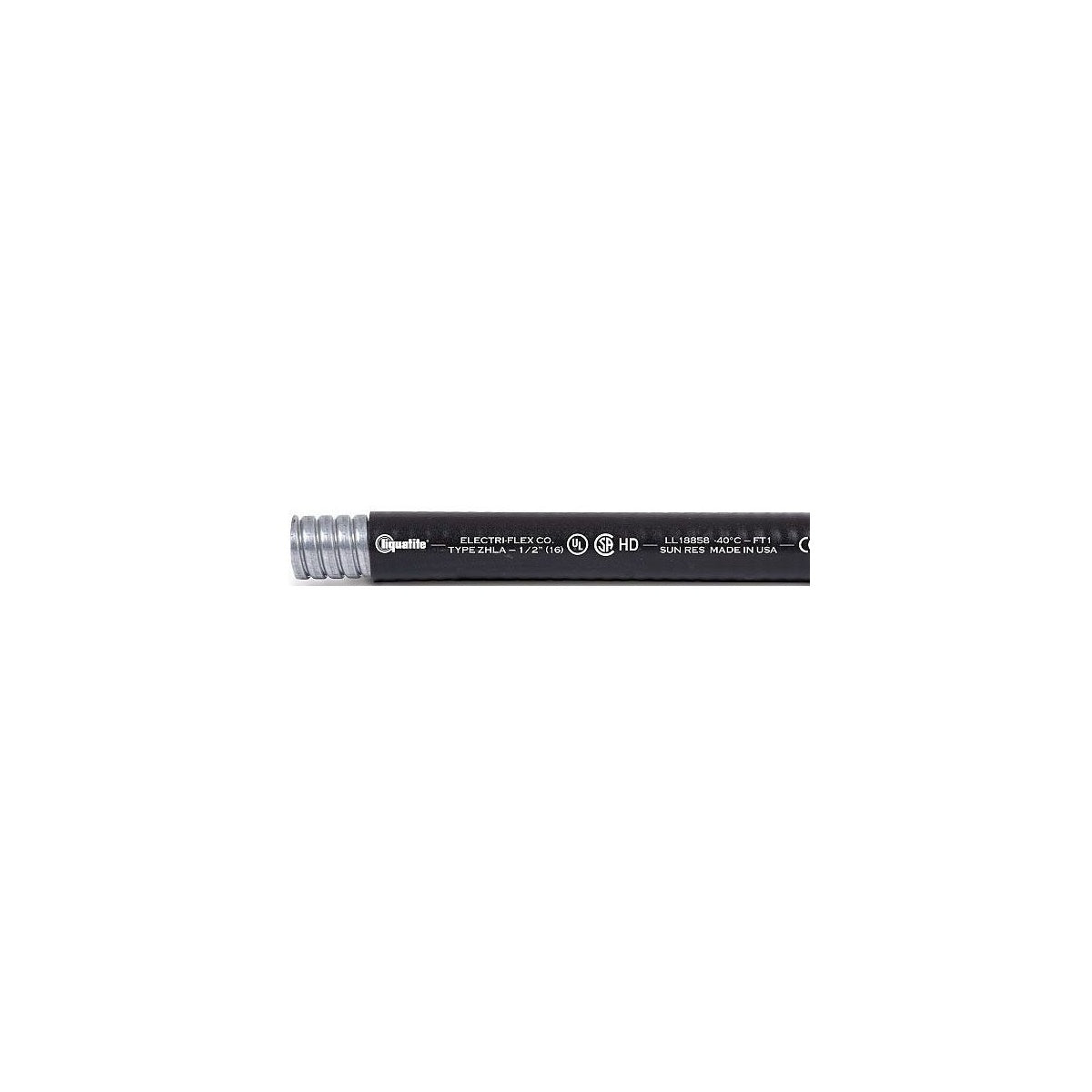

ELECTRIFLEX 88121 ZHLA 12 BLACK 100FT.CTN. Flexible Liquidtight Electrical Conduit

The Electri-Flex 88121 ZHLA 12 is a 3/4" liquidtight flexible metal conduit designed for applications requiring non-halogen, low smoke, and low flame spread properties. This conduit is UL listed and CSA certified, making it suitable for use in confined and public spaces such as subways and tunnels where limiting toxic combustion materials is critical. It is ideal for electrical distributors and lighting solutions that demand durable, flame-retardant, and sunlight-resistant conduit with excellent chemical and oil resistance.

Specifications

• Manufacturer: ELECTRIFLEX
• Manufacturer Part #: 88121
• Trade Size: 3/4"
• Inner Core: Hot Dipped Galvanized Steel, 3/8” – 1-1/4” Squarelock Profile with continuous bonding strip
• Liquidtight Jacket: Zero-Halogen Polyurethane
• Outer Diameter: 1.030" - 1.050"
• Inside Bend Radius: 4.2 inches (Static)
• Weight: 53 lbs per 100 ft
• Standard Length: 100 ft carton
• Color: Black
• Certifications: UL Listed File #E29278, CSA Certified File #LL18858, WEEE and RoHS Compliant, BS EN IEC 61386 Classification Code 445240650414
• Working Temperature: U.L.: -40°C to 80°C Air / 60°C Wet / 70°C Oil; CSA: -40°C to 60°C Dry / 60°C Oil

Features

• Non-halogen, low smoke, and low toxicity jacket for safety in public and confined areas
• Flame retardant and sunlight (UV) resistant polyurethane jacket
• Resistant to ozone, hydrocarbons, chemicals, and oils
• Meets Bombardier SMP 800-C requirements for toxic gas generation
• Complies with ASTM E162 for flame spread and ASTM E662 for smoke generation
• Suitable for direct burial and poured concrete installations
• Can be used as a grounding conductor for circuits rated up to 20A (sizes 3/8” & 1/2”) and 60A (sizes 3/4” through 1-1/4”)
• UL and CSA listed for hazardous locations including Class I, II, and III divisions
• Made in the USA with a high-quality, durable construction

Downloads & Links

• Spec Sheet
