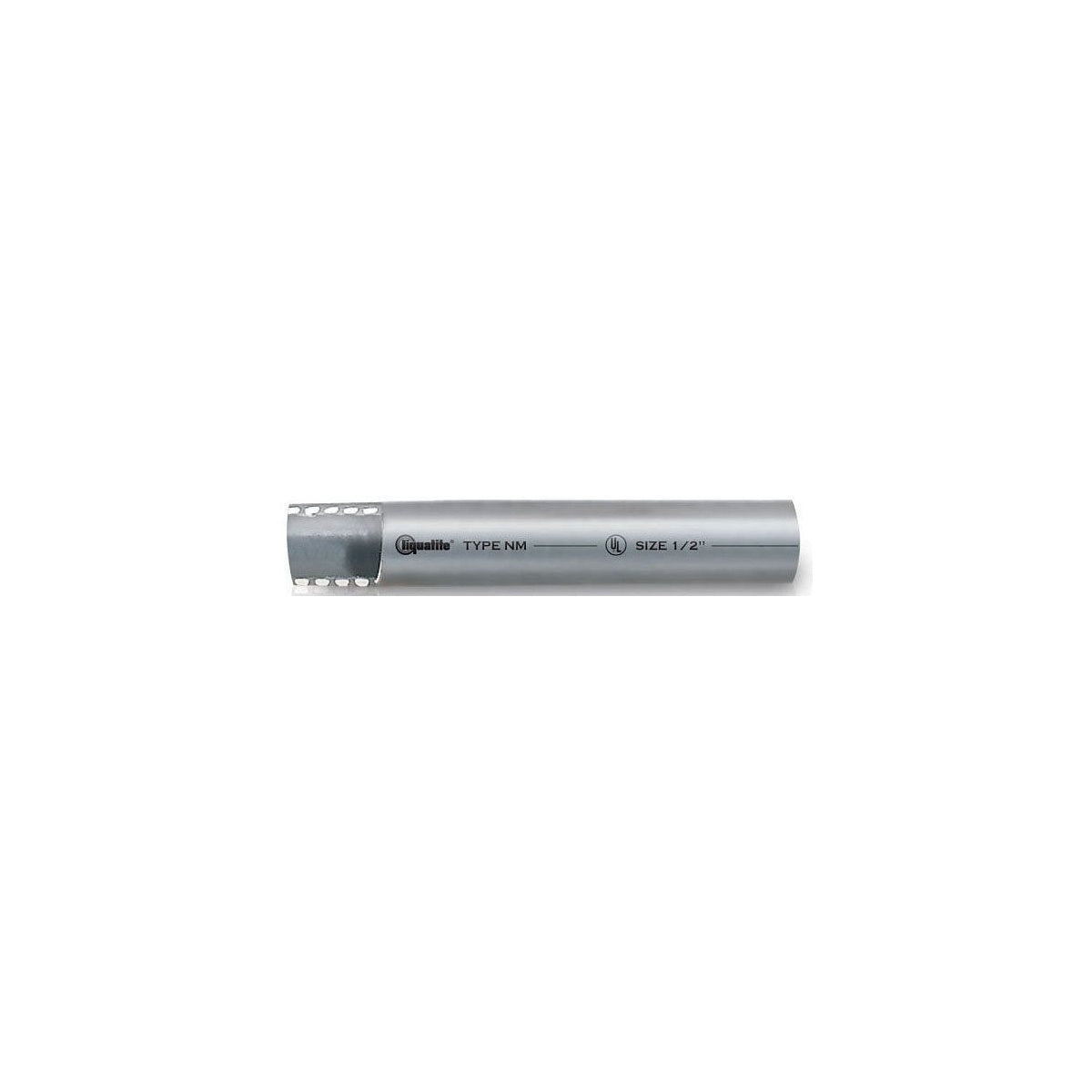

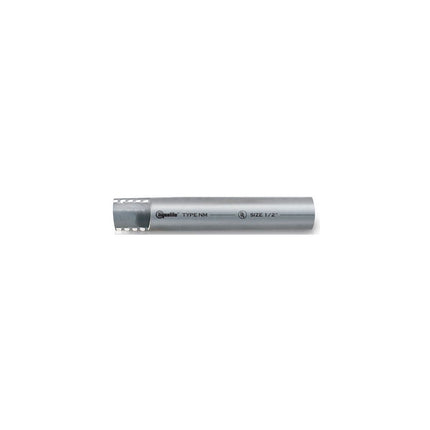

ELECTRIFLEX 81052 NM 15 GRAY 1-1/2IN. 50FT.COI Nonmetallic Liquidtight Conduit

The ELECTRIFLEX 81052 Type NM nonmetallic liquidtight conduit is a UL and CSA listed product designed to provide durable protection for electrical wiring against abrasion, sunlight, mild acids, alkaline, and oils. It is commonly used by electrical distributors and lighting solution providers for applications such as air conditioning hook-ups, outdoor wiring, and installations requiring flexible, liquidtight conduit solutions. This conduit is suitable for use in direct burial, poured concrete, and hazardous classified locations, making it versatile for a variety of industrial and commercial electrical projects.

Specifications

• Manufacturer: ELECTRIFLEX
• Manufacturer Part #: 81052
• Product Weight: 42 lbs per 100 ft
• Nominal Size: 1 1/2 inch (50 mm)
• Internal Diameter: 1.575 to 1.600 inches
• Outer Diameter: 1.865 to 1.900 inches
• Inside Bend Radius: 9.0 inches
• Standard Length: 50 ft coil
• Color: Machine Tool Gray
• UPC: 782673810529
• Working Temperature Range: -20°C to 80°C Dry / 60°C Wet / 70°C Oil
• Voltage Rating: For containment of 1000 volts and lower potential circuits

Features

• Helically wound integral Type B construction with spiral rigid PVC reinforcement embedded within the PVC wall for enhanced durability.
• UL Listed File # E79308 and CSA Certified File # LL230485 compliant with ANSI/UL 1660 Type B and CSA 22.2 No. 227.2 Type B standards.
• Listed and marked for outdoor use, direct burial, and installation in poured concrete.
• Suitable for hazardous (classified) locations including Class I Div. 2, Class II Div. 1 & 2, and Class III Div. 1 & 2.
• Compatible with nonmetallic fittings marked for FNMC-B or LFNC-B and standard metal liquidtight fittings.
• Resistant to abrasion, sunlight, mild acids, alkaline, and oils.
• Complies with NFPA-79 electrical standard for industrial machinery.
• WEEE and RoHS compliant, ARRA certified.
