Description

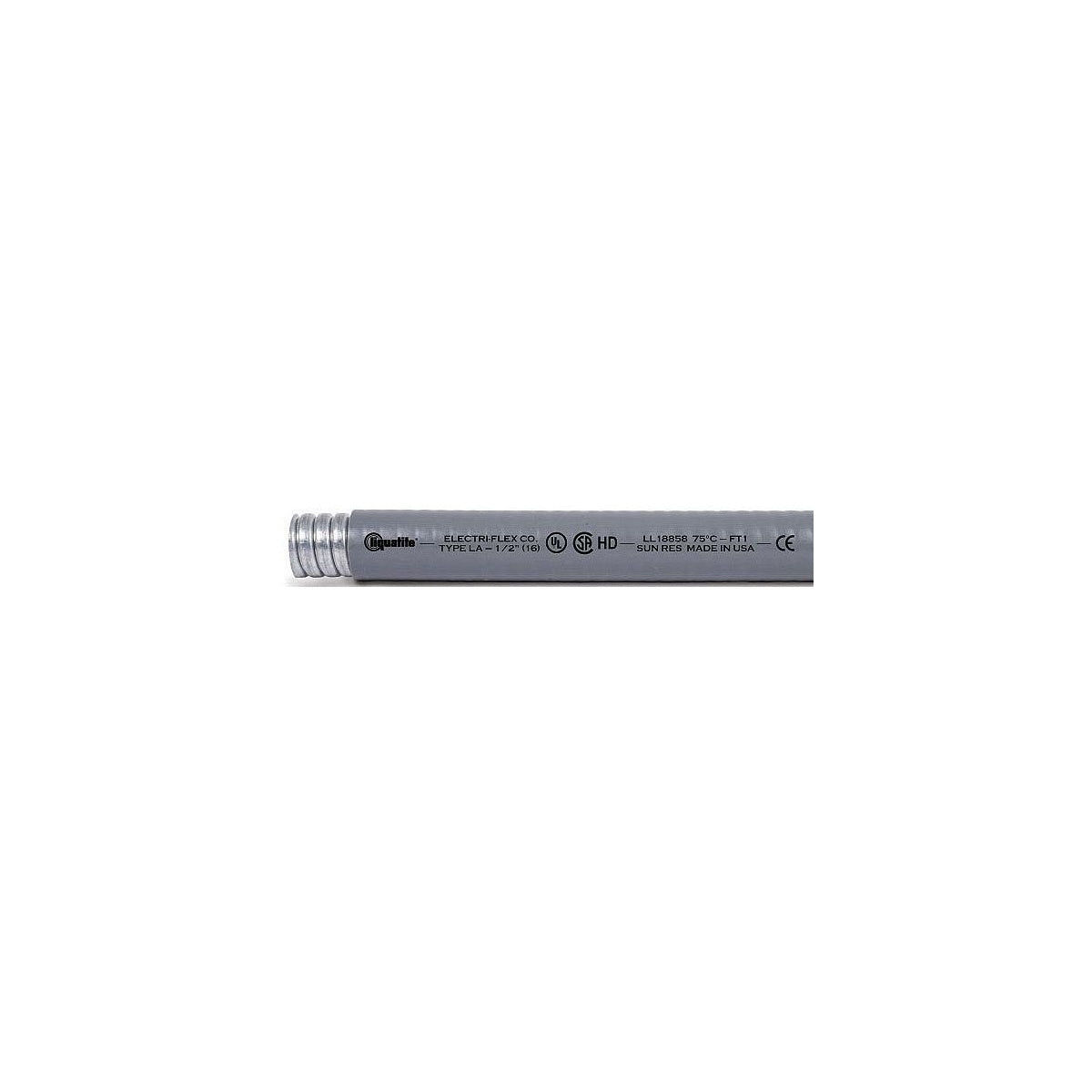

ELECTRIFLEX 28102 LA/LT 18 Gray 3 X 25FT.CTN. Flexible Steel Conduit
The Electriflex 28102 LA/LT is a liquidtight flexible steel conduit designed for heavy-duty electrical applications. It provides reliable protection against wet, oily conditions and is suitable for use in exposed or concealed locations. Manufactured with a hot-dipped galvanized steel inner core and a flexible PVC liquidtight jacket, this conduit is resistant to oils, mild acids, flame retardant, and sunlight (UV) resistant. It is ideal for contractors, electrical distributors, and switchgear suppliers requiring durable and versatile wire and cable protection solutions.
Specifications
- Material: Steel
- Color: Gray
- Length: 25 in
- Product Weight: 252 lbs per 100 ft
- Manufacturer: Electriflex
- Manufacturer Part #: 28102
- UPC: 782673281022
- Certifications: UL Listed (File #E29278), CSA Certified (File #LL18858), WEEE and RoHS Compliant, CE Certified
- Working Temperature Range: -30°C to 80°C Dry / 60°C Wet / 70°C Oil
- Conforms to NEC Article 350 and ANSI/NFPA-79 Standards
- Suitable for direct burial and poured concrete installations
- Squarelock Profile (3/8" – 1-1/4"); Fully Interlocked Profile (1-1/2" – 4")
- Inside Bend Radius: Static 10 in, Dynamic 36 in (for 3" size)
Features
- Hot dipped galvanized steel core for mechanical strength and grounding continuity
- Flexible PVC jacket resistant to oils, mild acids, flame retardant, and UV sunlight
- Listed for heavy-duty applications and marked HD
- Suitable as a grounding conductor for circuits rated up to 20A (3/8" & 1/2") and 60A (3/4" to 1-1/4")
- Approved for use in hazardous (classified) locations including Class I, II, and III Divisions 1 & 2
- Compliant with Canadian Electrical Code for dry, damp, or wet locations
- Suitable for a broad range of markets including aerospace, data centers, healthcare, machine tools, mining, oil & gas, pharmaceuticals, power plants, rail/transit, renewable energy, security, ship building, steel mills, telecommunications, utilities, and wastewater treatment
