ELECTRIFLEX 23102 LA 13 GRAY 1 IN. 100FT.CTN.
SKU: #206694
Part: #23102
UPC: 782673231027
ELECTRIFLEX 23102 LA 13 GRAY 1 IN. 100FT.CTN.
SKU: #206694
Part: #23102
UPC: 782673231027
Description

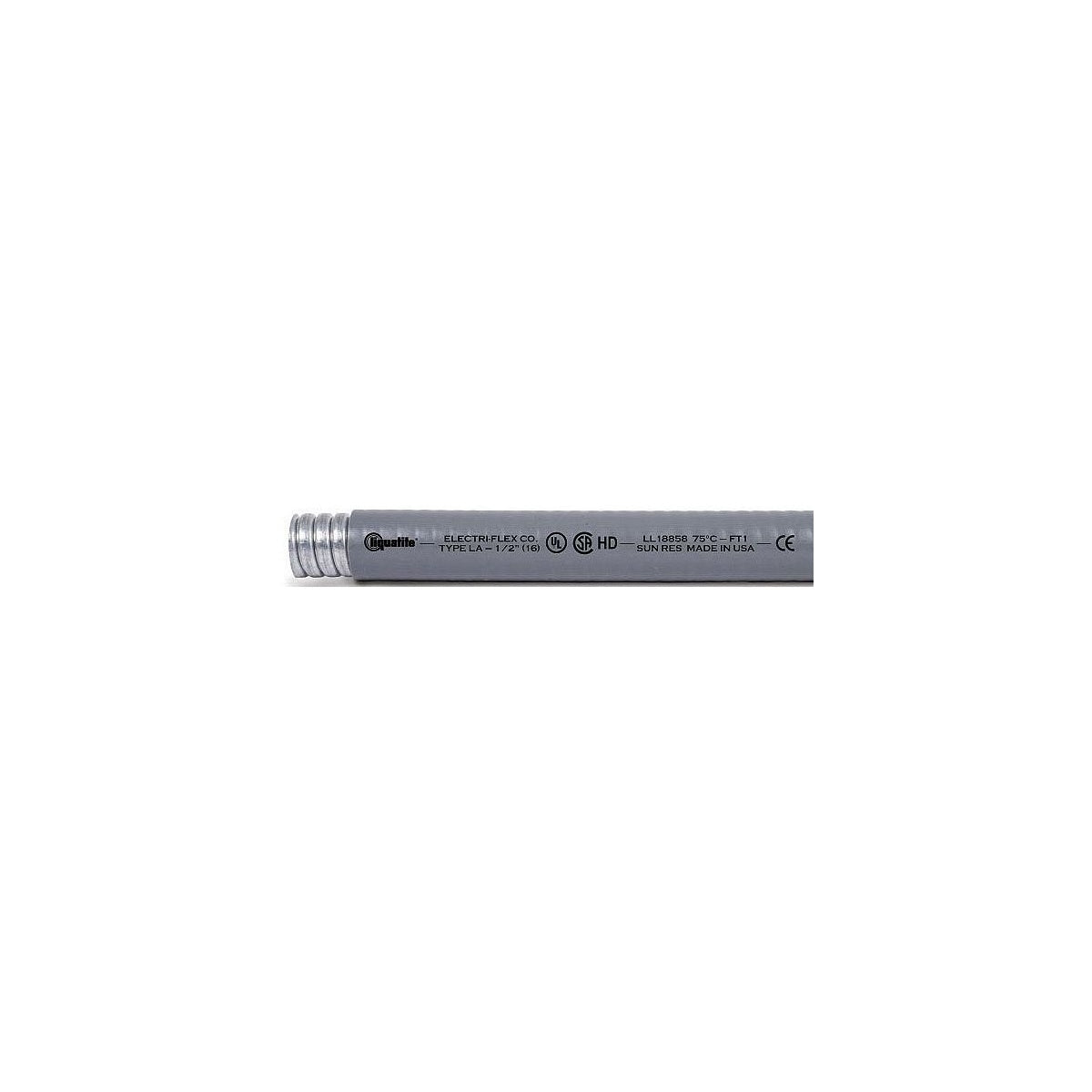

ELECTRIFLEX 23102 LA 13 Gray 1 IN. 100FT.CTN. Flexible Steel Conduit
The ELECTRIFLEX 23102 LA 13 is a flexible steel conduit designed for heavy-duty electrical applications. It is UL listed and CSA certified, offering robust protection against wet and oily conditions. This conduit is suitable for exposed or concealed locations and meets the requirements for use in industrial machinery, data centers, construction, and various other markets. Its steel core provides strength and durability, while the flexible PVC liquidtight jacket ensures resistance to oils, mild acids, flame, and sunlight. This product is ideal for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers requiring reliable, heavy-duty conduit solutions.
Specifications
- Manufacturer: ELECTRIFLEX
- Manufacturer Part #: 23102
- Material: Steel
- Color: Gray
- Length: 100 in
- Product Weight: 82 lbs per 100 ft carton
- Trade Size: 1 inch (LA-13)
- Inner Diameter: Min 1.041 in, Max 1.066 in
- Outer Diameter: Min 1.290 in, Max 1.315 in
- Inside Bend Radius: Static 5.5 in, Dynamic 12 in
- Standard Length: 100 ft carton, 400 ft reel
- Certifications: UL Listed File #E29278, CSA Certified File #LL18858, WEEE and RoHS Compliant, CE Certified
- Working Temperatures: -30°C to 80°C Dry / 60°C Wet / 70°C Oil
Features
- Hot dipped galvanized steel inner core with squarelock profile and continuous bonding strip (sizes 3/8” to 1-1/4”)
- Flexible PVC liquidtight jacket resistant to oils, mild acids, flame retardant and sunlight (UV) resistant
- Listed and marked for direct burial and use in poured concrete
- Suitable as grounding conductor for circuits rated up to 20A (3/8” & 1/2”) and 60A (3/4” to 1-1/4”) in short lengths
- Permitted for use in hazardous (classified) locations including Class I, II, III Divisions 1 & 2
- Compliant with NEC Article 350 and ANSI/NFPA-79 standards for industrial machinery
- Machine tool gray color for easy identification; other colors available on request
- Made in the USA
