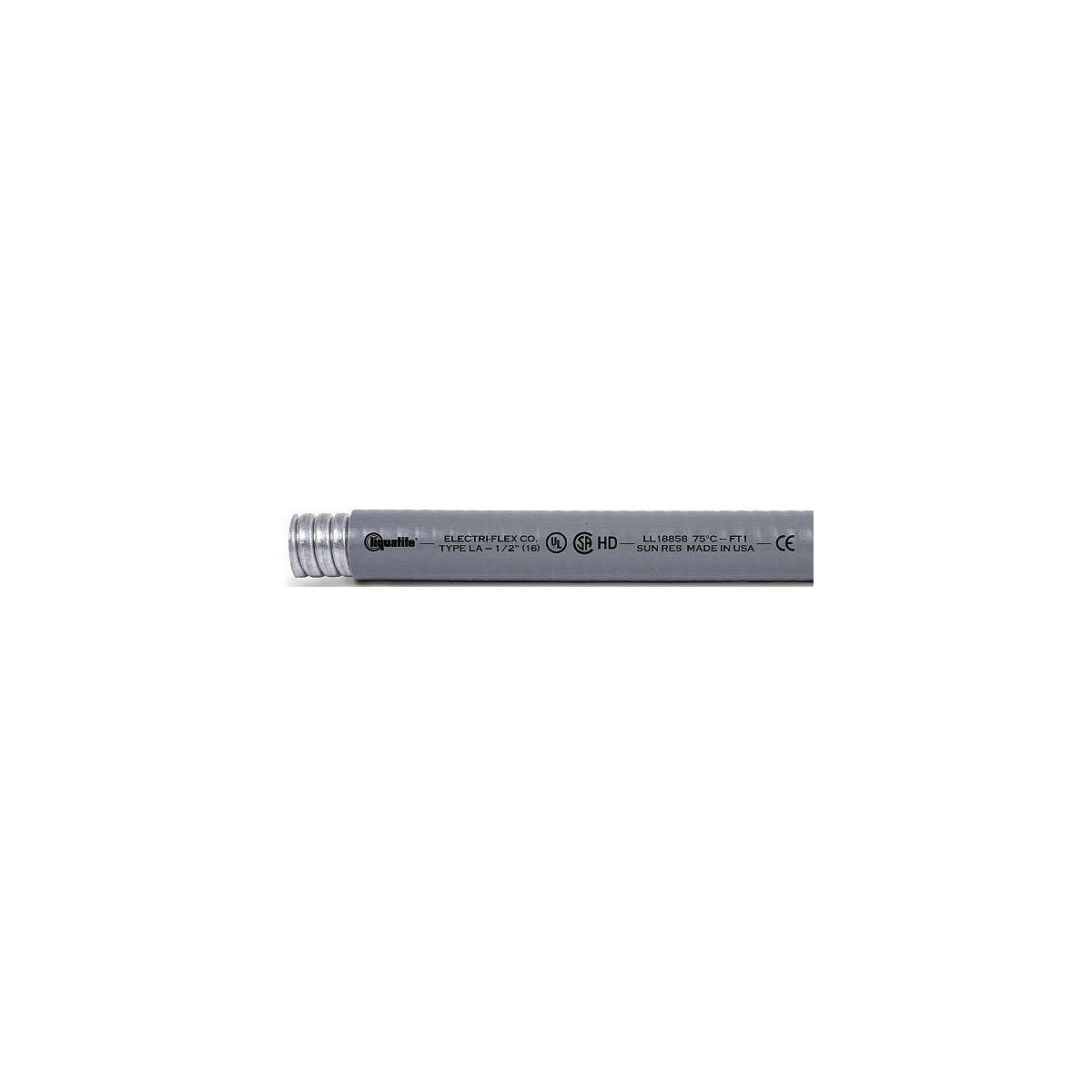

ELECTRIFLEX 22101 LA 12 Gray 3/4 IN.100 FT.CTN Liquidtight Flexible Steel Conduit

The ELECTRIFLEX 22101 LA 12 is a liquidtight flexible steel conduit designed for heavy-duty electrical applications. It provides robust protection against wet and oily conditions, suitable for exposed or concealed installations. Manufactured by Electriflex, this conduit is ideal for electrical distributors and switchgear suppliers requiring durable wire and cable raceways with reliable performance in industrial, commercial, and utility markets.

Specifications

• Material: Steel
• Color: Gray
• Length: 100 ft per carton
• Weight: 53 lbs per 100 ft
• Trade Size: 3/4 inch (US)
• Internal Diameter: 0.820 - 0.840 in
• Outer Diameter: 1.030 - 1.050 in
• Inside Bend Radius: 4.2 in (static), 6.0 in (dynamic)
• Construction: Hot Dipped Galvanized Steel core with flexible PVC liquidtight jacket
• Working Temperature: -30°C to 80°C Dry / 60°C Wet / 70°C Oil
• Standard Length: 100 ft carton, 500 ft reel available
• Certifications: UL Listed File #E29278, CSA Certified File #LL18858, RoHS and WEEE Compliant, CE Certified

Features

• Heavy-Duty rated, marked HD for demanding industrial environments
• Outstanding resistance to oils, mild acids, and sunlight (UV)
• Suitable for direct burial and installation in poured concrete
• Listed for use in hazardous classified locations (Class I, II, III Divisions 1 & 2)
• Meets NEC Article 350 and ANSI/NFPA-79 standards for industrial machinery
• Can serve as a grounding conductor for circuits up to 60A depending on size and length
• Flexible sealed raceway combining metal core strength with liquidtight PVC jacket
• Available in machine tool gray color for easy circuit identification
