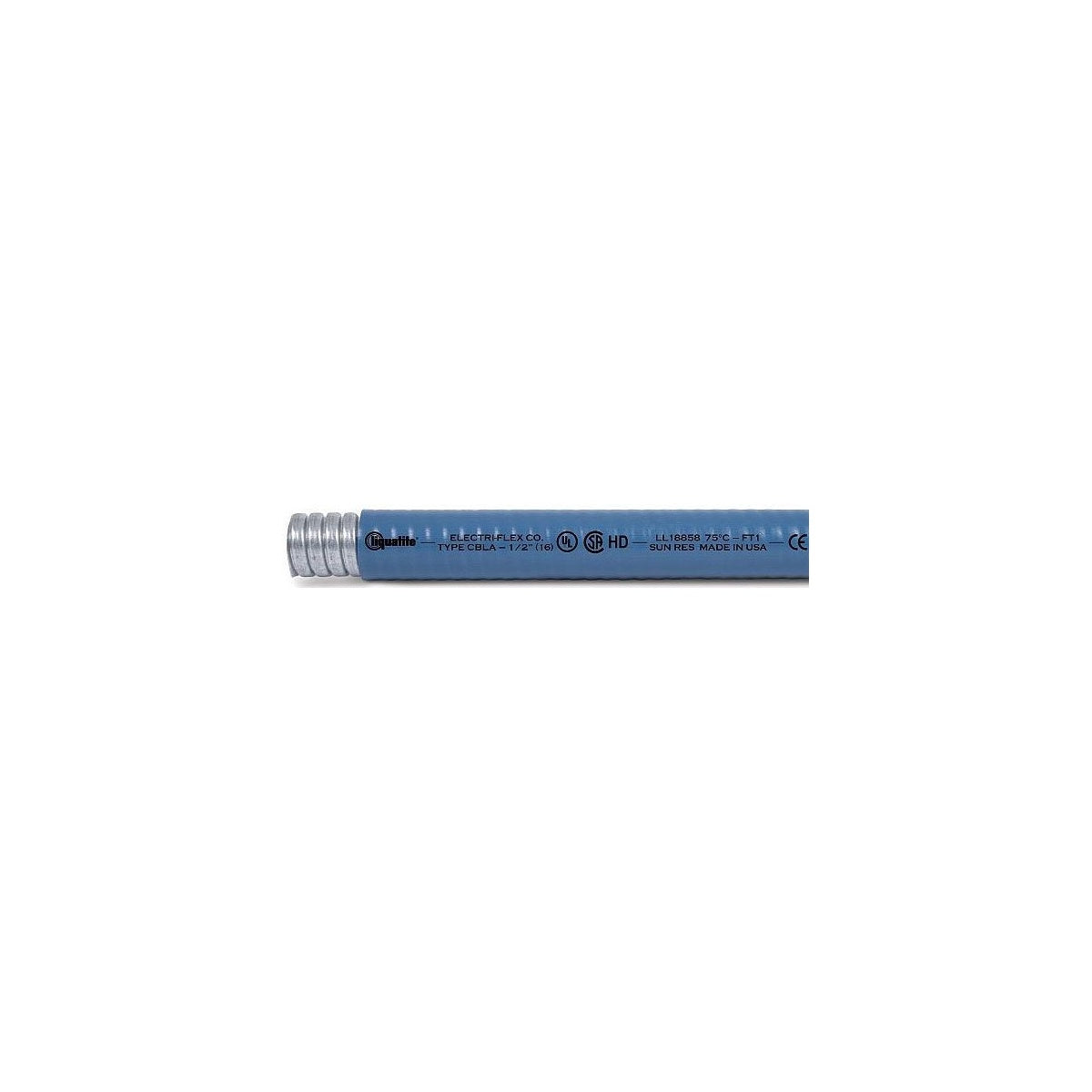

ELECTRIFLEX 211034 CBLA 11 BLUE 1/2IN 500FT REEL Liquidtight Flexible Steel Conduit

The ELECTRIFLEX 211034 CBLA is a liquidtight flexible steel conduit designed primarily for computer room installations and data center applications. This conduit features a blue PVC jacket for easy circuit identification and combines the strength of a galvanized steel core with a flexible, flame-retardant, and sunlight-resistant jacket. It is suitable for exposed or concealed locations, direct burial, and installations under raised floors in data processing areas, meeting NEC Article 350 and Article 645.5(E)(2) requirements.

Specifications

• Manufacturer: Electriflex
• Manufacturer Part #: 211034
• Material: Steel (Hot Dipped Galvanized Steel Inner Core)
• Jacket Material: Flexible Blue PVC
• Color: Blue
• Length: 500 in
• Weight: 32 lbs
• Size: 1/2 inch trade size
• UL Listed: File # E29278, ANSI/UL-360 for Liquidtight Flexible Steel conduit
• CSA Certified: File # LL18858, CSA 22.2 No.56
• Working Temperature: -30°C to 80°C Dry / 60°C Wet / 70°C Oil
• Standards Compliance: WEEE and RoHS Compliant, BS EN IEC 61386 Classification Code 444240650414

Features

• Blue PVC jacket for quick circuit identification in computer power wiring
• Flame retardant and sunlight (UV) resistant jacket
• Resistant to oils and mild acids
• Hot dipped galvanized steel inner core with squarelock profile and continuous bonding strip
• Suitable for direct burial and embedding in poured concrete
• Meets same specifications as Type LA conduit
