Electr. Heat Thermostat, Br.Gold-Basebrd – Electric Heat Thermostat

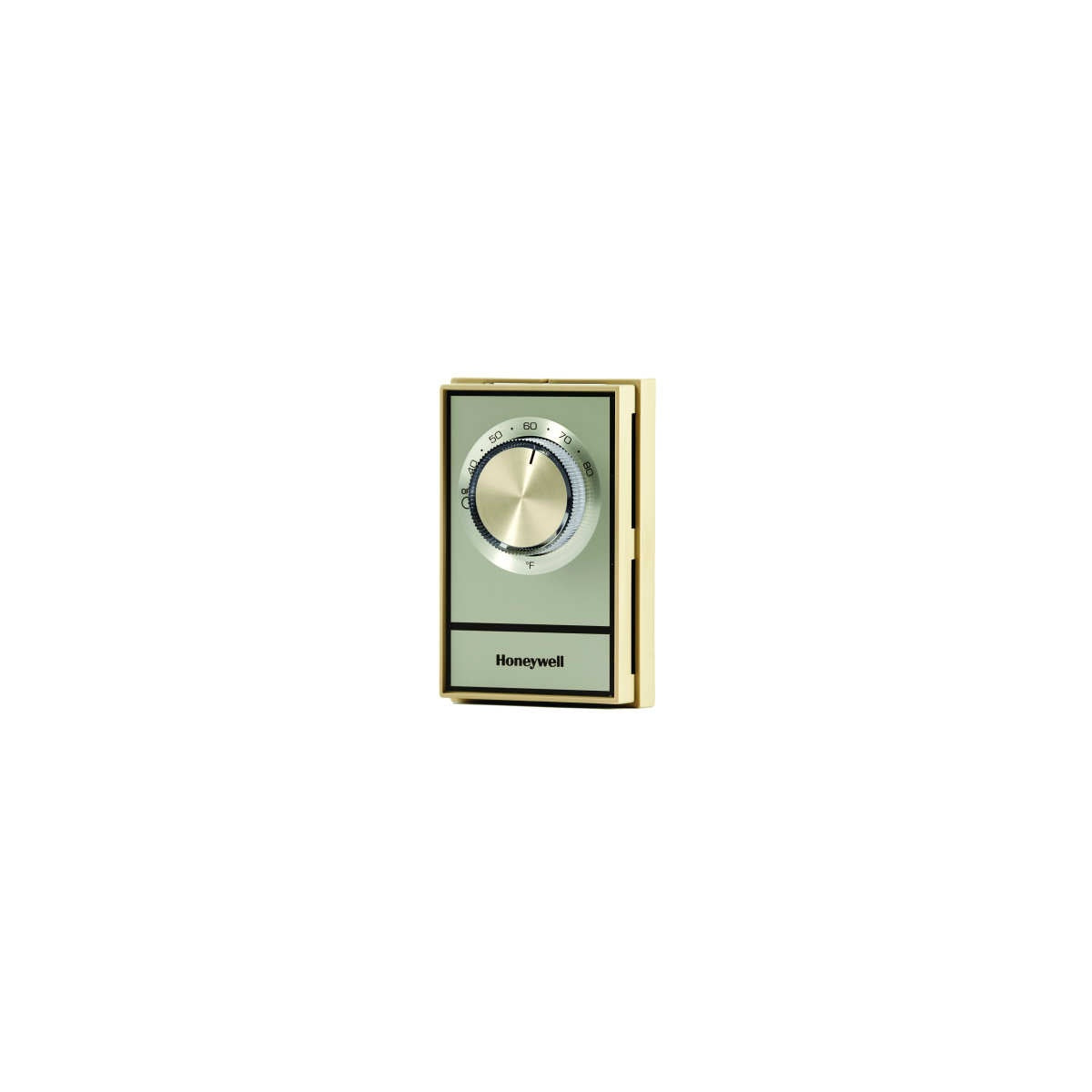

The Honeywell Electr. Heat Thermostat, Br.Gold-Basebrd (Model T498B1553/U) is designed to provide line voltage control of electric heating systems. This device is suitable for use by electrical distributors and switchgear suppliers requiring reliable and efficient temperature regulation for electric heat applications. Its brush gold color and classic styling make it an appropriate choice for visible wall-mounted installations in residential or commercial environments.

Specifications

• Manufacturer: Honeywell
• Model Number: T498B1553/U
• Operating Frequency: 60 hertz
• Ambient Temperature Range: 40 to 85 degrees Fahrenheit
• Electrical Rating: 22A noninductive at 120/208/240 Vac; 19A noninductive at 277 Vac
• CSA Performance Certification: 16A at 208/240 Vac
• Setting Range: 40¬∞F to 80¬∞F with markings every 5¬∞F
• Type of Switching: Fully enclosed snap acting Micro Switch‚Ñ¢ with double line break in OFF position
• Sensing Element: Flat bimetallic blade
• Differential: Approximately 3¬∞F (2¬∞C), nonadjustable
• Mounting: Direct mounting on NEMA standard vertical 2 x 4 inch or 4 x 4 inch switch box with mud ring adapter
• Dimensions: Nominal dimensions as per Fig. 1 in technical documentation
• Product Weight: 0.4 lbs
• Color: Brush Gold

Features

• CSA Certified and UL Listed for up to 5 kW at 277 Vac
• Long life, industrial-grade Micro Switch‚Ñ¢ mechanism for reliable operation
• Rugged engineering plastic mounting base with captive mounting screws
• Replaces any standard wall-mounted electric heat thermostat
• Optional locking cover and range stops for security and temperature setting control
• Energy efficient and economical temperature control
• Includes six-inch stranded copper leadwires suitable for aluminum wiring with approved connectors
• Designed for use with separate limit control in heating appliances

Downloads & Links

• Product Data and Specifications-Electric Heating Thermostat
