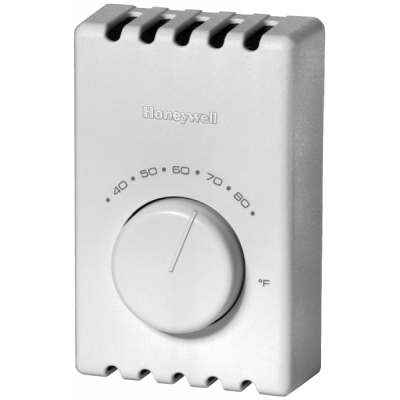

Features

• Economical.

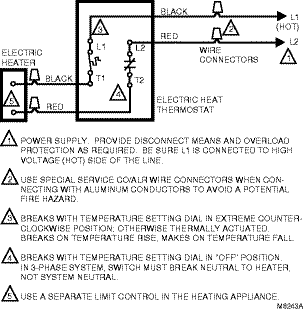

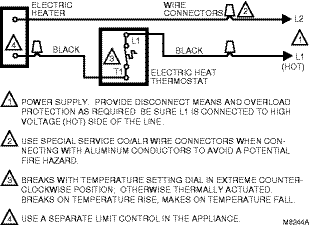

• Replace virtually any two-wire (T410A) or four-wire (T410B) line voltage wall-mounted electric heating thermostat.
• Easy to install; 6 in. (150 mm) color-coded leads.
• Include long-lasting Micro Switch™ mechanism.
• Rugged, plastic mounting base and one-piece cover with vents.
• Ideally suited to new construction applications.

Specifications

• Application: Electric baseboards, convectors and fan forced heaters (resistive rated loads).
• Dimensions (in.): 4 1/2 in. high x 2 3/4 in. wide x 2 1/4 in. deep
• Dimensions (mm): 115 mm high x 70 mm wide x 57 mm deep
• Includes: Positive OFF
• Item Type: Product
• Mounting: Vertical
• Electrical Ratings: Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac.
• Frequency: 60 Hz
• Stages: 1 Heat
• Approvals, Underwriters Laboratories Inc.: Listed; File No. E4436, Guide No. XAPX
• Approvals, Canadian Standards Association: Listed: File No. LR1322
• Electrical Connections: 6 in. (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used.
• Supply Voltage: 120 Vac; 208 Vac; 240 Vac; 277 Vac
• Sensor Element: Bimetal
• Accuracy (C): 2 C
• Differential Temperature (F): 3 F
• Differential Temperature (C): 2 C
• Color: White
• Ambient Temperature Range (F): 40 F to 85 F
• Ambient Temperature Range (C): 5 C to 30 C
• Switching Action: DPST
• Setting Temperature Range (F): 40 F to 80 F

Downloads

Technical Documents

Accessories

• 272804A/U
