ELCO LTG EL390ICA 15W LT Housing
SKU: #391966
Part: #EL390ICA
UPC: 633999185498
ELCO LTG EL390ICA 15W LT Housing
SKU: #391966
Part: #EL390ICA
UPC: 633999185498
Description

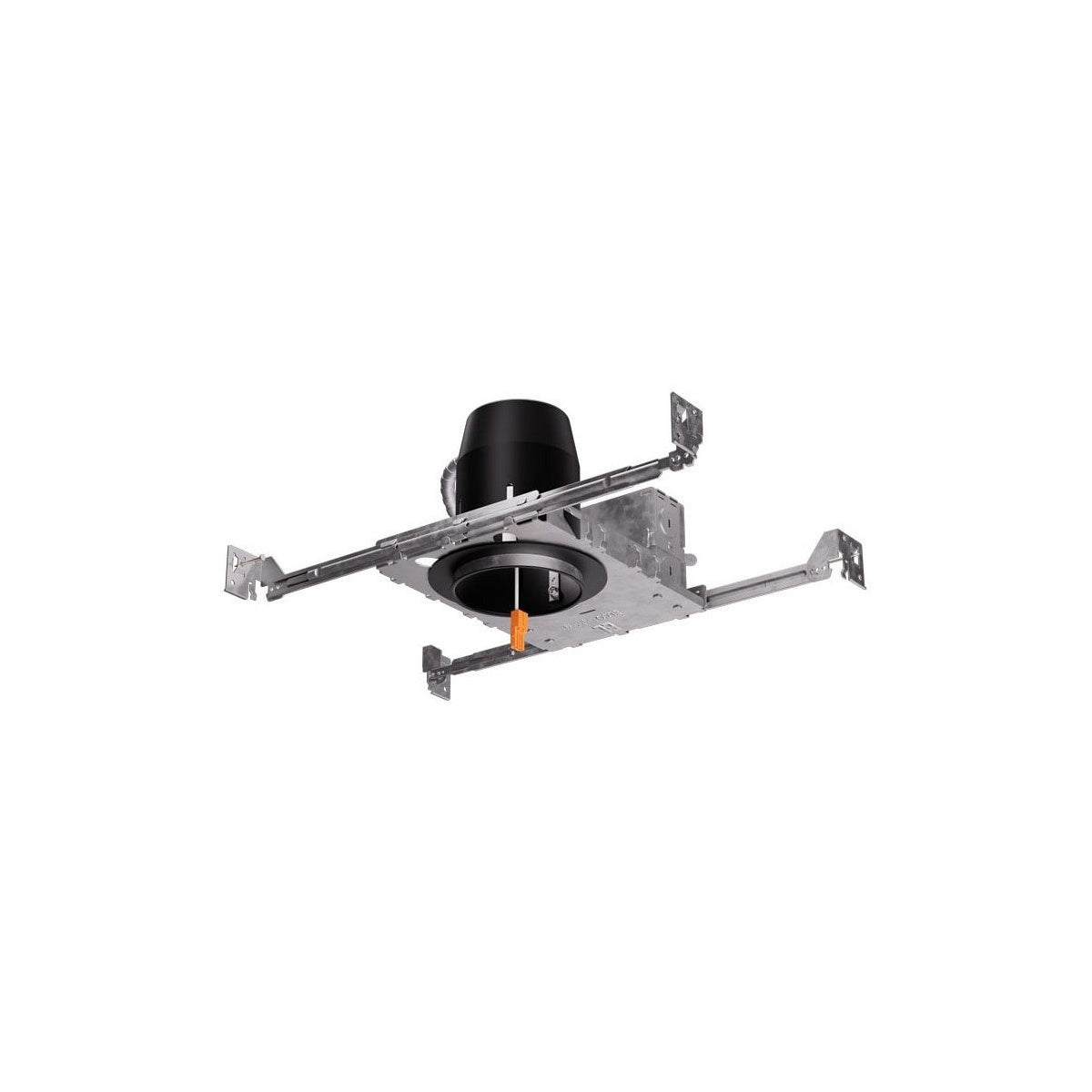

ELCO LTG EL390ICA 15W LT Housing - Dedicated LED Housing
The ELCO LTG EL390ICA 15W LT Housing is a dedicated IC Airtight LED housing designed for use in insulated ceilings. It is suitable for new construction installations and features a quick connect system for easy wiring. This housing is ideal for electrical distributors and lighting solutions providers seeking reliable, code-compliant recessed lighting housings for residential or commercial applications. The product supports California Title 24 high efficacy compliance, making it suitable for energy-efficient lighting projects.
Specifications
- Input Voltage: 120V AC
- Wattage: 14W Max
- Captive Hanger Bars: Span 24", repositionable at 90°, includes Real Nail
- Height: 5" (Allows for use in 2x6 construction)
- Adjustable Housing: Accommodates up to 1 ¼" ceiling thickness
- Airflow Requirements: Meets restricted airflow (Per ASTM E-283)
- Damp Location: UL Listed
- Wet Location: UL Listed with Shower Trims
- Direct Contact with Insulation: UL Listed
- Feed Through: UL Listed
- Title 24 Compliant
- Product Weight: 2.35 lbs
- Manufacturer Part #: EL390ICA
- UPC: 633999185498
Features
- IC Airtight design ensures suitability for insulated ceilings
- Quick connect system simplifies installation and wiring
- Compatible with standard ELCO MR16 trims
- Complies with California Title 24 energy efficiency standards
- Captive hanger bars provide flexible mounting options
- UL listings for damp, wet locations and direct contact with insulation
