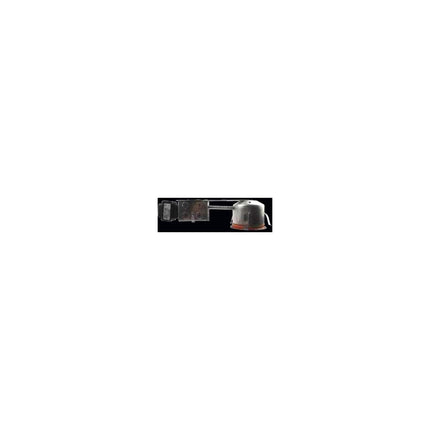

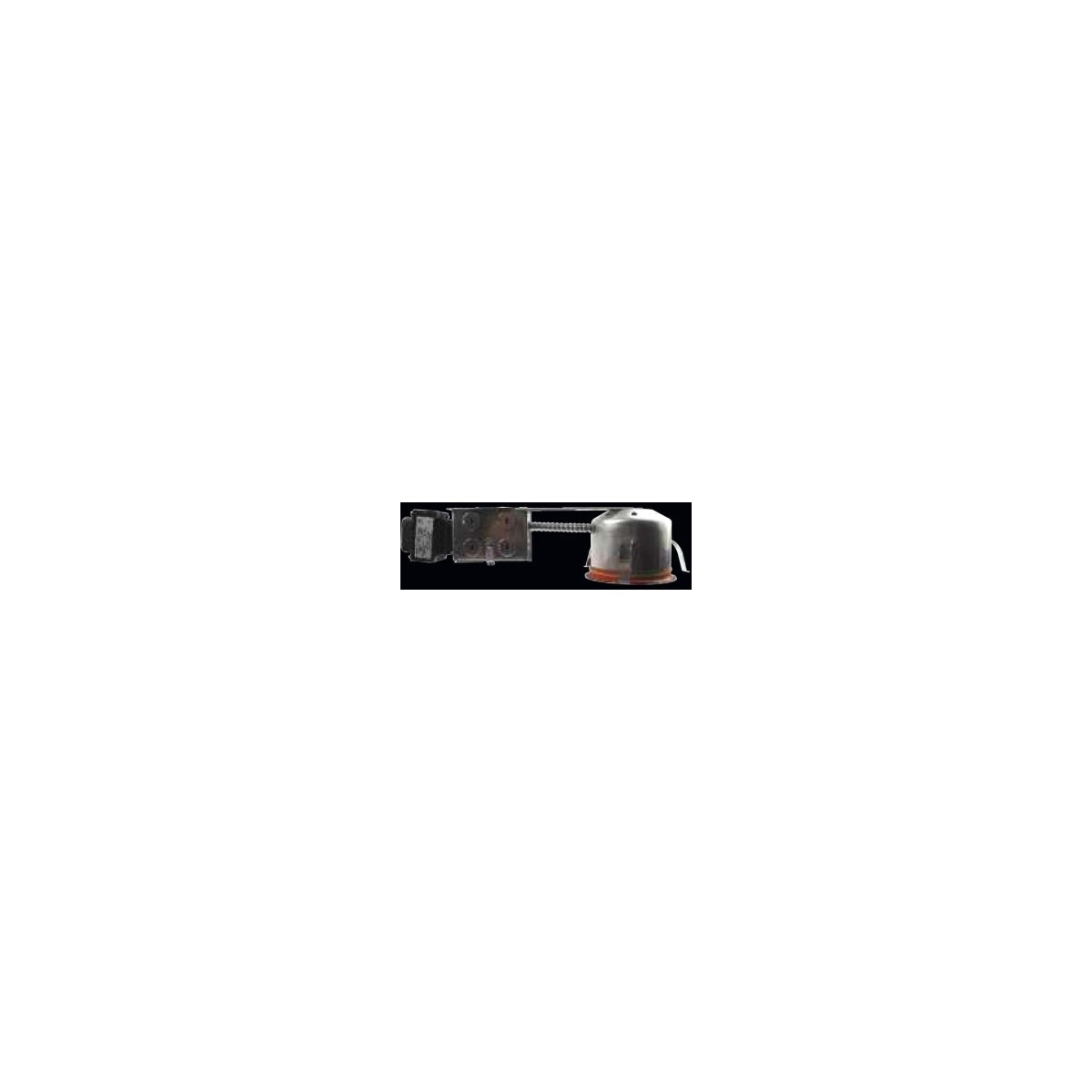

ELCO EL1499RS 4IN LOW VLTG RMDL SHALLOW HSNG
SKU: #217907
Part: #EL1499RS
UPC: 633999130566
ELCO EL1499RS 4IN LOW VLTG RMDL SHALLOW HSNG
SKU: #217907
Part: #EL1499RS
UPC: 633999130566
Description
ELCO EL1499RS 4IN Low Voltage Remodel Shallow Housing
The ELCO EL1499RS is a 4-inch low voltage remodel shallow housing designed for lighting distributors and switchgear suppliers requiring compact, efficient housing solutions for MR16 lamps. It is suitable for remodel applications where ceiling access is limited, providing a secure and thermally protected enclosure for low voltage lighting installations.
Specifications
- Height: 3 5/8"
- Ceiling Opening: 4 1/4"
- Lamp: 12V 50W MR16
- Junction box listed for 90º supply wire
- Product Weight: 3.55 lbs
- UPC: 633999130566
Features
- Small aperture low voltage remodel housing
- Integral thermal protector guards against misuse of insulation materials and improper lamping
- Integral magnetic transformer steps line voltage down to lamp operating voltage
- Unit slips through 4 1/4" ceiling opening
- Integral flange secures housing against ceiling
- Three remodel clips secure housing and accommodate various ceiling thicknesses
- UL Damp Location Listed
- UL Feed Through Listed
