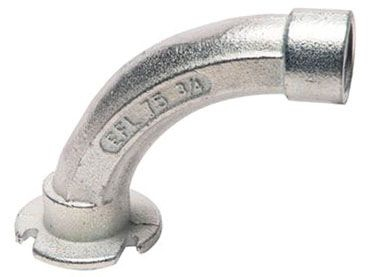

EFL-50, IMC/Rigid Conduit Concrete Slab Insert
SKU: #314646
Part: #EFL-50
UPC: 783126120356
EFL-50, IMC/Rigid Conduit Concrete Slab Insert
SKU: #314646
Part: #EFL-50
UPC: 783126120356
Next day delivery
Description
EFL-50, IMC/Rigid Conduit Concrete Slab Insert – Concrete Slab Electroform Insert
The EFL-50 is a 90° concrete slab electroform insert designed for use with threaded rigid conduit and intermediate metal conduit (IMC) installations in poured concrete slabs. It is intended for electrical distributors and contractors requiring durable and reliable conduit inserts for concrete deck forms. This product supports secure attachment via nailing, screwing, or tack-welding to concrete deck forms and is suitable for slabs 6 inches thick and up, requiring bend conduit sweep for proper installation.
Specifications
- Manufacturer: O-Z Gedney
- Manufacturer Part #: EFL-50
- Material: Iron (Malleable iron)
- Finish: Zinc plated
- Product Weight: 0.5800 lbs
- Trade Size: 1/2 inch
- Base Diameter: 49.28 mm (1.94 in)
- Turning Radius: 95.25 mm (3.75 in)
- Base to Conduit Center Height: 79.5 mm (3.13 in)
- Overall Height: 92.2 mm (3.63 in)
- UPC: 783126120356
- Certifications: UL Listed (E-11853), UL Standard ANSI/UL 514B, CSA Certified (009795), CSA Standard C22.2 No. 18
Features
- Designed for conduit installed in poured concrete slabs
- Available in 90° bend configuration for slabs 6” thick and up
- Can be nailed, screwed, or tack-welded to concrete deck forms
- Zinc-plated finish for corrosion resistance
- Constructed of durable malleable iron
- Compliant with NEC/CEC standards for ordinary commercial and industrial locations
