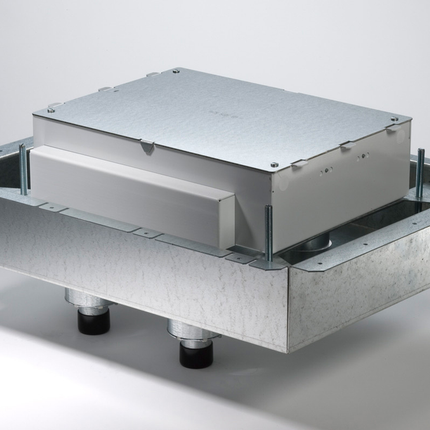

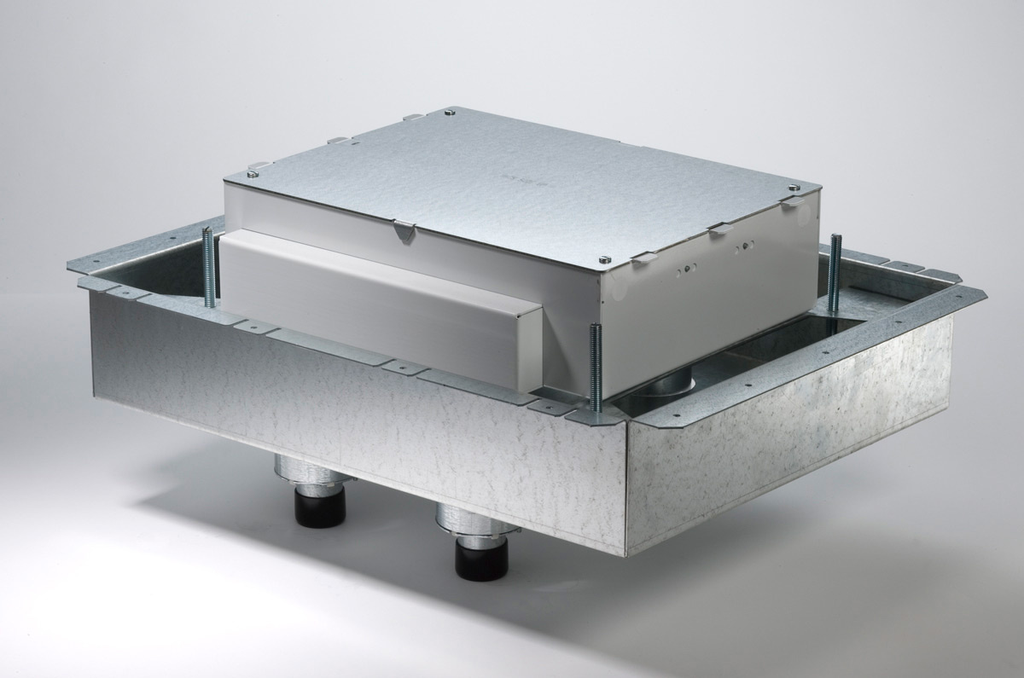

EFB6S-FC1122 Evolution Series 6-Gang Fire-Classified Floor Box

Evolution™ Series Floor Boxes by Wiremold are designed to provide a versatile and high-capacity solution for power, audio/video, and communication services in commercial environments. The EFB6S-FC1122 model is a fire-classified floor box engineered for easy installation across multiple floor types including wood, concrete, and raised floors, making it suitable for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers. Its design supports evolving service needs in offices, conference rooms, stages, and entertainment venues while meeting UL fire rating requirements for up to 3 hours.

Specifications

• Manufacturer Part #: EFB6S-FC1122
• Material: Steel
• Dimensions (L x W x D): 21.75 in x 17.25 in x 4.25 in
• Cubic Capacity: 32 in³
• Cable Entry: Conduits
• Order Minimum: 1 unit
• Product Weight: 47 lbs
• Country of Origin: United States
• Made in USA: Yes
• Construction: Assembled
• Fire Classification: 1, 1½, 2, 3-hour UL rated
• Service Feeds: (2) 1¼" trade size & (2) 2" trade size
• Height Adjustment Range: 2" to 6½"

Features

• Multi-functional floor box suitable for various floor constructions including wood, concrete, and raised floors
• Fully adjustable pre- and post-concrete pour installation
• Finished interior with removable modules for easy reconfiguration of services
• High capacity to accommodate large audio/video, power, and communication requirements
• TopGuard™ protection to prevent water, dirt, and debris ingress
• Fire-classified design ensures compliance with UL fire rating codes up to 3 hours

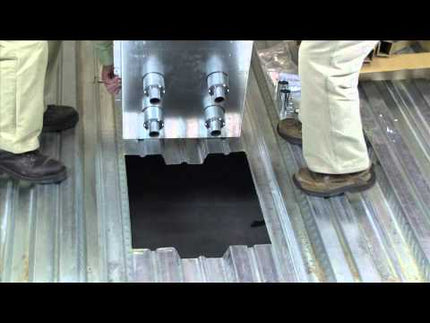

• Installation from the top side of the floor simplifies jobsite productivity and safety

Downloads & Links

• Evolution Series Fire Classified Floor Boxes
• Evolution Floor Box Cover Flip Chart
• Fire Classified Floor Boxes DIV 26
• UL Fire Classified Floor Boxes
• Evolution Floor Box BIM Model
• cULus Fire Classification
• Evolution Series Sell Sheet
• Fire-Classified Floor Boxes - Evolution Series
• Evolution Series Floor Boxes Fire Classified
• Spec Sheet
• ULC Fire Classification
• Fire-Classified Floorbox Part List - COO
• Fire Classified Floor Boxes DIV 16
• Evolution Series Floor Box
