Features

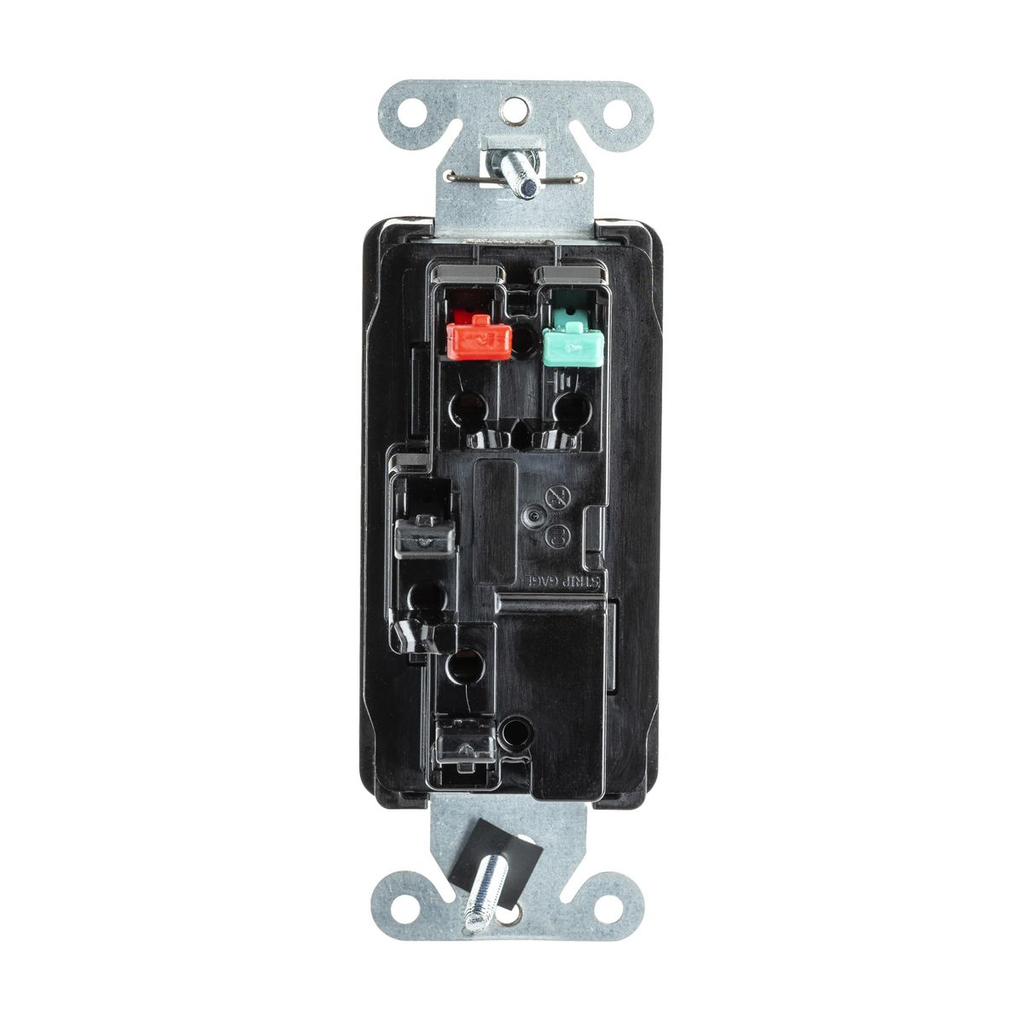

• Back wired srewless termination for faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Strip gauge for accurate wiring
• Screwless Termination

Specifications

• Country of Origin: China
• Width: 2.100 in
• Each - Width: 2.100 in
• Industry Standard(s): UL20/CSA C22.2 No.111-18;Fed Spec is W-S-896;NEMA® BI-WD and WD-6
• Action: Rocker
• Actuator: Decorator
• Amperage Rating: 20 A
• Application: Commercial
• Color: White
• Connection: Spring Termination
• Contact Configuration: Two Position
• Contact Rating: 20A
• Enclosure: None
• Environmental Conditions: UL 94V-2
• Mounting: Strap
• Number of Functions: 2 (on/off)
• Number of Poles: Single Pole
• Operating Cycles: Minimum 4.8 times rated current for 100 cycles
• Operating Temperature: Max. continuous: 75°C; Min. continuous: -40°C without impact
• Special Features: Screwless Termination
• Standard: UL20/CSA C22.2 No.111-18;Fed Spec is W-S-896;NEMA® BI-WD and WD-6
• Type: Switch
• Voltage Rating: 120/277 V
• Contact Resistance: Per UL 20
• Enclosure Type: None
• Insulation: #14 AWG min. - #10 AWG max. solid and stranded copper wire only
• Mounting Type: Strap
• Number Of Poles: Single Pole
• Style: Single Pole
• Class Code: A16
• Freight Class Code: 06168002
• Harmonization Code: 8536509040
• Image Actual Or Representative: A
• Sub Class Code: A16A250
• Material: Polycarbonate
• Series: EdgeConnect™
• Base Unit of Measure: EA
• BOX SIZE: 4.250x8.350x4.350 (in)
• Carton - Gross Weight per Pack: 1.500 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585964546
• Carton - Total Units: 10
• Case Weight: 10.150 lb.
