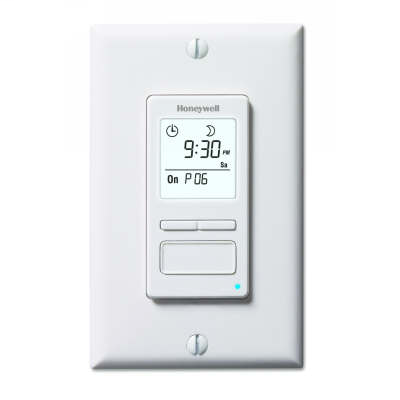

EconoSwitch™ for lights and motors with Solar Timetable, White – Programmable Wall Switch

The Honeywell EconoSwitch™ is a programmable wall switch designed for automatic control of indoor and outdoor lights, pool pumps, and fans. It offers reliable and convenient operation, ideal for electrical distributors and lighting solutions providers seeking efficient control devices. The switch supports single pole and three-way installations, making it suitable for various wiring configurations in residential and commercial applications.

Specifications

• Manufacturer: Honeywell
• Manufacturer Part #: PLS750C1000/U
• Frequency: 60 hertz
• Ambient Temperature Range: -15 to 50 degrees Celsius
• Product Weight: 0.4000 lbs
• UPC: 085267838764
• Voltage Rating: 120 VAC (per installation addendum)
• Load Rating: 1800 W, 1 HP (per product series data)

Features

• Solar timetable with automatic daylight savings adjustment based on sunset/sunrise times
• 3-button easy-to-use interface for programming and operation
• Large backlit screen with optional nightlight mode
• Random mode simulates presence for enhanced security during absence
• Hidden programming buttons behind flap door that also functions as an On/Off switch
• Compatible with single pole and three-way installations
• Available in white color
• Designed for easy installation by contractors

Downloads & Links

• Sales/Promotional Materials-Sell Sheet for PLS5XX and PLS7XX EconoSwitch Programmable Wall Switches for Electrical Channel
• Installation Materials-Installation Addendum
• Sales/Promotional Materials-Sell Sheet for PLS5XX and PLS7XX EconoSwitch Programmable Wall Switches
• Operator/Owner Materials-User Guide for the PLS750C and PLS751C 7-day Solar Programmable Wall Switch (English, French, Spanish)
