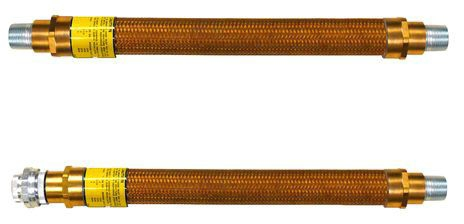

ECGJH-75-36 Explosionproof Flexible Conduit Coupling

The ECGJH-75-36 is an explosionproof flexible conduit coupling designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). It is suitable for hazardous locations requiring durable, watertight, and dust-ignitionproof fittings. This product is ideal for electrical distributors and switchgear suppliers needing reliable conduit solutions in environments with vibration or movement, or where rigid conduit bending is difficult.

Specifications

• Name: ECGJH-75-36, Explosionproof Flexible Conduit Coupling
• Application: For Conduit
• Material: Brass Tube
• Connection: Male Nipple
• Length: 36 Inch
• Product Weight: 5.0000 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: ECGJH-75-36
• UPC: 783126116755

Features

• Explosionproof, dust-ignitionproof, and watertight construction
• Constructed from brass tubing with bronze outer braid and insulating liner
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity
• Heavy-duty design resists mechanical abuse
• Electrical conductivity equivalent to rigid conduit on a similar length basis‚Äîno bonding jumper required
• Interior insulating liner protects conductors from abrasion under vibrating conditions
• Both end fittings are female, each furnished with a removable male nipple
• Suitable for use in Class I, Division 1 and 2 hazardous locations (Groups A, B, C, D), Class II, Division 1 and 2 (Groups E, F, G), and Class III environments
