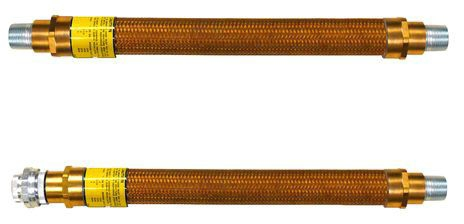

ECGJH-50-24 Explosionproof Flexible Conduit Coupling

The ECGJH-50-24 is an explosionproof flexible conduit coupling designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). Manufactured by O-Z Gedney, this coupling is intended for conduit applications where vibration, movement, or difficult bends are present. It offers a heavy-duty, watertight, and dust-ignitionproof solution suitable for hazardous locations, making it a reliable choice for electrical distributors and lighting solutions providers requiring secure and flexible wire and cable connections.

Specifications

• Application: For Conduit
• Material: Brass Tube
• Connection: Male Nipple
• Length: 24 Inches
• Product Weight: 2.75 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: ECGJH-50-24
• UPC: 783126116410

Features

• Explosionproof, dust-ignitionproof, and watertight construction
• Flexible coupling constructed from brass tubing with bronze outer braid and insulating liner
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity
• Heavy-duty design resists mechanical abuse
• Electrical conductivity equivalent to rigid conduit on a similar length basis, eliminating the need for bonding jumpers
• Interior insulating liner protects conductors from abrasion under vibrating conditions
• Both end fittings are female, each furnished with a removable male nipple
• Suitable for use in hazardous locations compliant with NEC/CEC Class I, Division 1 & 2, Groups A, B, C, D; Class II, Division 1 & 2, Groups E, F, G; and Class III
