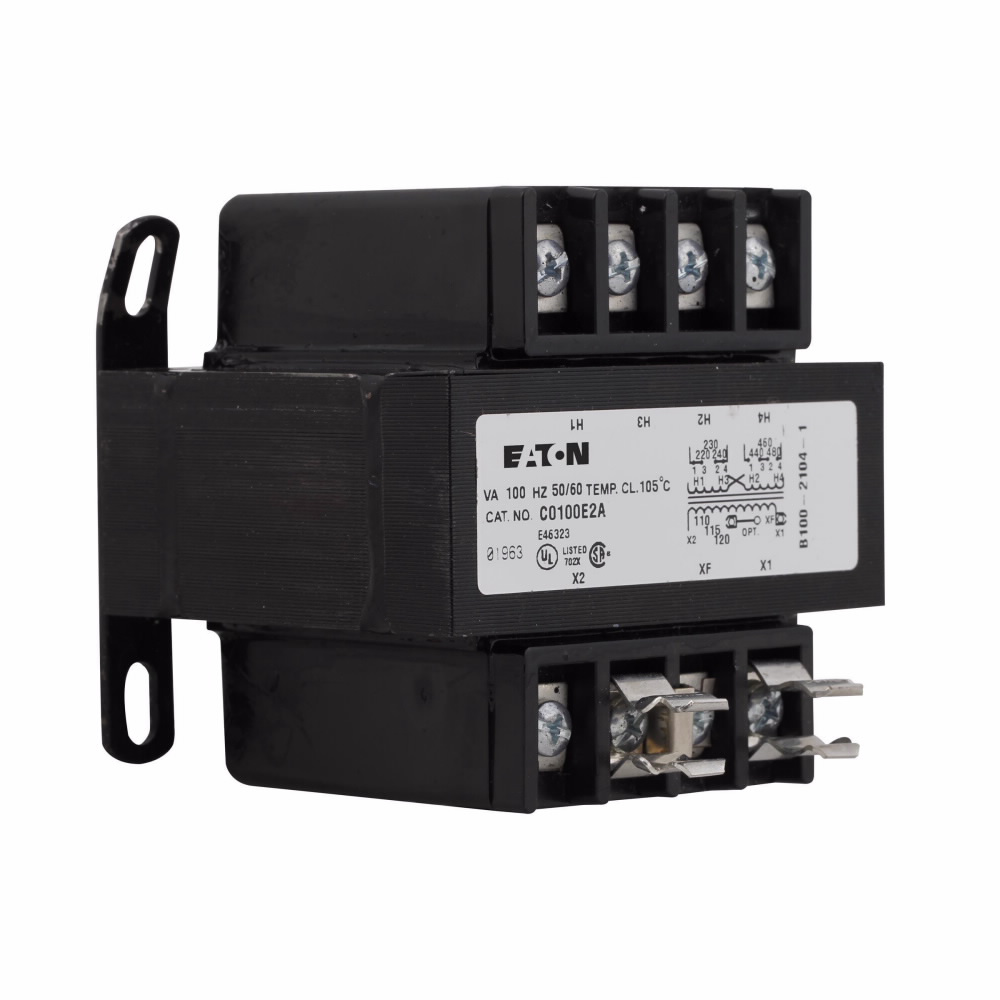

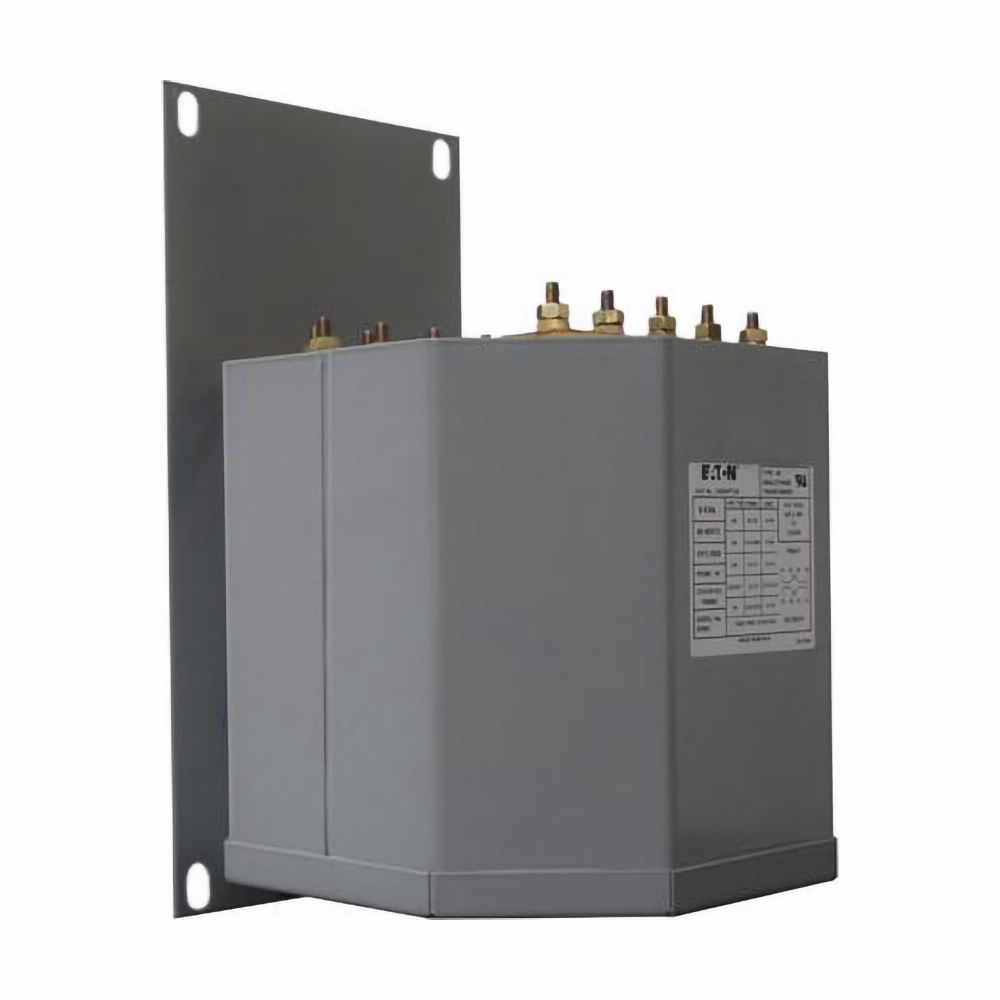

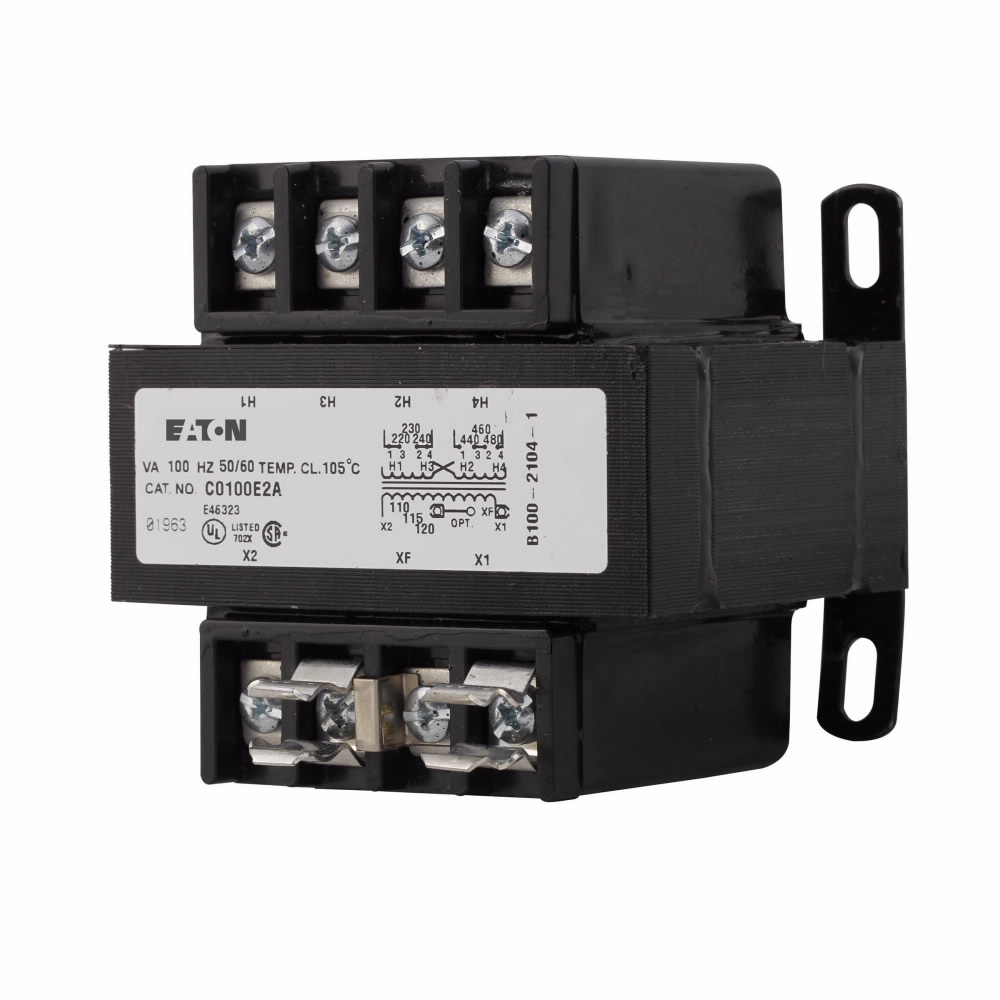

Eaton Type MTE Industrial Control Transformer – Electrical Distributor Lighting Solutions

The Eaton Type MTE industrial control transformer is designed for reliable electrical distribution and control applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable transformers with stable performance. This transformer offers multiple primary voltage options including 200/220/440V, 208/230/460V, and 240/480V, with secondary voltages of 23/110V, 24/115V, and 25/120V. Its compact design and stainless steel enclosure make it suitable for industrial environments needing corrosion resistance and robust protection. The transformer uses copper magnet wire and is rated for 45 VA with a 55°C temperature rise, providing efficient and safe voltage transformation for wire and cable installations in lighting and control circuits.

Specifications

• Manufacturer: Eaton
• Model: Type MTE
• Primary Voltage (PV): 200/220/440V, 208/230/460V, 240/480V
• Secondary Voltage (SV): 23/110V, 24/115V, 25/120V
• Power Rating: 45 VA
• Temperature Rise: 55°C
• Enclosure Material: Stainless Steel
• Product Weight: 8 lbs
• Dimensions (L x W x H): 4 in x 4 in x 3 in
• Manufacturer Part Number: C0045E5E
• UPC: 786680083921

Features

• Epoxy encapsulated coils for moisture and contaminant protection in industrial environments
• Copper magnet wire for high-quality, efficient operation
• Laminations of high-quality silicon steel to minimize core losses and optimize performance
• Molded-in terminals designed for maximum durability
• Compact stainless steel enclosure suitable for harsh industrial conditions
