Eaton Type CV Molded Case Circuit Breaker,Molded case circuit breaker,200 A,65 kAIC,Three-pole,#6 - 4/0 Al/Cu,CV,#4/0 kcmil maximum load
SKU: #162386
Part: #CV3200X
UPC: 786685704708
Eaton Type CV Molded Case Circuit Breaker,Molded case circuit breaker,200 A,65 kAIC,Three-pole,#6 - 4/0 Al/Cu,CV,#4/0 kcmil maximum load
SKU: #162386
Part: #CV3200X
UPC: 786685704708
Description

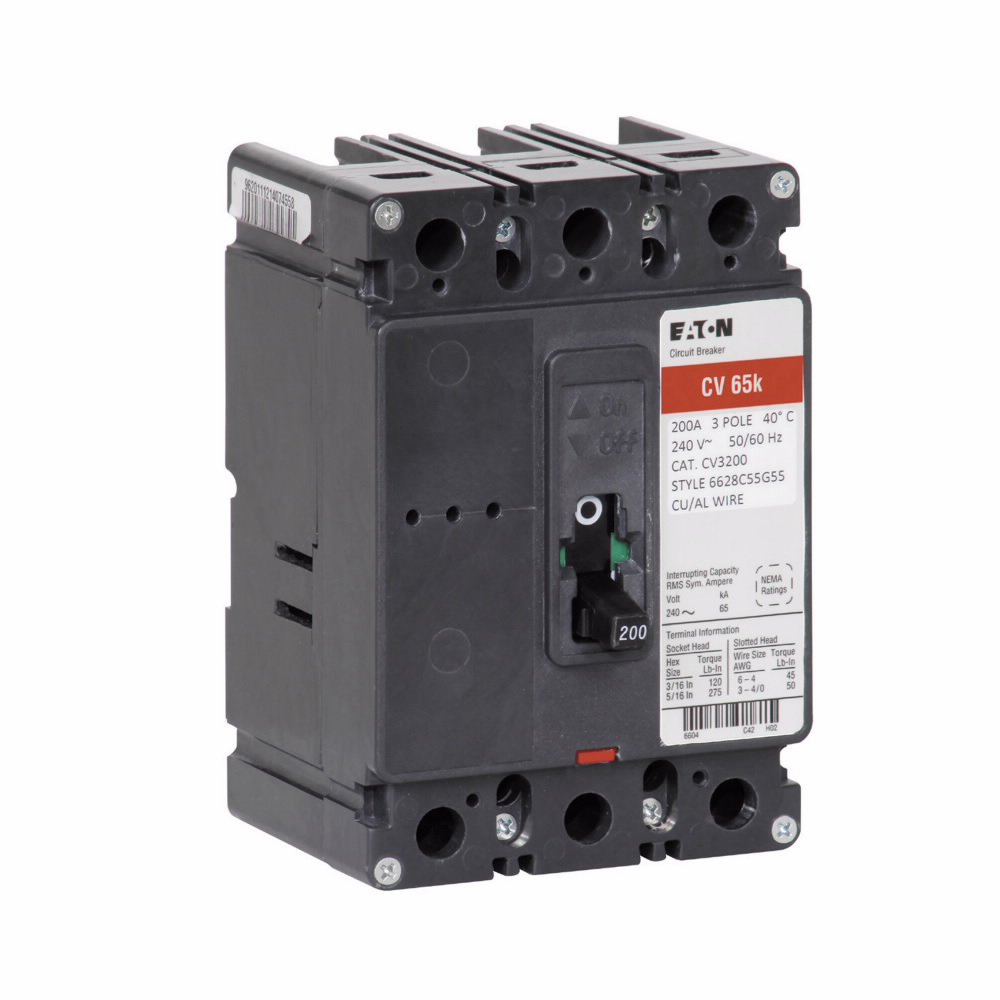

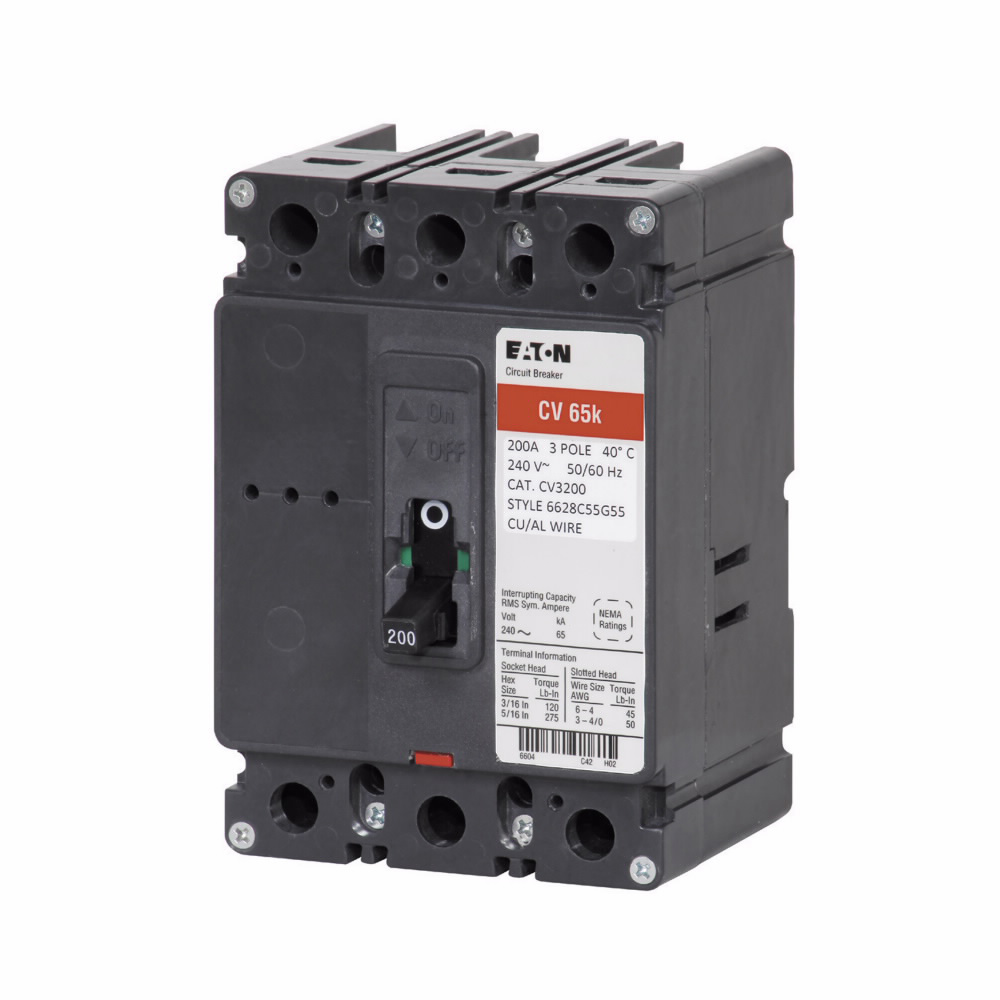

Eaton Type CV Molded Case Circuit Breaker – Molded Case Circuit Breaker
The Eaton Type CV molded case circuit breaker is designed for reliable electrical protection in residential and light commercial applications, commonly used in group metering setups. This three-pole breaker supports wire sizes from #6 to 4/0 aluminum or copper conductors and offers a maximum load capacity of #4/0 kcmil. It is rated for 200 amperes with a 65 kA interrupting capacity at 240 volts, suitable for safeguarding electrical circuits from overloads and short circuits. Eaton, a leading electrical distributor and switchgear supplier, manufactures this breaker to meet UL 489 and CSA 22.2 No. 5 standards, ensuring compliance and safety.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: CV3200X
- Amperage: 200 amperes
- Interrupting Capacity: 65 kAIC at 240 V
- Poles: Three-pole
- Wire Size Range: #6 - 4/0 Al/Cu
- Maximum Load: #4/0 kcmil
- Dimensions (W x H x L): 5 in x 5 in x 7.5 in
- Product Weight: 4.4 lbs
- UPC: 786685704708
Features
- Available in two- and three-pole configurations from 60 to 225 amperes
- Interrupting capacities of 42, 65, and 100 kAIC at 120/240 Vac
- Complies with UL 489 and CSA 22.2 No. 5 standards
- Suitable for tenant main circuit breaker applications in group metering
- Replacement option for Eaton CHH circuit breakers
- Constructed with durable molded-case design for reliable electrical protection
