Eaton Type CV Molded Case Circuit Breaker,Molded case circuit breaker,200 A,42 kAIC,Three-pole,#6 - 4/0 Al/Cu,CV,#4/0 kcmil maximum load
SKU: #162425
Part: #CVS3200X
UPC: 786685704265
Eaton Type CV Molded Case Circuit Breaker,Molded case circuit breaker,200 A,42 kAIC,Three-pole,#6 - 4/0 Al/Cu,CV,#4/0 kcmil maximum load
SKU: #162425
Part: #CVS3200X
UPC: 786685704265
Next day delivery
Description

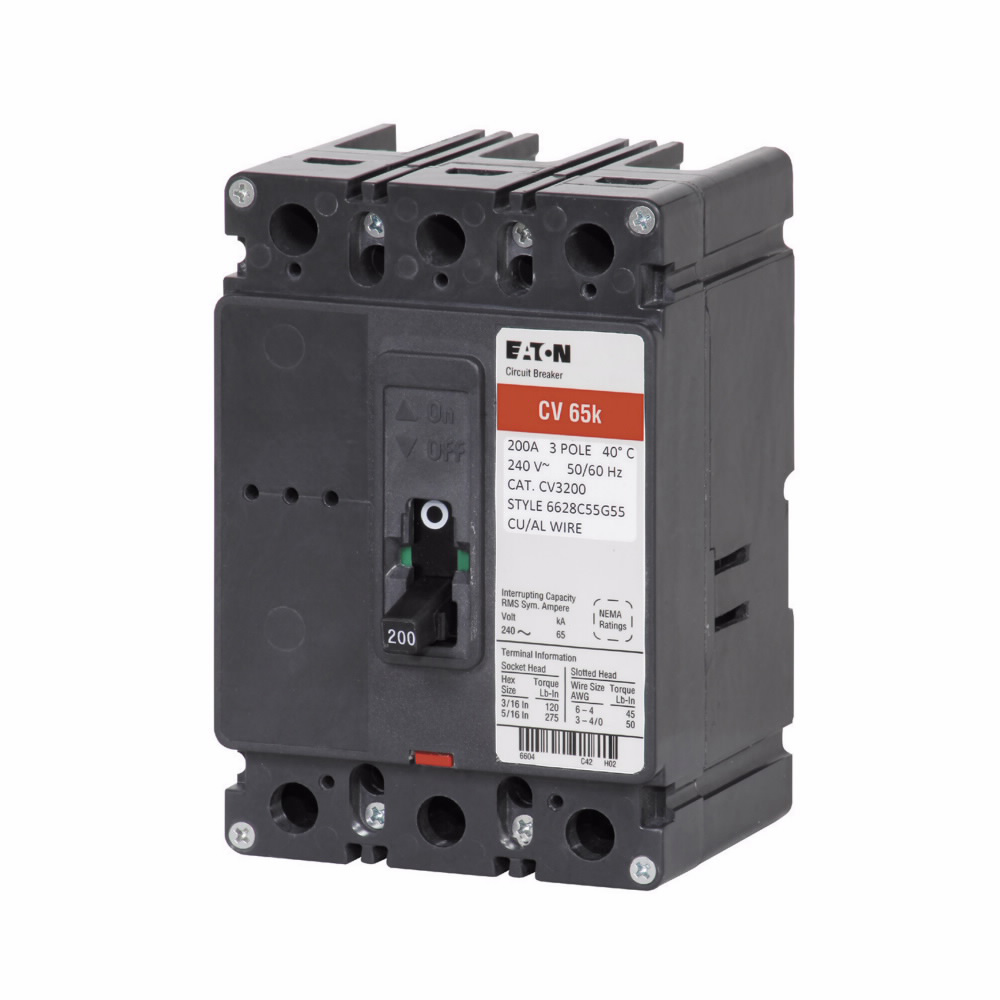

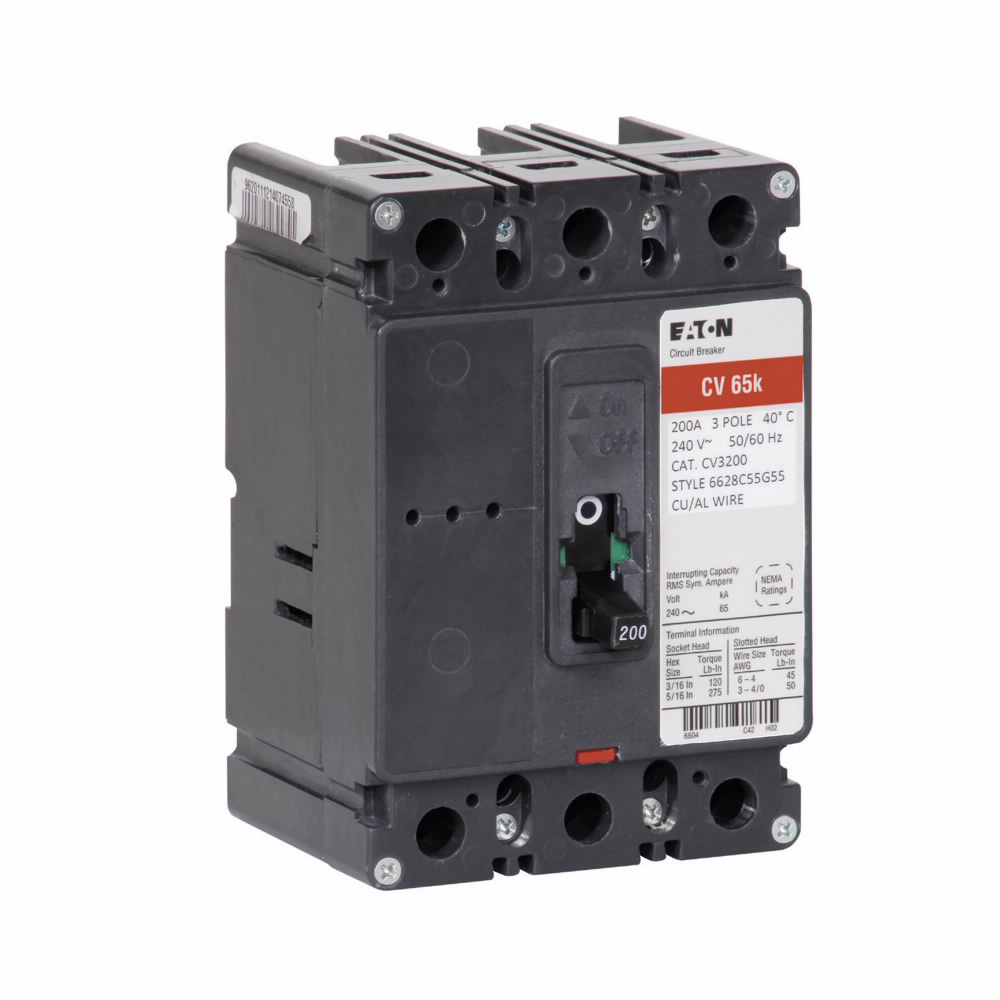

Eaton Type CV Molded Case Circuit Breaker 200A Electrical Distributor
The Eaton Type CV Molded Case Circuit Breaker is designed for residential and light commercial electrical distribution applications, particularly group metering. This three-pole breaker provides reliable protection for electrical circuits with a 200 ampere rating and a high interrupting capacity of 42 kiloamps at 120/240 Vac. Eaton's CV breakers are suitable for use as tenant main circuit breakers and as replacements for Eaton CHH circuit breakers, ensuring compatibility and ease of integration within existing switchgear and wire and cable systems.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: CVS3200X
- Amperage: 200 amperes
- Interrupt Rating: 42 kiloamps
- Number of Poles: Three-pole
- Wire Size Compatibility: #6 - 4/0 Aluminum/Copper
- Maximum Load Wire Size: #4/0 kcmil
- Dimensions (W x H x L): 5 in x 5 in x 7.5 in
- Product Weight: 5 lbs
- UPC: 786685704265
Features
- Available in 42 kAIC interrupting rating for enhanced short-circuit protection
- Designed for group metering applications and tenant main circuit breaker use
- Meets UL 489 and CSA 22.2 No. 5 standards for safety and performance
- Compatible with copper and aluminum wiring (#6 to 4/0 AWG)
- Compact size with a rugged molded case construction for durability
- Replacement option for Eaton CHH circuit breakers to simplify upgrades
