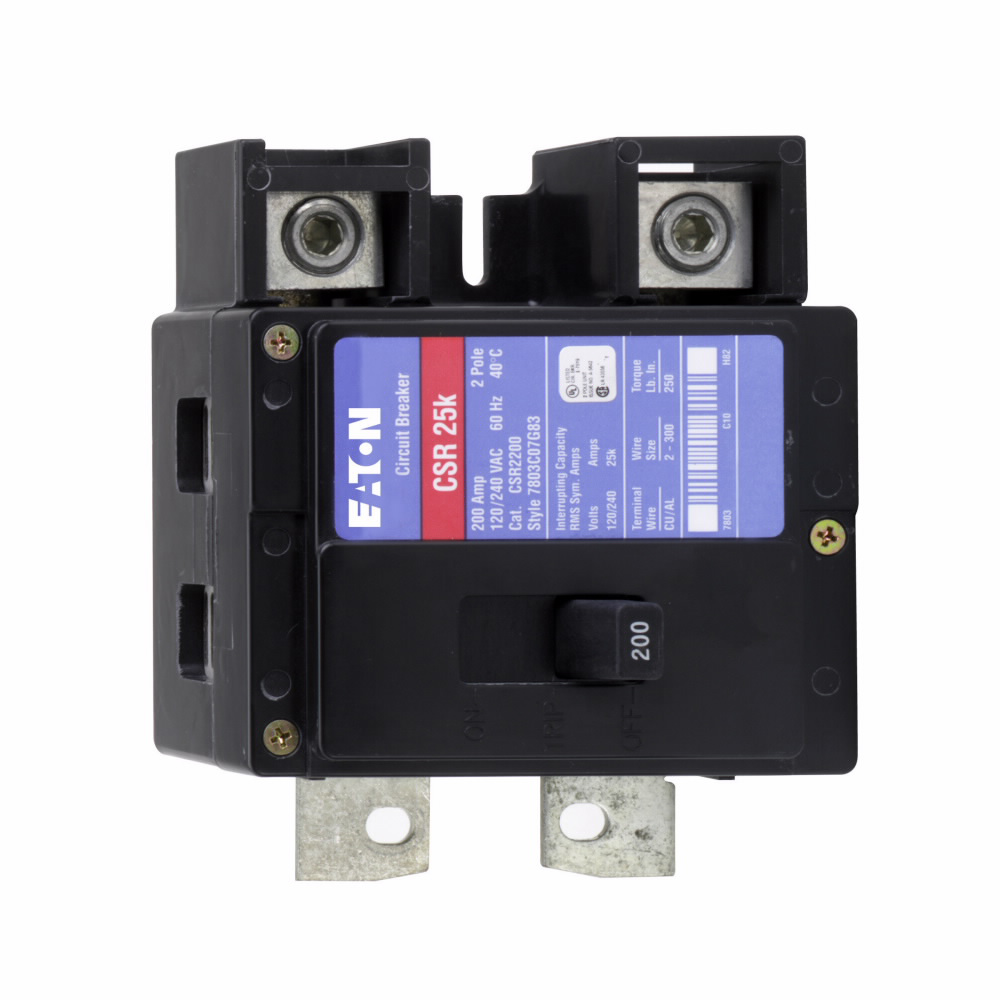

Eaton Type CSR Standard Circuit Breaker,Standard circuit breaker,200 A,25 kAIC,Two-pole,120/240 V,CH,#2 - 300 kcmil,CSR,For use in type ECC unit enclosures,Single-phase
SKU: #162321
Part: #CSR2200N
UPC: 782113098463
Eaton Type CSR Standard Circuit Breaker,Standard circuit breaker,200 A,25 kAIC,Two-pole,120/240 V,CH,#2 - 300 kcmil,CSR,For use in type ECC unit enclosures,Single-phase
SKU: #162321
Part: #CSR2200N
UPC: 782113098463
Description
Eaton Type CSR Standard Circuit Breaker – Electrical Distributor Circuit Breaker
The Eaton Type CSR Standard Circuit Breaker is designed for residential and light commercial electrical distribution applications. It provides reliable overcurrent protection for branch circuits and feeders, suitable for use in type ECC unit enclosures. This two-pole, 120/240 V, 200 ampere breaker supports wire sizes from #2 to 300 kcmil, offering a 25 kAIC interrupting rating to ensure safety and compliance with electrical codes. Ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking durable, code-compliant circuit protection.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: CSR2200N
- Amperage: 200 amperes
- Number of Poles: 2
- Voltage: 120/240 V
- Interrupting Rating: 25 kAIC
- Wire Size Range: #2 – 300 kcmil
- Dimensions (WxHxL): 4.2 in x 3.52 in x 5.3 in
- Product Weight: 2.5 lbs
- UPC: 782113098463
- Phase: Single-phase
- Application: For use in type ECC unit enclosures
Features
- Standard circuit breaker with quick-make, quick-break switch mechanism
- Thermal-magnetic trip curve reduces nuisance tripping
- Trip-free handle design for safety
- Suitable for use as service equipment
- Meets UL 489, NEMA standards, and Federal Specification W-C 375 b/Gen.
- Silver-flash plated copper bus for superior conductivity and corrosion resistance
- Compatible with #2 to 300 kcmil wire sizes
- Provides protection for residential and light commercial electrical circuits
