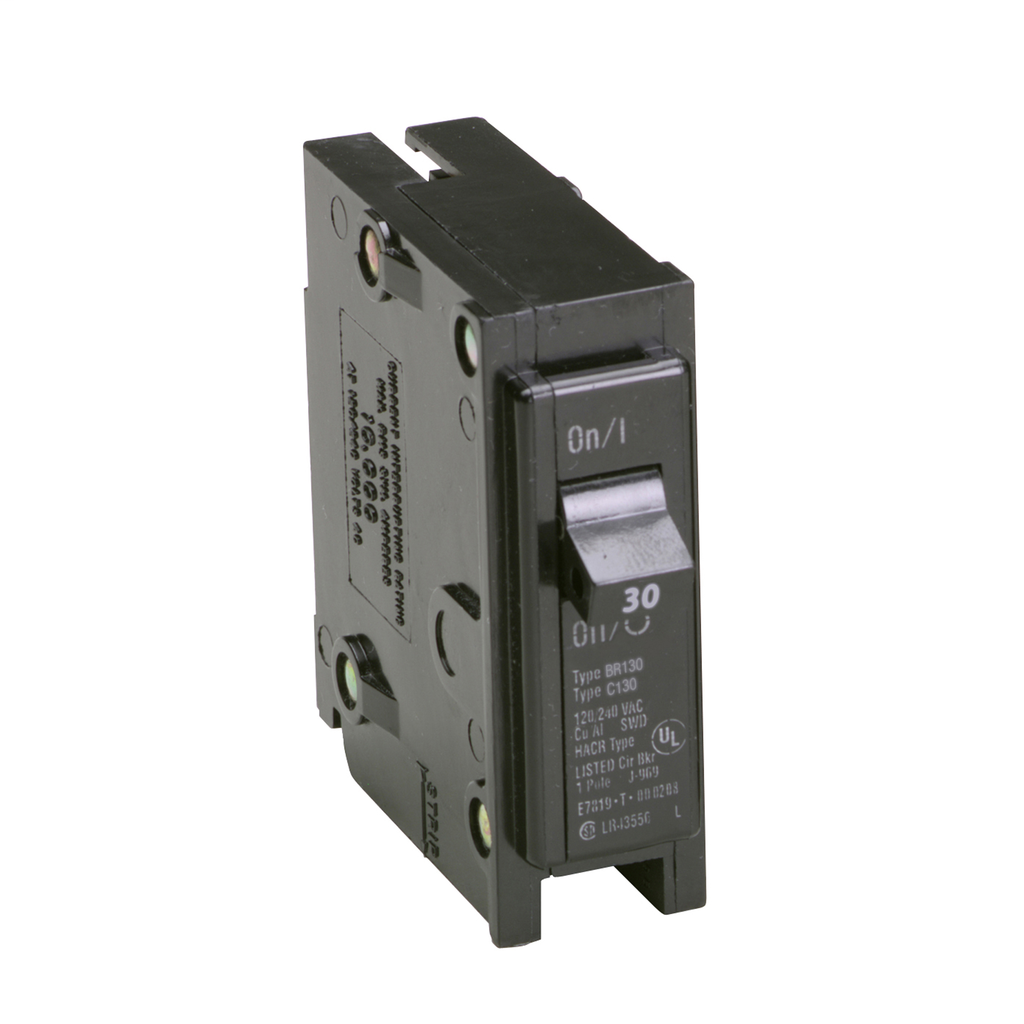

Eaton type BR 1-Inch plug-on circuit breaker - Circuit Breaker

The Eaton type BR 1-Inch plug-on circuit breaker is designed for reliable electrical protection in residential and light commercial applications. This single-pole circuit breaker provides 30 amperes of current interruption with a 10 kiloamps interrupt rating, suitable for safeguarding branch circuits in loadcenters. Its plug-on mounting type allows for straightforward installation and compatibility with Eaton Type BR loadcenters, making it a practical choice for electrical distributors and switchgear suppliers focusing on wire and cable and lighting solutions.

Specifications

• Name: Eaton type BR 1-Inch plug-on circuit breaker
• Amperage: 30 amperes
• Mounting Type: Plug-On
• Number of Poles: 1
• Interrupt Rating: 10 kiloamps
• Manufacturer Part #: BR130
• Voltage Rating: 120/240 V
• Wire Size Range: #14-4 AWG Cu/Al
• Used With: Type BR Loadcenters
• Dimensions: Height 3 IN, Length 3 IN, Width 1 IN
• Product Weight: 0.2900 lb
• UPC: 786676362207
• Certifications: UL 489
• Product Compliance: Federal Specifications Classification W-C375

Features

• Single-pole thermal magnetic circuit breaker with quick-make, quick-break switch mechanism
• Trip-free handle design with thermal-magnetic trip curve to avoid nuisance tripping
• Rated for heating, air conditioning, and refrigeration (HACR) equipment application
• Plug-on mounting for easy, clean installation without pigtail wiring
• Compatible with Eaton Type BR loadcenters for residential and light commercial power distribution
• UL listed under file numbers E11713, E8741, E3624, and E51287 and CSA certified
• Suitable for use as service entrance equipment
• Manufactured by Cutler-Hammer, Eaton
