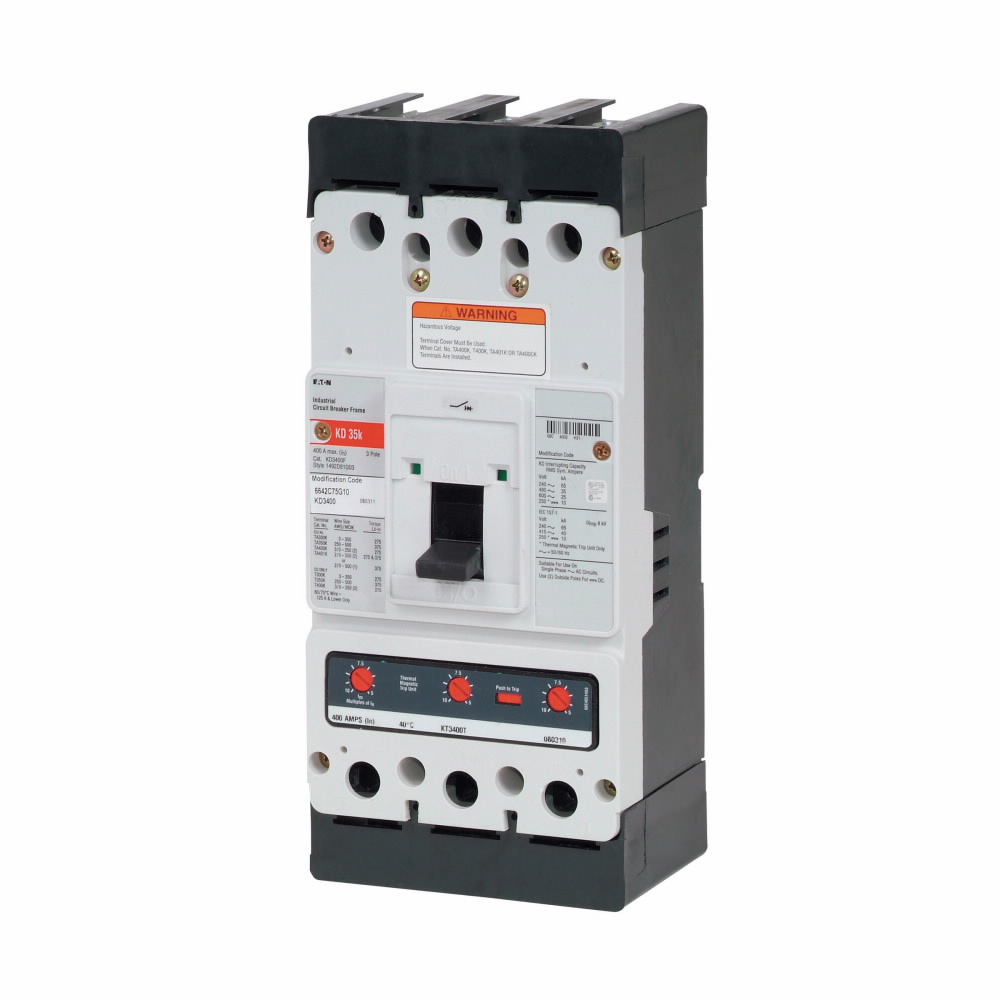

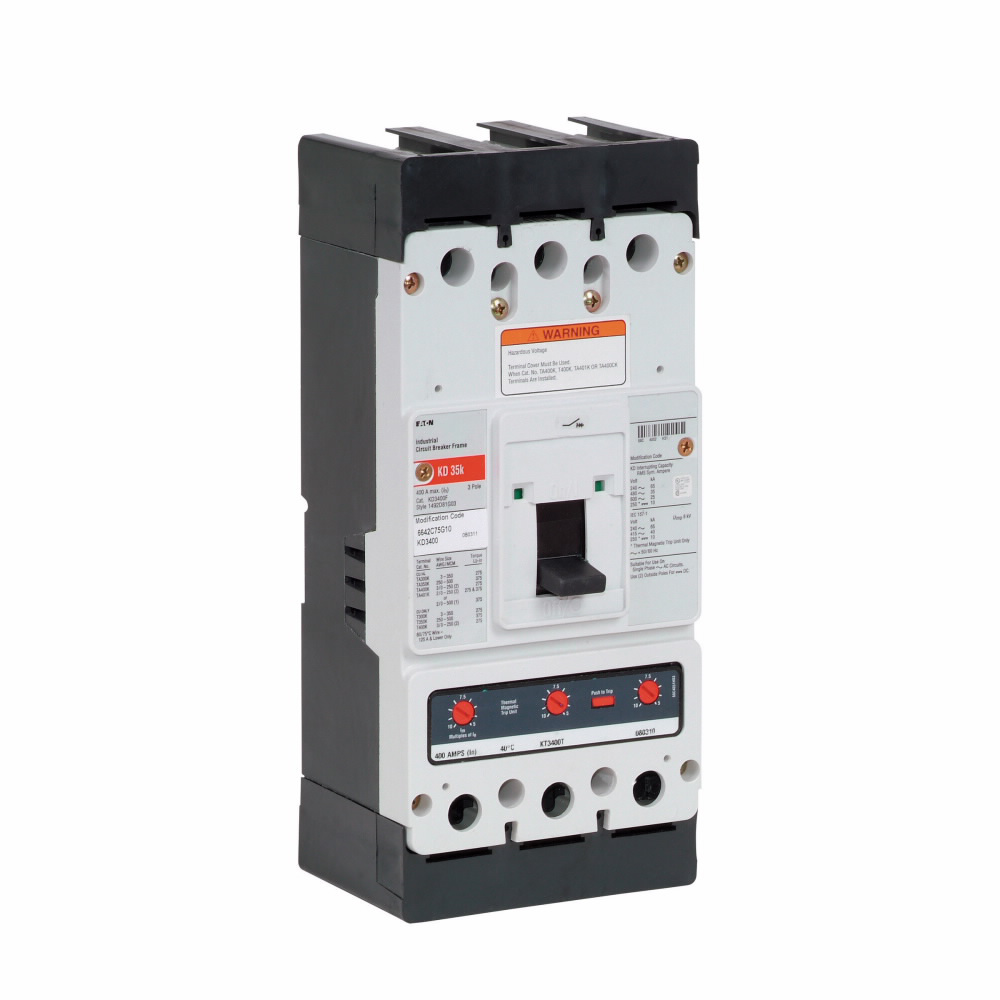

Eaton Series C molded case switch, K-frame, KD, Molded case switch, Fixed thermal, fixed magnetic trip type, Three-pole, 400A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 50/60 Hz
SKU: #166852
Part: #KD3400K
UPC: 786679612163
Eaton Series C molded case switch, K-frame, KD, Molded case switch, Fixed thermal, fixed magnetic trip type, Three-pole, 400A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 50/60 Hz
SKU: #166852
Part: #KD3400K
UPC: 786679612163
Description
Eaton Series C Molded Case Switch 400A Circuit Breaker
The Eaton Series C molded case switch, K-frame KD type, is a fixed thermal and fixed magnetic trip circuit breaker designed for industrial electrical distribution and control applications. Rated for 400 amperes and suitable for 600 Vac and 250 Vdc systems, this three-pole breaker offers reliable overcurrent protection with high interrupting capacity, making it an ideal choice for electrical distributors and switchgear suppliers managing medium to high power loads.
Specifications
- Manufacturer: Eaton
- Frame: K
- Circuit Breaker Type: KD
- Amperage: 400 amperes
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupt Rating: 65 kiloamps at 240 Vac, 35 kiloamps at 480 Vac
- Poles: Three-pole
- Frequency: 50/60 Hz
- Dimensions (H x W x D): 5.5 in x 5.5 in x 4.1 in
- Product Weight: 13.15 lbs
- Manufacturer Part Number: KD3400K
- UPC: 786679612163
Features
- Fixed thermal and fixed magnetic trip type for consistent overcurrent protection
- High interrupting capacity (65 kAIC at 240 Vac) suitable for demanding electrical environments
- Compact K-frame design optimizes panel space
- Three-pole configuration supports balanced three-phase power systems
- Reliable switching and protection for wire and cable applications in industrial and commercial settings
