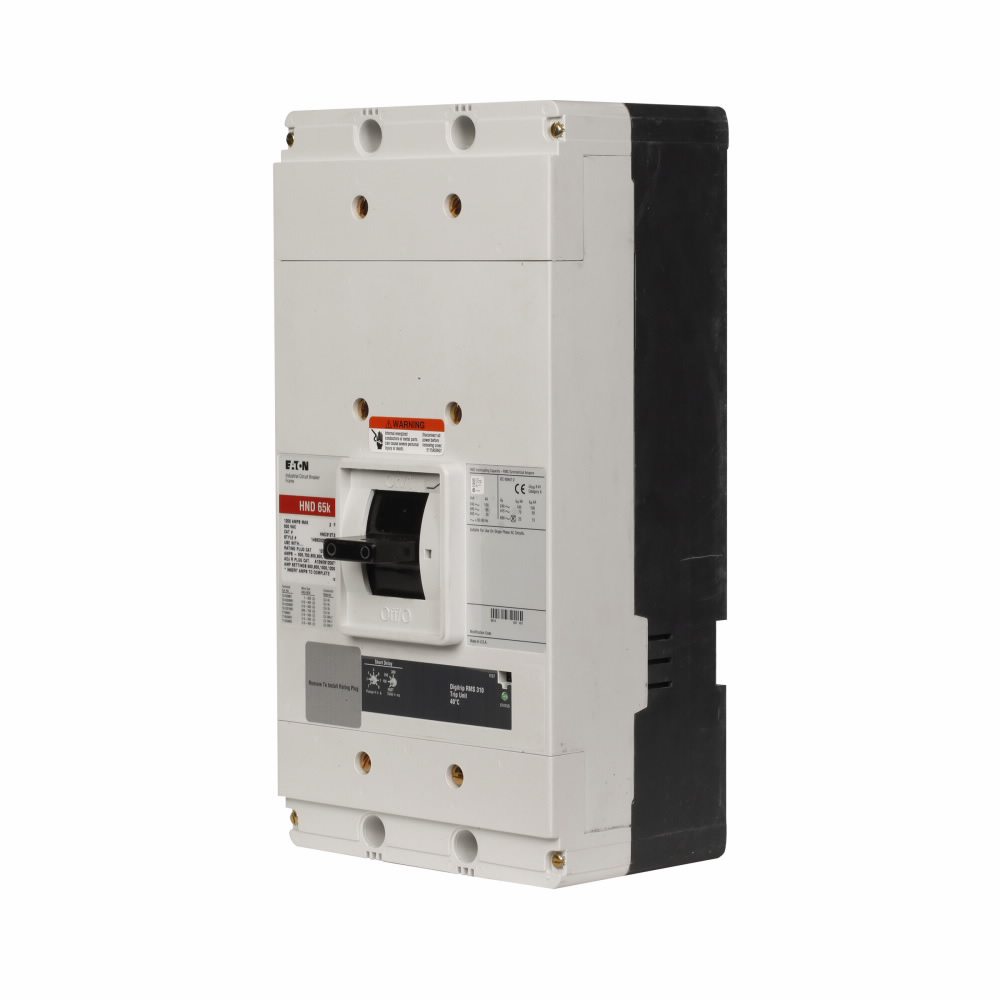

Eaton Series C electronic molded case circuit breaker, NG-frame, ND, Digitrip 310 RMS, Electronic LSG trip, Three-pole, 1200A, 600 Vac, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, Without terminals, 50/60 Hz, 80% rated
SKU: #167388
Part: #ND312T35W
UPC: 786679252680
Eaton Series C electronic molded case circuit breaker, NG-frame, ND, Digitrip 310 RMS, Electronic LSG trip, Three-pole, 1200A, 600 Vac, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, Without terminals, 50/60 Hz, 80% rated
SKU: #167388
Part: #ND312T35W
UPC: 786679252680
Next day delivery
Description
Eaton Series C Electronic Molded Case Circuit Breaker – Industrial Electrical Protection
The Eaton Series C electronic molded case circuit breaker (NG-frame, ND type) is designed for reliable electrical protection in industrial and commercial applications. This three-pole circuit breaker is rated for 1200 amperes and 600 Vac, providing high interrupting capacity with 85 kAIC at 240 Vac and 50 kAIC at 480 Vac. It operates at 50/60 Hz frequency and features an electronic Digitrip 310 RMS trip unit with an electronic LSG trip function. The breaker is supplied without terminals, supporting flexible wiring options for electrical distributors, lighting solutions, wire and cable management, and switchgear supplier needs.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: ND312T35W
- Frame: NG
- Circuit Breaker Type: ND
- Amperage: 1200 amperes
- Voltage Rating: 600 Vac
- Interrupting Capacity: 85 kAIC at 240 Vac, 50 kAIC at 480 Vac
- Poles: Three-pole
- Frequency: 50/60 Hz
- Dimensions (W x H x L): 8.25 in x 8.25 in x 5.5 in
- Product Weight: 51.45 lbs
Features
- Digitrip 310 RMS electronic trip unit for precise protection and monitoring
- Electronic LSG trip for long-time, short-time, and ground fault protection
- High interrupting capacity suitable for demanding industrial environments
- Compact NG-frame design for space-efficient panel installations
- Supplied without terminals, allowing for customized wiring and connection solutions
