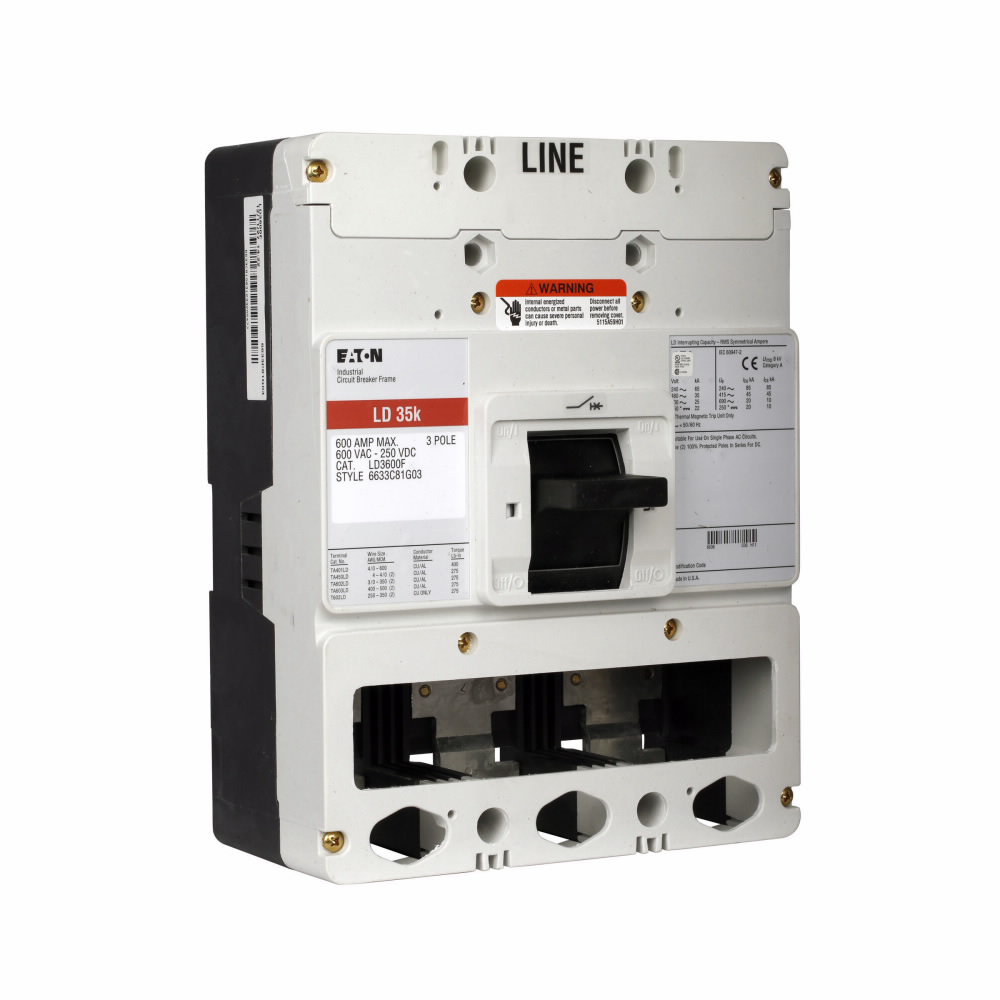

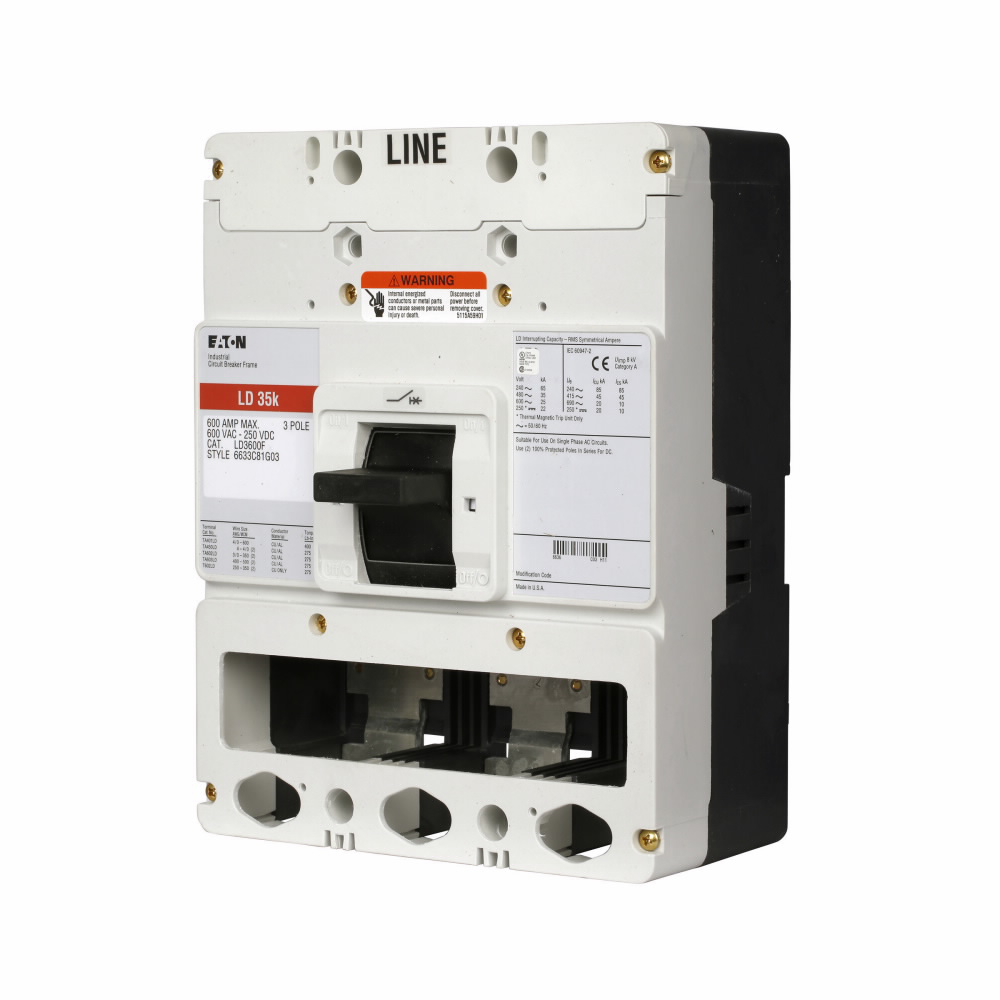

Eaton Series C electronic molded case circuit breaker, L-frame, LDCB, Frame only, Digitrip 310 RMS, Electronic LS trip type, Three-pole, 600A, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Without terminals, 50/60 Hz
SKU: #167053
Part: #LDCB3600FT33W
UPC: 786679281161
Eaton Series C electronic molded case circuit breaker, L-frame, LDCB, Frame only, Digitrip 310 RMS, Electronic LS trip type, Three-pole, 600A, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Without terminals, 50/60 Hz
SKU: #167053
Part: #LDCB3600FT33W
UPC: 786679281161
Description
Eaton Series C electronic molded case circuit breaker, L-frame, 600A Molded Case Circuit Breaker
The Eaton Series C electronic molded case circuit breaker (MCCB) is designed for low voltage power distribution and industrial applications. This L-frame breaker features Digitrip 310 RMS electronic LS trip type with a three-pole configuration, rated at 600 amperes. It offers high interrupting capacity with 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, suitable for protecting electrical equipment and personnel in demanding environments. Eaton, a leading electrical distributor and switchgear supplier, provides this breaker as a frame-only unit without terminals, supporting 50/60 Hz systems.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: LDCB3600FT33W
- Frame: L
- Amperage: 600 amperes
- Poles: Three-pole
- Interrupting Capacity: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
- Trip Unit Type: Digitrip 310 RMS, Electronic LS trip
- Frequency: 50/60 Hz
- Dimensions (H x W x L): 11 in x 11 in x 8 in
- Product Weight: 26 lbs
- Without terminals (frame only)
Features
- Electronic trip unit with advanced Digitrip 310 RMS technology for precise protection
- High interrupting capacity suitable for industrial power distribution
- Three-pole design for robust three-phase circuit protection
- Compact L-frame size supports up to 600 amperes continuous current
- Compatible with Eaton’s Series C family of molded case circuit breakers
- Designed for use in switchgear and motor control centers
