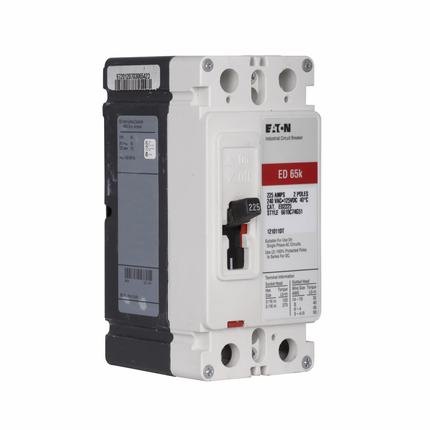

Eaton Series C complete molded case circuit breaker, Series C, F-frame molded case circuit breaker, 200 A, Two-pole, Line and load terminals, Fixed thermal magnetic trip, ED breaker, 65 kAIC at 240 Vac
SKU: #164682
Part: #ED2200L
UPC: 786679454060
Eaton Series C complete molded case circuit breaker, Series C, F-frame molded case circuit breaker, 200 A, Two-pole, Line and load terminals, Fixed thermal magnetic trip, ED breaker, 65 kAIC at 240 Vac
SKU: #164682
Part: #ED2200L
UPC: 786679454060

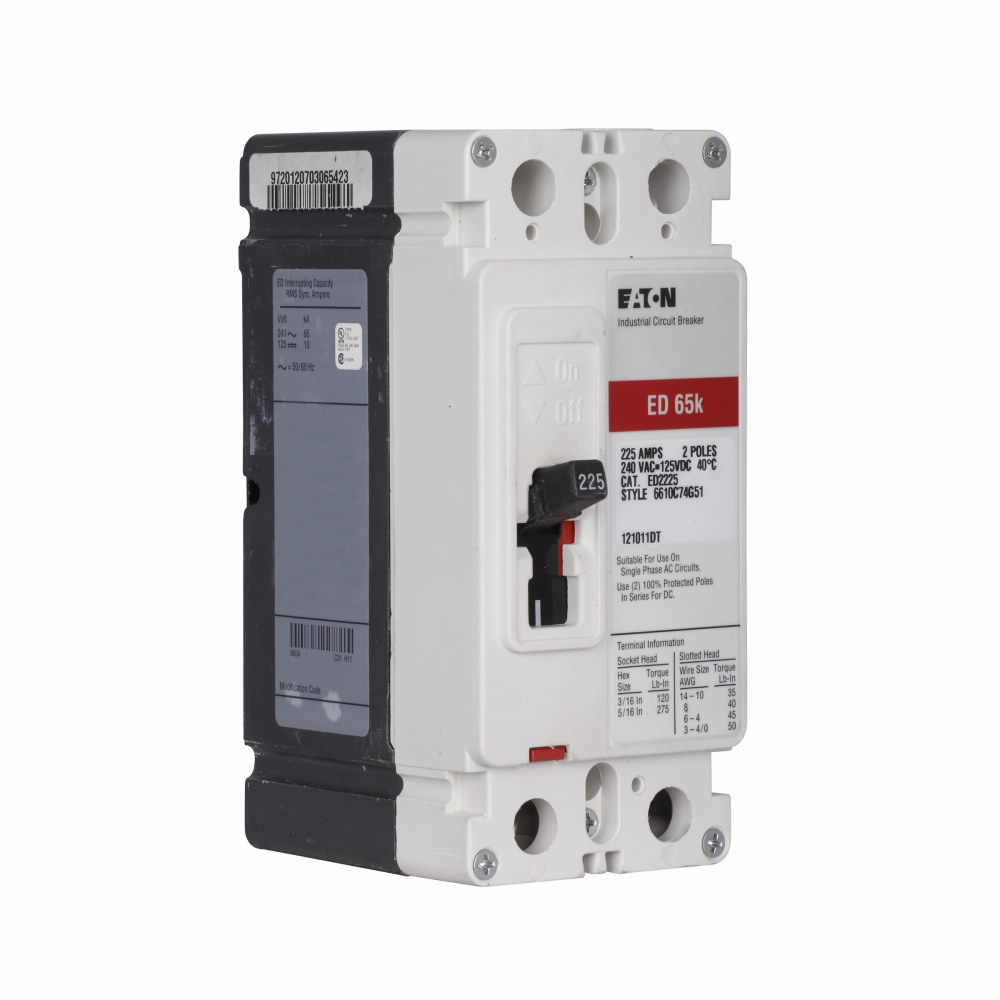

Description

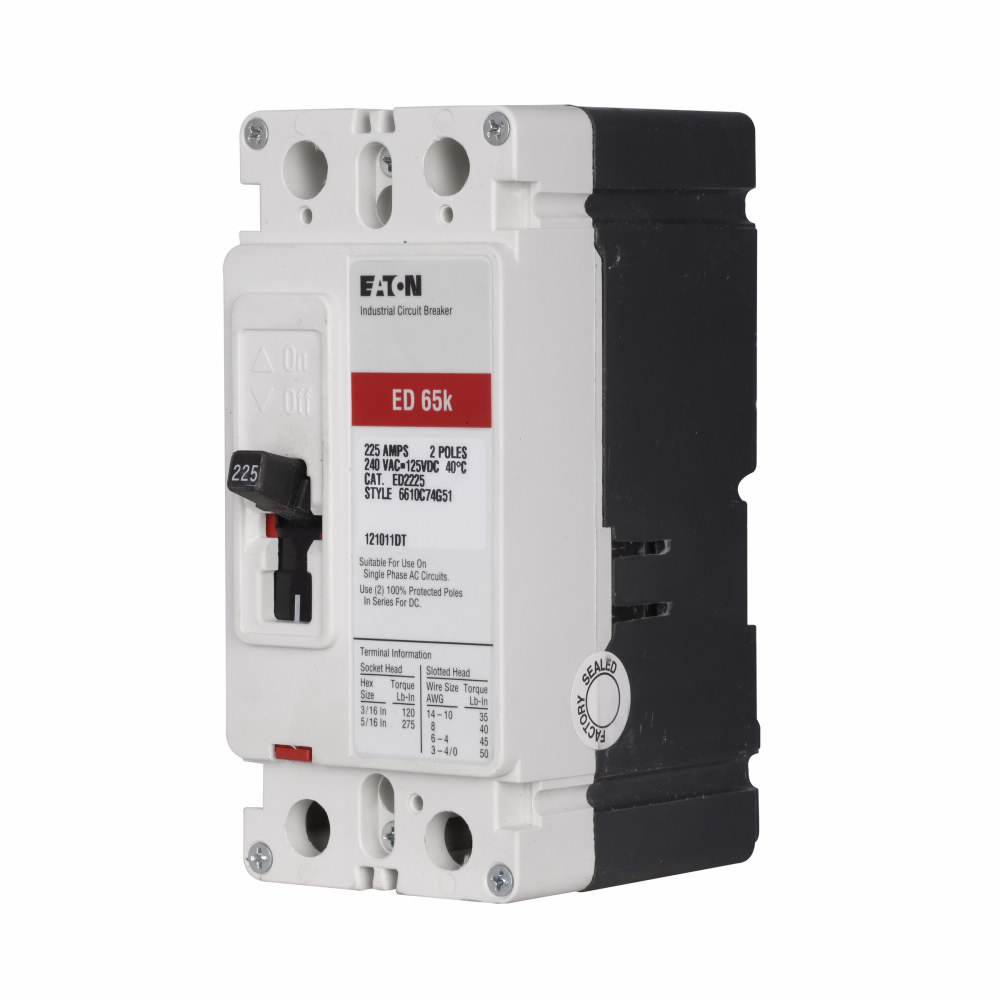

Eaton Series C F-Frame Molded Case Circuit Breaker 200A
The Eaton Series C complete molded case circuit breaker, F-frame, is designed for reliable electrical protection in commercial and industrial applications. This 200 ampere, two-pole breaker features fixed thermal magnetic trip units and is rated for a 65 kiloamp interrupting capacity at 240 Vac. It is ideal for use by electrical distributors and switchgear suppliers requiring robust circuit protection in power distribution systems.
Specifications
- Manufacturer: Eaton
- Frame: F
- Amperage: 200 amperes
- Number of Poles: 2
- Interrupt Rating: 65 kiloamps
- Dimensions (HxWxD): 2.75 in x 2.75 in x 3.38 in
- Product Weight: 3.0 lbs
- UPC: 786679454060
- Manufacturer Part #: ED2200L
Features
- Fixed thermal magnetic trip unit for dependable overcurrent protection
- Line and load terminals for straightforward installation
- Two-pole design suitable for single-phase AC circuits
- 65 kA interrupting capacity at 240 Vac ensures high fault clearing capability
- Compact F-frame size optimized for space-saving panel layouts
- Reliable Eaton brand quality with global certifications
