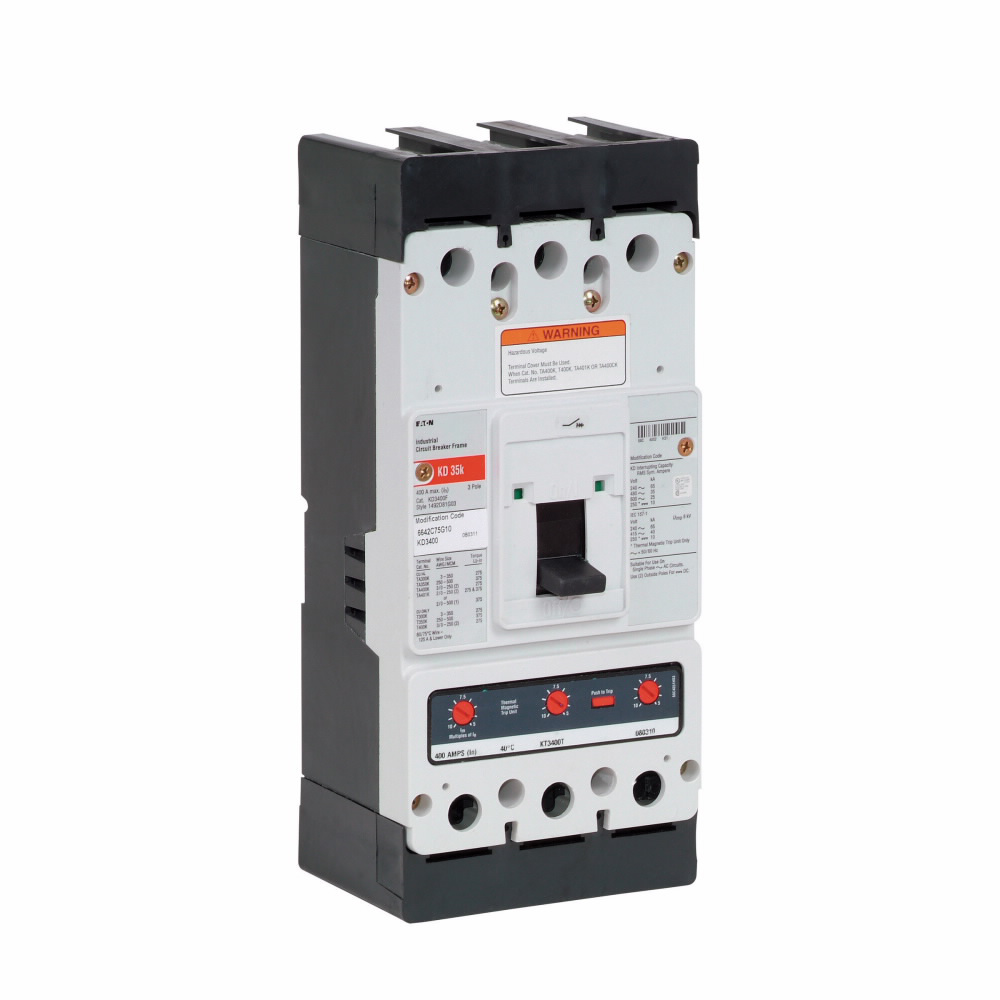

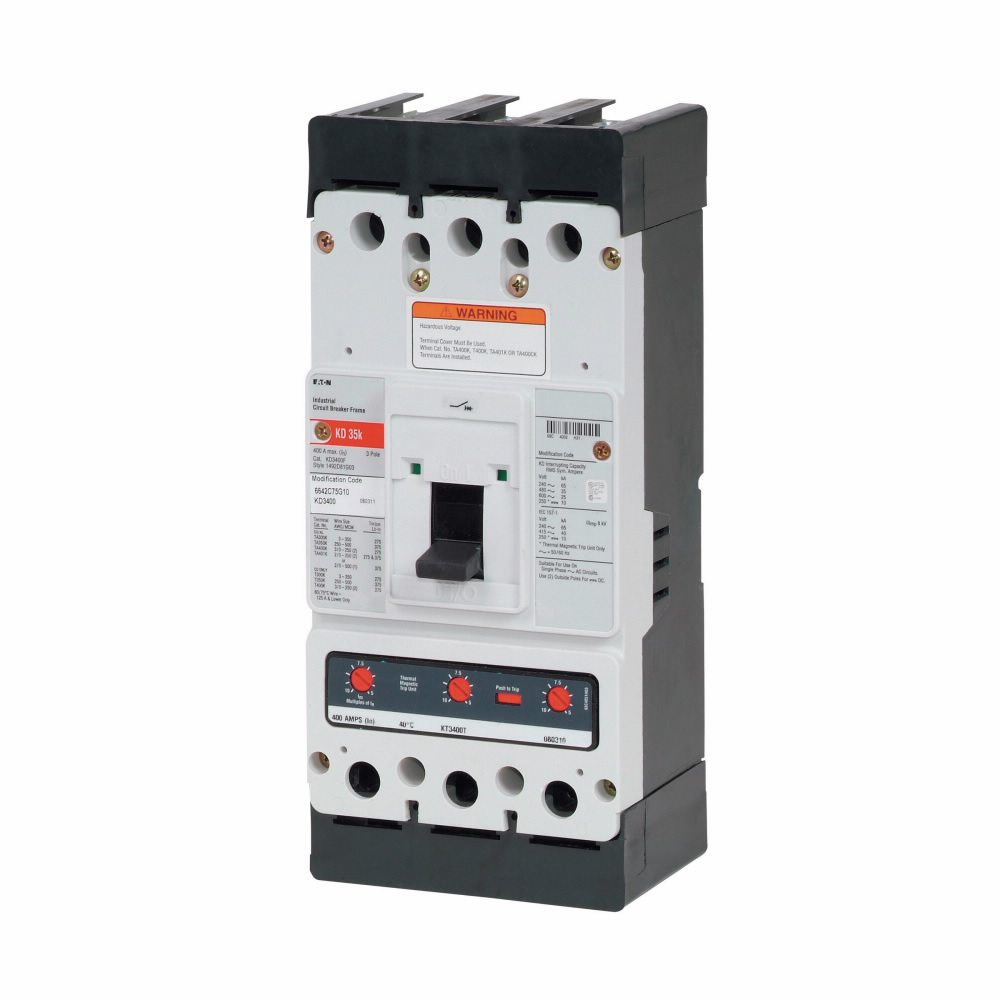

Eaton Series C Complete Molded Case Circuit Breaker, 200 A, Three-pole

The Eaton Series C complete molded case circuit breaker is designed for reliable overcurrent protection in electrical distribution systems. This K-frame, 200-ampere, three-pole breaker supports applications up to 600 Vac and 250 Vdc with a 35 kA interrupting capacity at 480V. It features an interchangeable electronic trip unit, providing flexible and precise circuit protection. Suitable for electrical distributors and switchgear suppliers, this breaker is ideal for industrial and commercial power distribution and control panels.

Specifications

• Manufacturer: Eaton
• Frame: K
• Amperage: 200 amperes
• Circuit Breaker Type: KD
• Poles: Three-pole
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 35 kAIC at 480V
• Dimensions (W x H x L): 5.5 in x 5.5 in x 4.1 in
• Product Weight: 11.5 lbs
• Manufacturer Part Number: KD3200
• UPC: 786679349144

Features

• Interchangeable electronic trip unit for enhanced protection and versatility
• Complete molded case design for robust circuit protection
• Compatible with Eaton’s motor operators for local and remote switching capabilities
• Compact dimensions reduce panel space requirements
• Designed to meet industry standards for industrial and commercial electrical distribution
