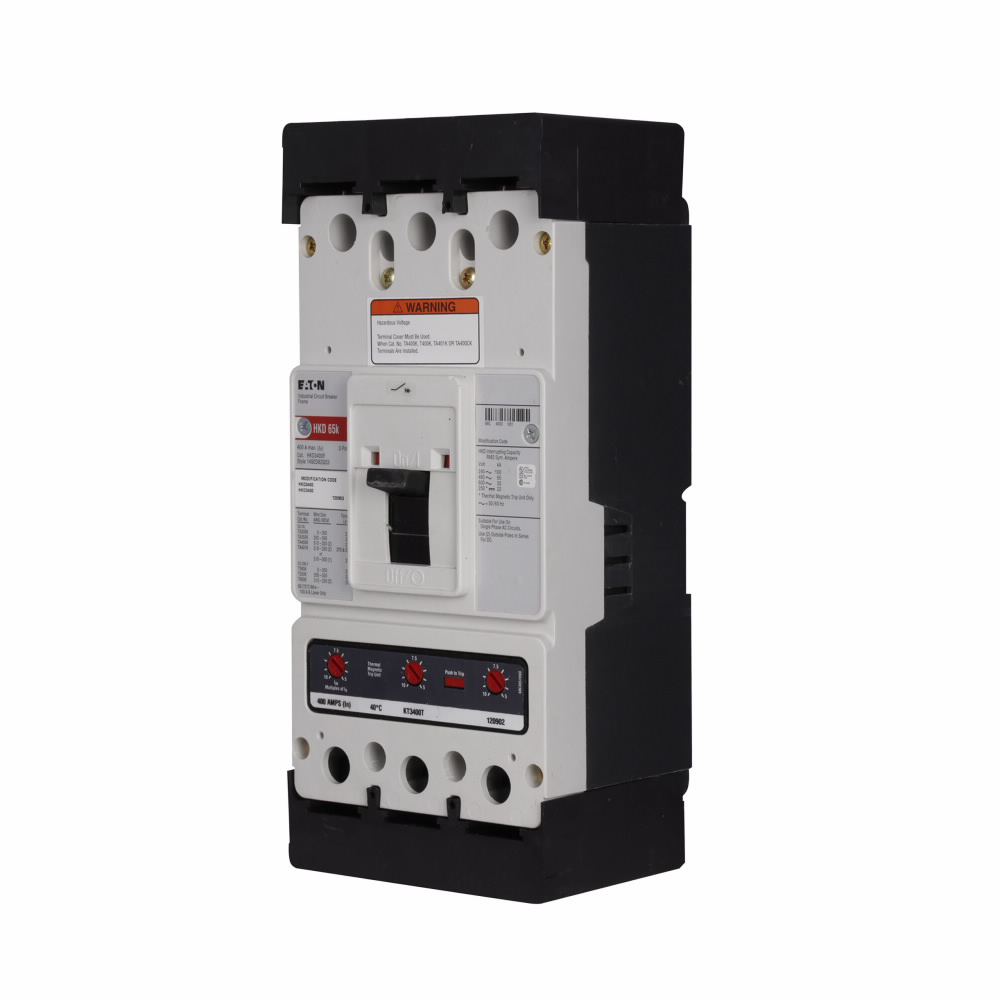

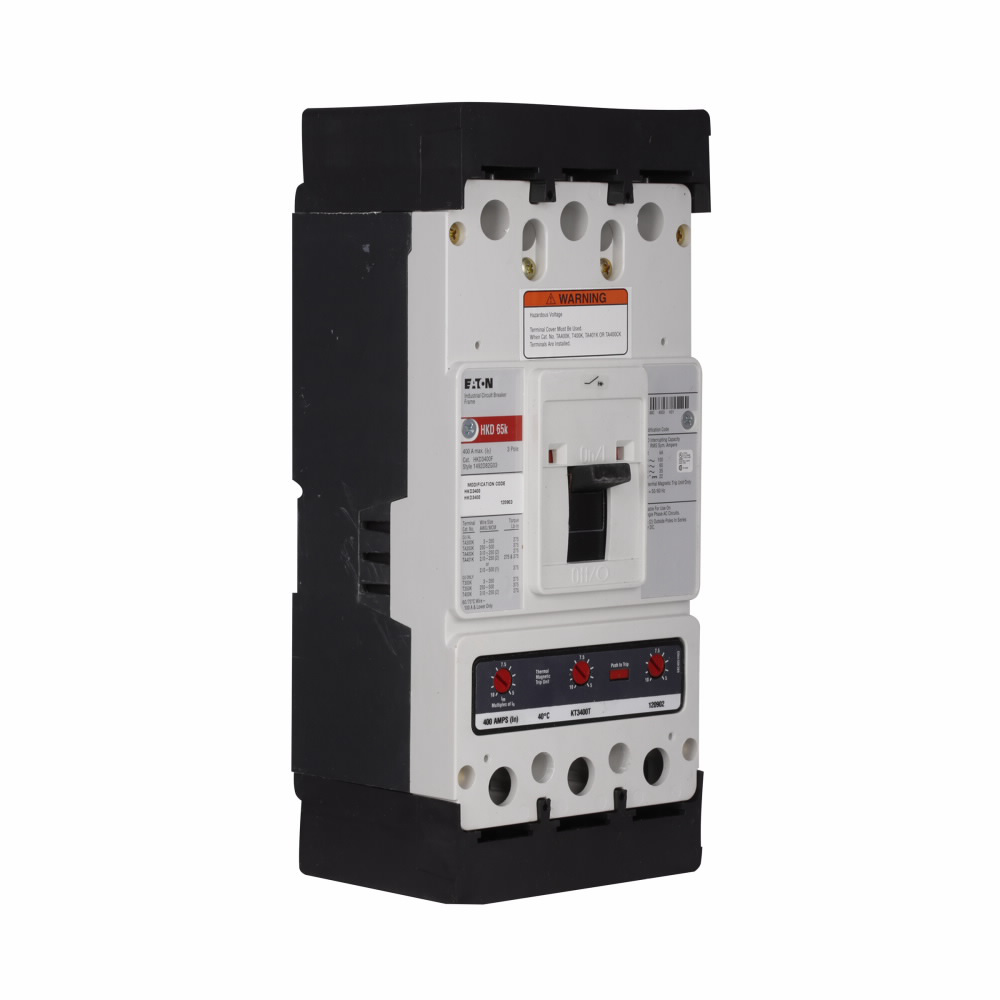

Eaton Series C complete molded case circuit breaker, K-frame, HKD, Fixed thermal, Fixed magnetic trip, Three-pole, 225 A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz
SKU: #391686
Part: #HKD3225
UPC: 786679009598
Eaton Series C complete molded case circuit breaker, K-frame, HKD, Fixed thermal, Fixed magnetic trip, Three-pole, 225 A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz
SKU: #391686
Part: #HKD3225
UPC: 786679009598
Description
Eaton Series C complete molded case circuit breaker, K-frame – Circuit Breaker
The Eaton Series C complete molded case circuit breaker, K-frame, is a robust electrical protection device designed for industrial and commercial applications. It provides reliable overcurrent protection with fixed thermal and magnetic trip settings, suitable for use in switchgear assemblies and electrical distribution systems. This three-pole breaker supports 225 amperes at 600 Vac and 250 Vdc, with a high interrupting rating to ensure safe operation under fault conditions. It is constructed with aluminum for line and load connections and operates at 50/60 Hz, making it compatible with various electrical distributor and lighting solutions requiring dependable wire and cable protection.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: HKD3225
- Frame: K
- Amperage: 225 amperes
- Poles: Three-pole
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupt Rating: 65 kiloamps (kAIC) at 480 Vac, 100 kAIC at 240 Vac
- Material: Aluminum
- Dimensions (W x H x L): 5.5 in x 5.5 in x 4.1 in
- Frequency: 50/60 Hz
- Product Weight: 11.6 lbs
- Line and Load Connections
Features
- Fixed thermal and fixed magnetic trip units for consistent protection
- Three-pole design for balanced three-phase circuit protection
- High interrupting capacity for handling fault currents up to 65 kA at 480 Vac and 100 kA at 240 Vac
- Aluminum construction for durability and reliable electrical conductivity
- Compact size suitable for integration in switchgear and panelboards
